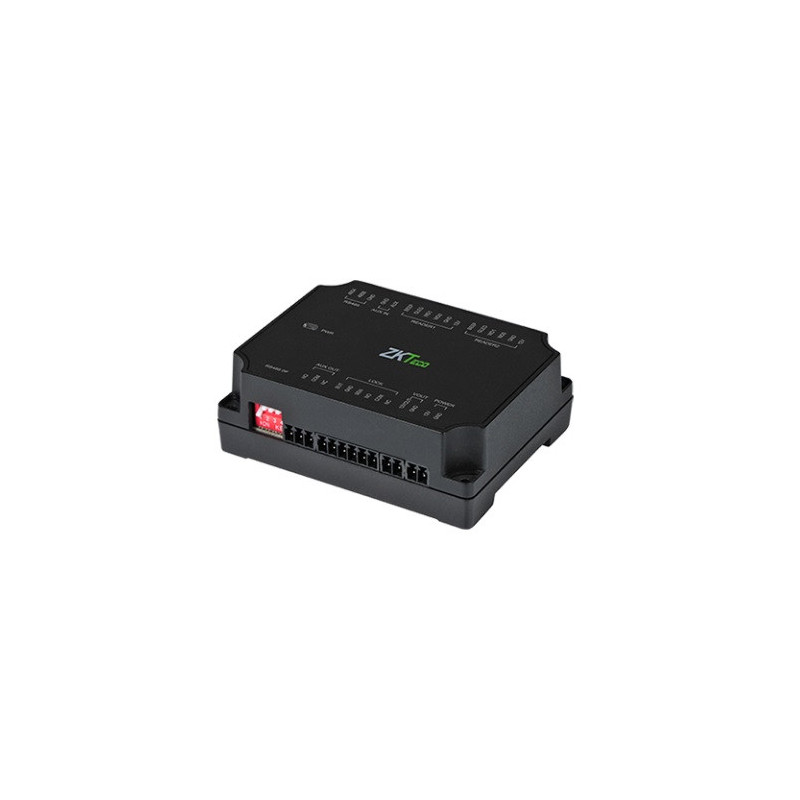

ZKTECO Single door additional controller DM10

ZKTECO Single door additional controller DM10
Features:

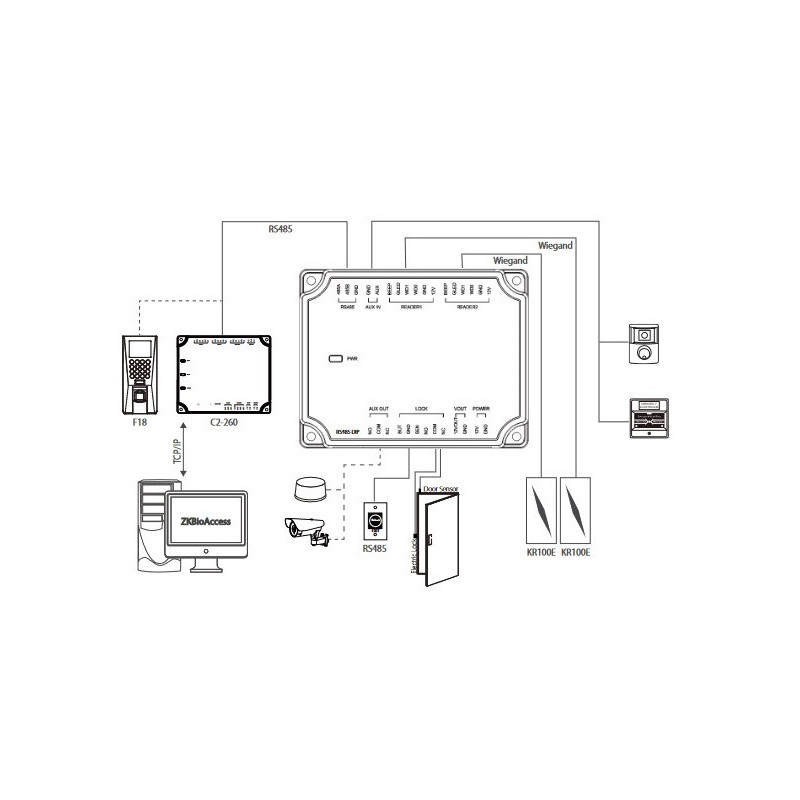

• DM10 is a door lock expansion controller that works with access control devices that can connect via RS485, such as F18, Horus, C2-260.


• This door controller does not record any user information, it only controls the lock. All data is processed in the access control devices.


• With its help, control can be expanded to 8 doors.

Technical data:

• Number of doors supported: 1.


• Number of supported readers: 2 (Wiegand).


• Communication interface: RS485.


• Power supply: 12V (input and output).


• Lock jutiklis:1.


• Exit mygtukas:1.


• Inputs: 3 (for exit button, door sensor, aux input).


• Relays: 2 (for lock and aux output).


• Dimensions: 91.88x71.91x32.27mm.


• Operating temperature: 0°C~ +45°C.


• Operating humidity: 20%-80%RH.
