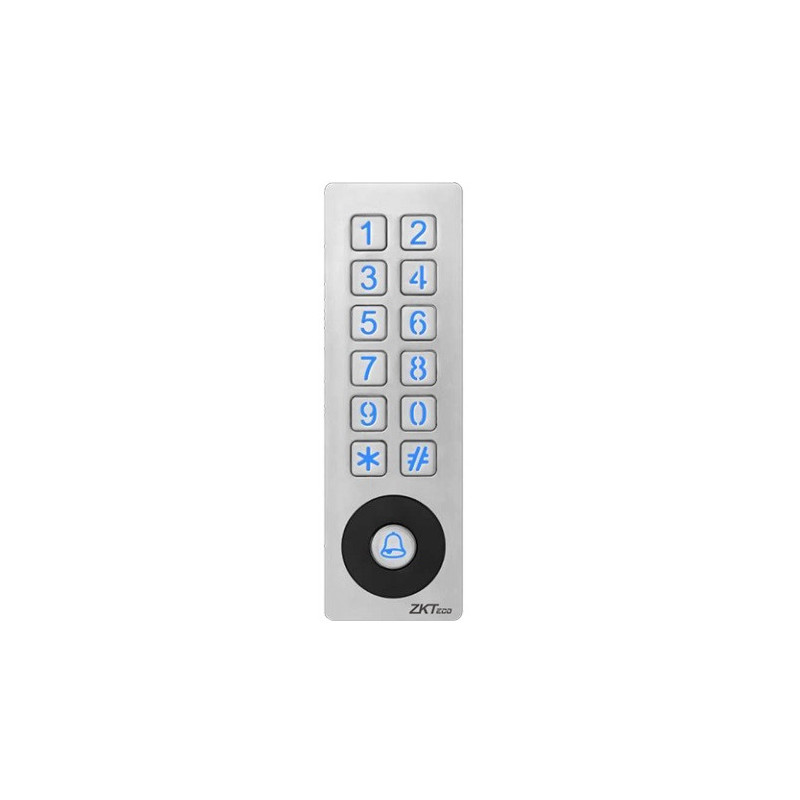

ZKTECO RFID card reader and keyboard with integrated controller, 13.56MHz Mifare, IP65, PRO-V

Multifunctional keyboard with RFID card reader and integrated controller, 13,56MHz Mifare, Wiegand, IP65.
Features:

• This is a compact standalone access control with a keypad and a proximity card reader.


• Supports user authentication with RFID cards or 4-6 digit passwords (5000 passwords supported).


• Programmable control delay, lock opening duration, alarm delay from 0 to 254sekundžių.


• The metal body, adapted to extreme weather conditions -10°C~+60°C temperatures, has IP65 water and dust resistance, suitable for outdoor or indoor use.

Technical data:

• Number of users: 5000.


• Operating frequency: 13,56MHz Mifare.


• Protocol: Wiegand 26/34bit.


• Voltage: 9-14V DC..


• Exit mygtukas:1.

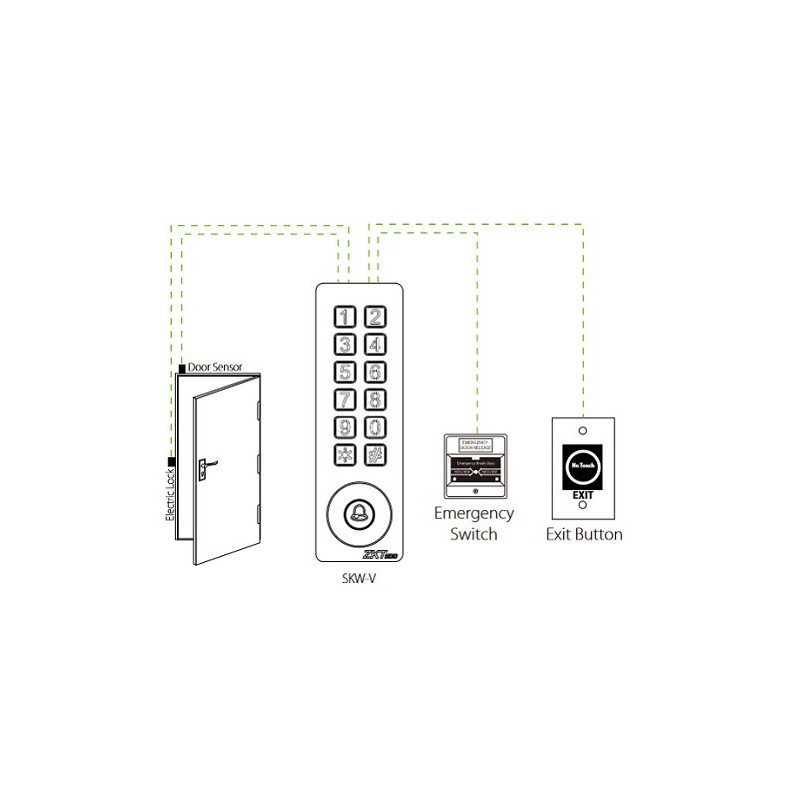

• Inputs: 3 (exit button, door sensor, aux input).


• Relays: 2 (for lock and aux output).


• Security class: IP65.


• Operating temperature: -10°C~+60°C.


• Relative humidity: 15% - 90%RH.


• Dimensions: 60 x 50 x 20.5 mm.
