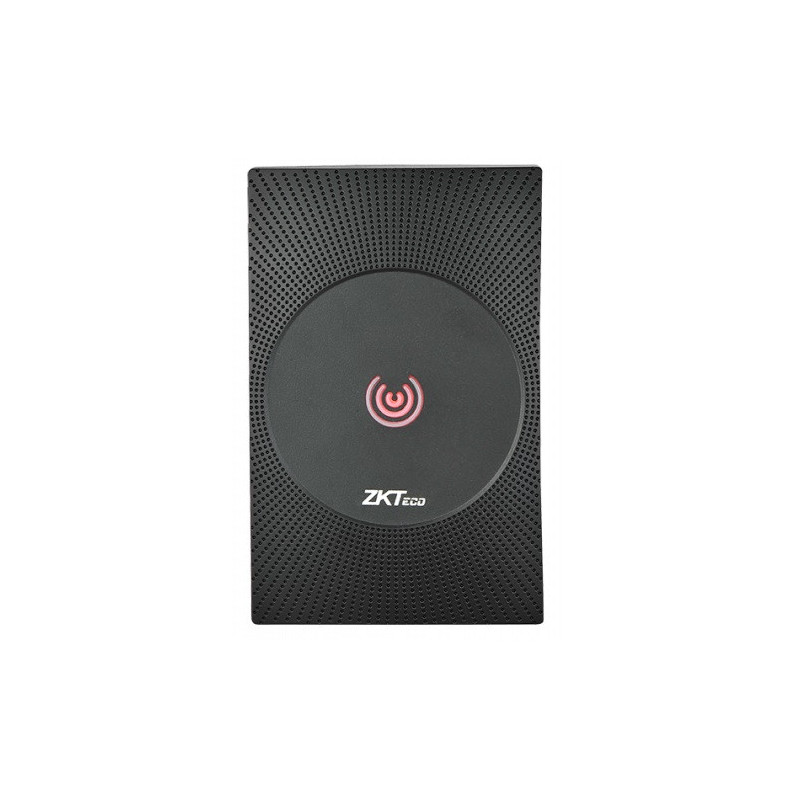

ZKTECO Proximity card reader 13.56MHz (Mifare, Desfire), Wiegand 66, KR610D

ZKTECO Proximity card reader 13.56MHz (Mifare, Desfire), Wiegand 66, KR610D
Proximity card reader 13.56MHz (Mifare, Desfire), Wiegand 66bit.
Features:

• 13.56 MHz ISO14443A card reader, suitable for Mifare and Desfire cards.


• The reader is easy to connect and install, and it is easily mounted on a metal door frame.


• Supports the ability to control one door from both sides. LED (green, red) indicator shows whether entry is allowed/not allowed.

Technical data:

• Operating frequency: 13.56 MHz.


• Compatible with: Mifare, Desfire.


• Scanning distance: up to 5 cm.


• Scanning speed: up to 300ms.


• Output protocol: Wiegand 66bit.


• Srovė:<70mA.


• Voltage: 6-14V DC.


• Security class: IP65.


• Material: ABS, PC.


• Operating temperature: -20°C~+65°C.


• Operating humidity: 10% - 90%RH.


• Dimensions: 75 x 116 x 16mm.


• Cable length: 1.5m.
