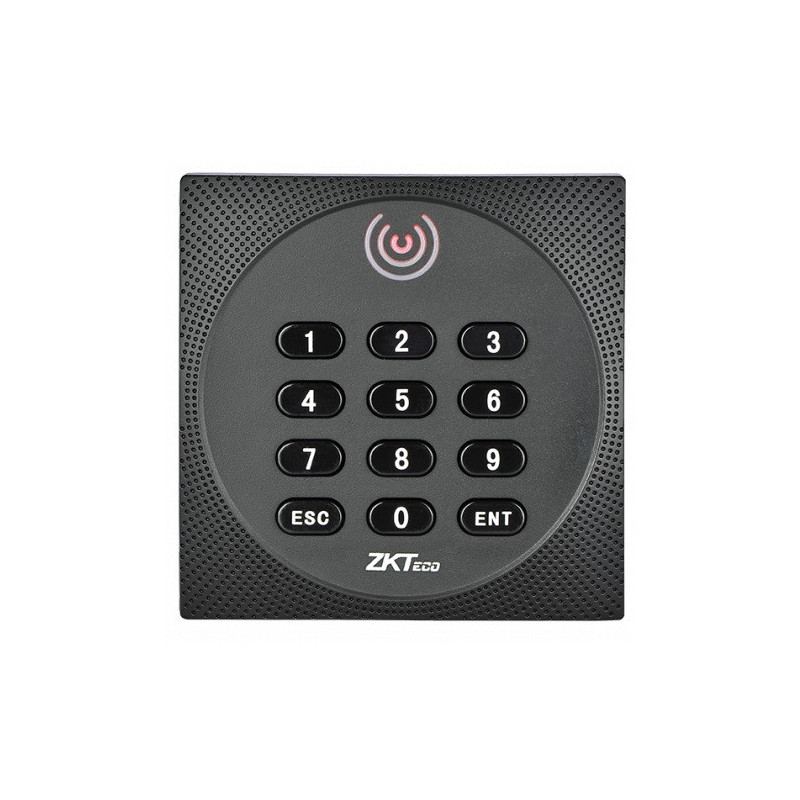

ZKTECO Proximity card reader 13.56MHz (Desfire), Wiegand 34 / 66

ZKTECO Proximity card reader 13.56MHz (Desfire), Wiegand 34/66
Features:

• 125KHz / 13.56 MHz ISO14443A card reader.


• The elegant and robust design of the reader is easy to connect and install, and it is easily mounted on a metal door frame.


• It is water resistant to IP64, and the operating temperature can range from -20°C to +65°C, making it suitable for use both indoors and outdoors.

Technical data:

• Operating frequency: 125 kHz / 13.56 MHz.


• Scanning distance: up to 4.5 cm (125 kHz) / 5 cm (13.56 MHz).


• Scanning speed: up to 300ms.


• Protocol: Wiegand 34/66bit.


• Srovė:<70mA.


• Voltage: 6-14V DC.


• Safety class: IP64.


• Operating temperature: -20°C~+65°C.


• Operating humidity: 10% - 90%RH.


• Dimensions: 86 x 86 x 20 mm.
