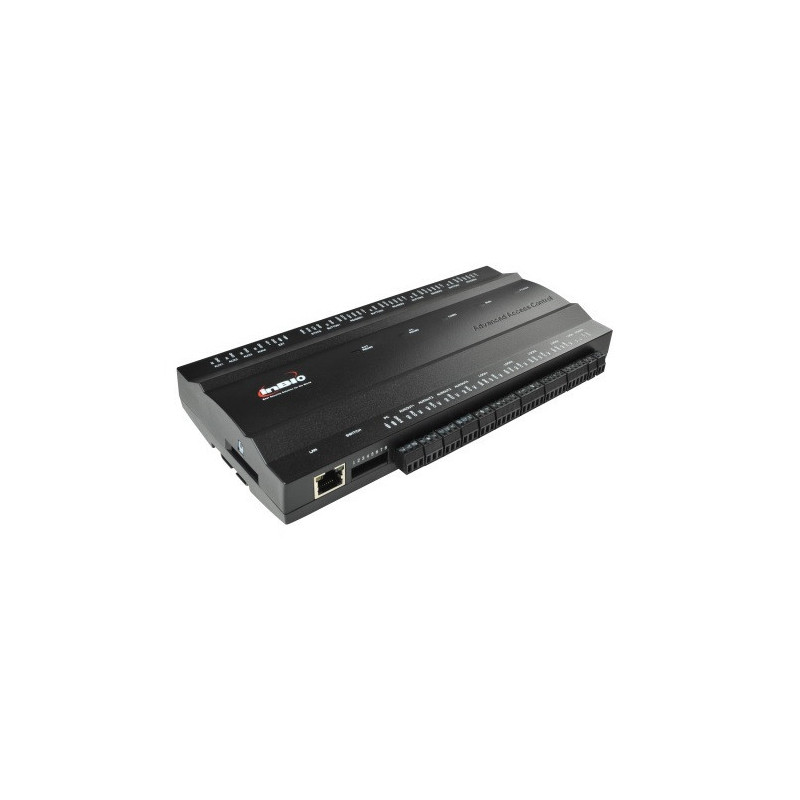

ZKTECO Four-door access controller INBIO460

ZKTECO Four-door access controller INBIO460

Features:

• An access controller with unique features such as fingerprint verification and advanced access control functions that can be managed via TCP/IP communication over LAN or WAN networks.


• By connecting a FR1300 RS485 reader, the controller can authenticate users with multiple verification modes, such as fingerprint, card, and password, to ensure a higher level of security.

Technical data:

• Number of users: 30,000.


• Event database capacity: 100,000.


• Fingerprint capacity: 3,000.


• Number of doors supported: 4.


• Number of supported readers: 12 (8x RS-485 readers, 4x Wiegand 26bit).


• Reader types: 26bit Wiegand, RS-485 FR series.


• Inputs: 12 (4x exit buttons, 4x door sensors, 4x aux input).

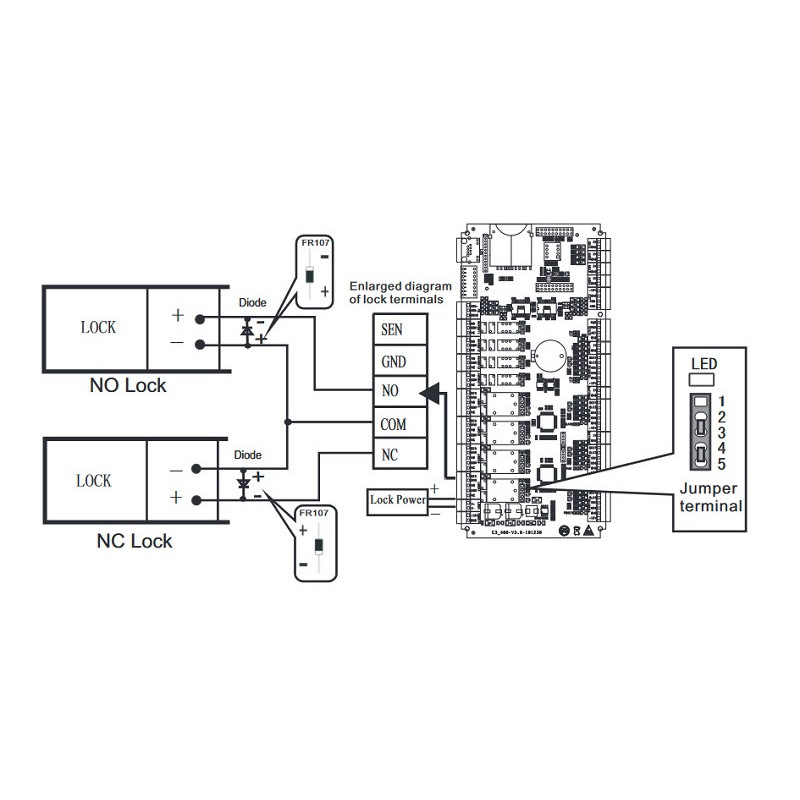

• Relays: 8 (4x for lock + 4x aux output).


• Connections: TCP/IP; RS-485.


• Processor: 400MHz 32bit CPU.


• Memory: RAM 32MB / Flash 128MB.


• Power supply: 9.6V-14.4V DC.


• Weight: 3.7 kg.


• Mounting: on the wall.


• Dimensions: 350x90x300 mm.


• Operating temperature: 0°C~ +45°C.


• Operating humidity: 20%-80%RH.
