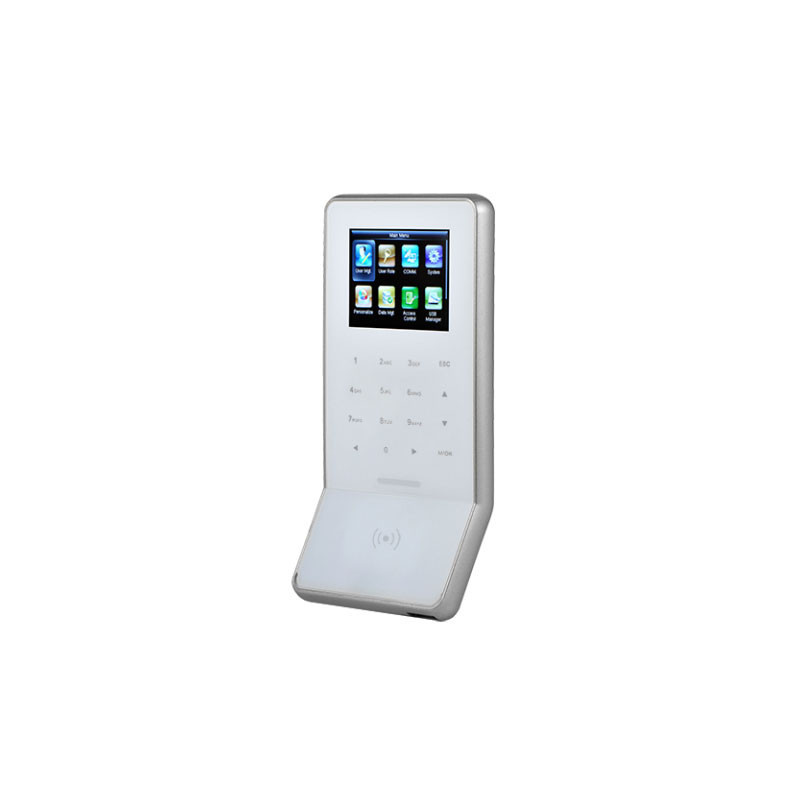

ZKTECO door controller, touch keyboard. Mifare card reader

ZKTECO Door controller with card reader and keyboard, with timekeeping; Mifare, white, LAN, Wi-Fi.
Features:

• Ultra-slim and elegant design.


• Touch keyboard. Card reader Mifare ISO14443A.


• Time accounting and access control.

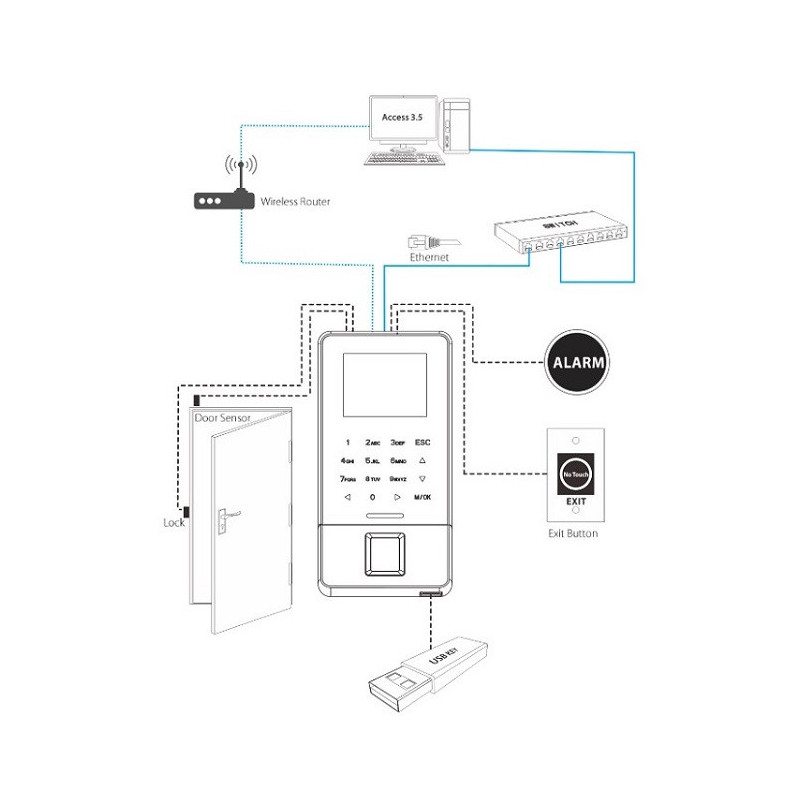

• Can be installed standalone or with any third-party controller that supports the standard Wiegand standard.


• The device can be used in various networks, controlled via TCP/IP connection via LAN, Wi-Fi.


• Built-in aux input, providing more options for linking to a wired detector or emergency switch.

Technical data:

• Number of cards: 5,000.


• Event database capacity: 30,000.


• Display: 2.4 inch TFT LCD color.


• Number of doors supported: 1.


• Operating frequency: 13.56 MHz.


• Protocol: Wiegand.


• Communication interfaces: RS232 / RS485.


• Inputs: 3 (exit button, door sensor, aux input).


• Relay: 1 (for lock).


• Connections: TCP/IP, USB-host, Wi-Fi.


• Power supply: 12V DC, 3A.


• Mounting: on the wall.


• Dimensions: 158.5x78x19.4 mm.


• Operating temperature: 0°C~ +45°C.


• Operating humidity: 20%-80%RH.
