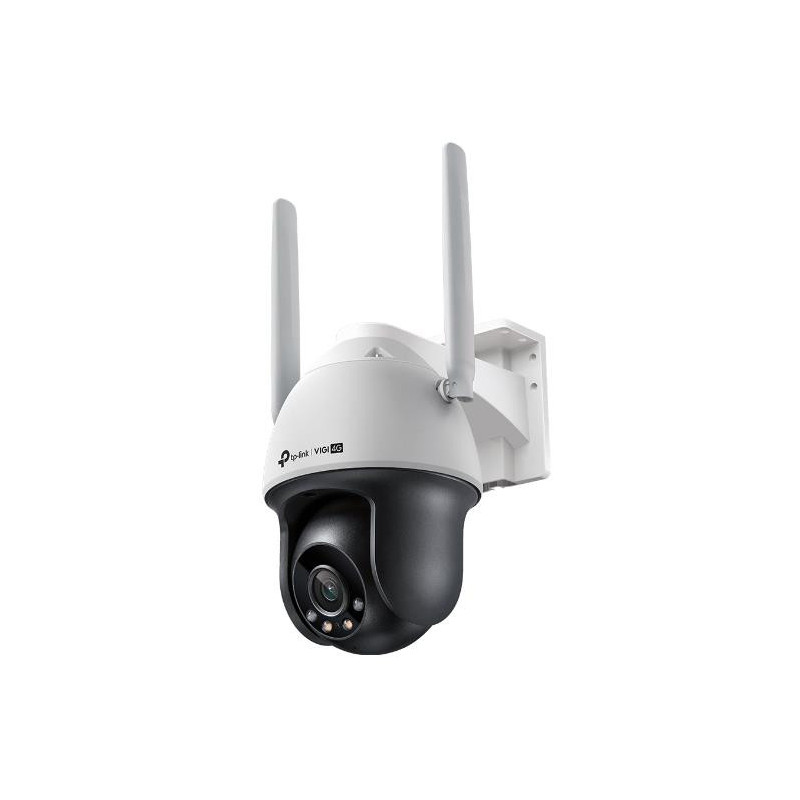

WRL CAMERA 4MP PAN / TILT / VIGI C540-4G(4MM) TP-LINK
Product reference: 2-4895252504910

WRL CAMERA 4MP PAN / TILT / VIGI C540-4G(4MM) TP-LINK

Product reference: 2-4895252504910
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
311,44 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
3 - 5
business days

Your message has been successfully sent!
Fill in the required fields*

Clarity and Colors, All in One
Experience clear, vibrant 24-hour monitoring, even in total darkness, with the VIGI Full-Color camera. Its 4MP resolution, large-aperture
lens, high-sensitivity sensor, and supplemental lights deliver comprehensive, colorful surveillance.

Network Anywhere You Need It
No need to connect network cables. Just insert a Nano-SIM card, then your camera is ready to connect to a 4G LTE network. Enjoy hassle-free installation and simple monitoring in places where the internet is not available, such as farms, forests, and construction sites.

Powerful Pan Tilt
Cover every corner flexibly with VIGI's Pan Tilt camera. Customized patrol routes provide more intelligent and quick options to monitor key areas (up to 8 points for each route), reducing manual costs for adjusting pan & tilt angles repeatedly.

Human & Vehicle Classification
Integrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications.

Automatic Tracking
Automatically tracks persons or vehicles of interest and provides seamless and longer video. This way, you will better understand what's happening and take action without wasting time on irrelevant footage.

Smart Detection for Efficient Monitoring
By setting the detection rules in advance, VIGI AI-powered cameras can accurately capture various abnormal events. This will greatly reduce false alarms and cover your specified monitoring needs in different scenarios.

Active Defense
Warn potential intruders off instantly with sound and light to pro-actively protect your property, even while away from the scene.

Two-Way Audio
With voice intercom support, carry two-way conversations while watching your feed from anywhere.

Smart Video Coding by H.265+
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

Remote Management
Take full control over your security anytime and anywhere on the VIGI app or client.

One system. Full security.
Run your business with peace of mind.
The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you've worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.

  • 4MP Super-High Definition: The camera comes with 4MP-more than enough pixels to pick up some of the more discrete details
  • 24h Full-Color: Experience clear, vibrant 24-hour monitoring, even in total darkness
  • 4G Mobile Networking: Enjoy hassle-free installation and simple monitoring in places where the internet is not available
  • 360° Monitoring: Cover every corner and eliminate blind spots
  • Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications
  • Smart Detection: Actively detects abnormal events like area intrusion and line-crossing, sending notifications to you instantly
  • Automatic Tracking: Automatically tracks persons or vehicles of interest and provides seamless and longer video
  • Active Defense: Warn potential intruders instantly with sound and light when abnormal events
  • Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere
  • H.265+: Compresses the video size without sacrificing video quality, easing the network load and saving disk space
  • IP66 Waterproof: Reliable IP66 for stable outdoor performance
  • Remote Management: Take full control over your security anytime and anywhere on the VIGI app or PC client
  • Onboard Storage: Support on-board storage up to 256 GB (SD card slot)

3D padėties nustatymas Taip
3G standartai WCDMA
4G standartai LTE-TDD & LTE-FDD
Apsauginis slaptažodis Taip
Aptikties atstumas 80 m
Apšvietimo LED diodų skaičius 4
Asimiliuotasis autentifikavimas Taip
Atitikties sertifikatai CE/RoHS
Atpažinimo atstumas 16 m
Atstatymo mygtukas Taip
Aukštis 201 mm
Automatinis degalų režimas Taip
Bandinių ėmimo dažnis 8 kHz
Bitų sparta 256 Kbps - 4 Mbps
Bitų spartos kontrolė Constant Bit Rate (CBR),Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Bruto svoris 1.21 kg
Darbo santykinės drėgmės diapazonas 0 - 95 %
Darbo temperatūros diapazonas (TT) -30 - 60 °C
DC išeigos įtampa 12
Dienos / nakties režimas Taip
Elgsenos analizė Intrusion detection,Line crossing detection
Eterneto sąsajos tipas Greitas eternetas
Ethernet LAN (RJ-45) portų kiekis 1
Ethernet LAN jungtis Taip
Forma Bokštelis
Fotoaparatų skaičius 1
Gyvas matymas Taip
HTTPS kodavimą Taip
Identifikavimo atstumas 8 m
Ilgis 182 mm
Infraraudonųjų spindulių (IR) atjungimo filtras Taip
Integruotas kietasis diskas Ne
Integruotas kortelių skaitytuvas Taip
IP adreso filtravimas Taip
Iš viso megapikselių 4 MP
Išplėstinis dinaminis diapazonas (WDR) Taip
Jutiklio tipas CMOS
Kadrų sparta 30 fps
Kameros pakėlimo valdymas Taip
Kameros panoramavimo valdymas Taip
Kameros užrakto greitis 1/3 - 1/10000 s
Korpuso medžiaga Plastikas
LED tipas Infraraudonieji / balti
Lęšio skersmuo 4 mm
Lęšių skaičius 1
Maitinimo šaltinio tipas DC
Maksimali rezoliucija 2560 x 1440 pikseliai
Maksimalus apertūros skaičius 1.6
Maksimalus atminties kortelės dydis 256 GB
Minimalus apertūros skaičius 1.6
Model name C540-4G
Montavimo rinkinys Taip
Montavimo tipas Lubos / siena
Naktinio matymo atstumas 30 m
Naktinis matymas Taip
Neto svoris 0.69 kg
Objektyvo vaizdo kampas, horizontalus 80 °
Objektyvo vaizdo kampas, vertikalus 43 °
Objektyvo vaizdo kampas, įstrižainė 94 °
Optinio sensoriaus dydis 1/3.06 "
Pagrindinis įvykis Motion Detection, Camera Tampering Detection, Exception
Paketo svoris 1160 g
Pakuotės aukštis 243 mm
Pakuotės gylis 213 mm
Pakuotės plotis 163 mm
Palaikomi tinklo protokolai TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Palaikomos grafikos rezoliucijos 1920 x 1080 (HD 1080)/2048 x 1280/2304 x 1296/2560 x 1440/320 x 240/352 x 288/640 x 480 (VGA)
Panoramavimo greitis 44 °/sec
Pažangios vaizdo stebėjimo (IVS) sistemos savybės Žmonių aptikimas
Plotis 120 mm
Posvyrio kampo intervalas 0 - 120 °
Priartinimo galimybė Taip
Privatumo maskavimas Taip
Privatumo maskavimo sričių skaičius 4
Produkto spalva Balta/Juoda
Ryšio technologija Vielinis
Sandėliavimo santykinis drėgmės diapazonas 0 - 95 %
Sandėliavimo temperatūros norma (T-T) -40 - 60 °C
Sertifikavimas RCM, BSMI, VCCI, NTRA, KC
Shipping Box Depth 24 cm
Shipping Box Height 24.5 cm
Shipping Box Weight 1.21 kg
Shipping Box Width 16 cm
Signalo ir triukšmo santykis (SNR) 52 dB
SIM kortelės anga Taip
SIM kortelės tipas "NanoSIM"
Skaitmeninis platus dinaminis diapazonas (DWDR) Taip
Spartos bitais intervalas 64 - 64 Kbit/ai
Stebėjimo atstumas 33 m
Suderinamos atminties kortelės MicroSD (TransFlash)
Summary TP-Link VIGI C540-4G. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Turret. Lens viewing angle, horizontal: 80°, Lens viewing angle, vertical: 43°, Lens viewing angle, diagonal: 94°. Sensor type: CMOS, Optical sensor size: 25.4 / 3.06 mm (1 / 3.06"). Detect distance: 80 m, Observe distance: 33 m, Recognize distance: 16 m
Svoris 690 g
Talpinimas palaikomas Vidaus ir lauko
Tarptautinės apsaugos (IP) kodas IP66
Tilt greitis 44 °/sec
Tipas IP apsaugos kamera
Triukšmo mažinimas Taip
Triukšmo sumažinimo technologija 3D triukšmo mažinimas
Unit Box Height 0.245
Unit Box Length 0.24
Unit Box Width 0.16
Unit Brutto Volume 0.009408 cubm
Vaizdo kokybės koregavimas Aštrumas/Kontrastas/Prisotinimas/Ryškumas/Veidrodis
Vaizdo transliavimas Taip
Veidrodis Taip
Vendor Homepage https://www.tp-link.com/my/business-networking/vigi-network-camera/vigi-c540-4g/#overview
Video suspaudimo formatai H.264/H.264+/H.265/H.265+
Vienalaikių tiesioginio vaizdo kanalų skaičius 3 kanalai
Vieneto aukštis 24.5 cm
Vieneto gylis 24 cm
Vieneto plotis 16 cm
Vienetų skaičius vienoje siuntimo dėžėje 1
Viso diapozonas 0 - 348 °
Įmontuotas mikrofonas Taip
Įmontuoti garsiakalbiai Taip
Šviesos srautas 0.005 lm
