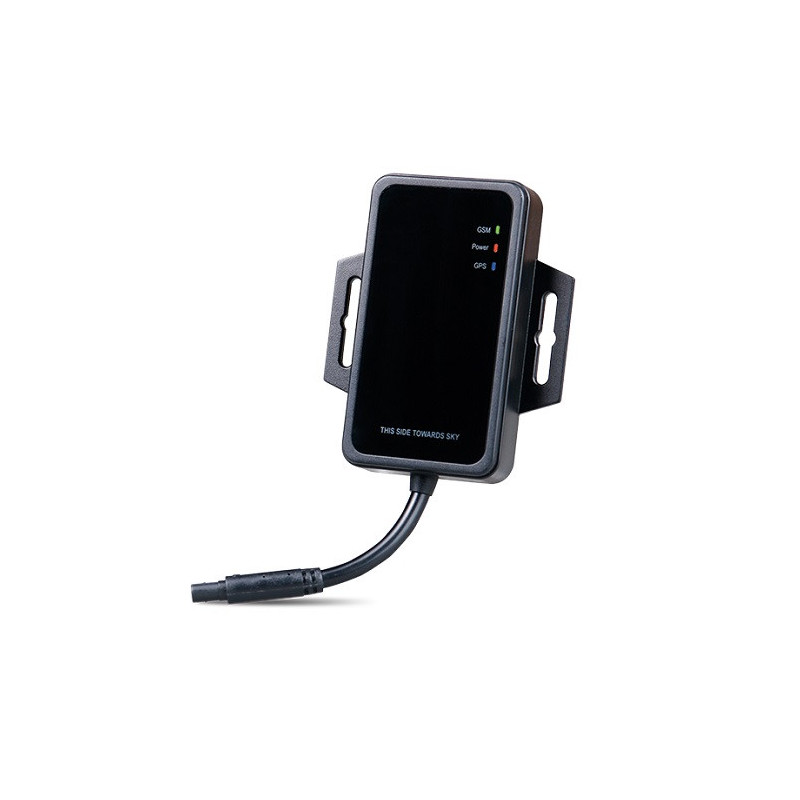

Vehicle GPS tracking device VG01U

Vehicle GPS tracking device VG01U.
Features:
Compact GPS tracking device with integrated INS (inertial navigation system), allowing for quick and stable location and position determination in areas with poor GPS signal, such as underpasses, city centers, tunnels, etc.
Its integrated algorithm allows managers or insurance providers to capture and analyze detailed driver behavior.
VG01U has 8 types of professional driver behavior analysis: warning of sudden acceleration, sudden braking, sudden turn, sharp lane change, warning of accident, rolling, vehicle skidding, unusual vehicle angle deviation.
Technical data:

• GSM


• GSM frequency: 850/900/1800/1900MHz.


• GPRS: Class 12, TCP/IP.


• Chipset: GPS+INS.


• Frequency: L1.


• Memory: 32+32Mb.


• Positioning accuracy: lt;2.5m CEP.


• Location detection: lt;10 meters.


• Tracking sensitivity: -162dBm.


• Minimum signal level required at the set point during cold start: -148dBm.


• Time to first fix (TTFF):


• Coordinate acquisition time, kai time and last location coordinate is known (hot start) lt;1 sec.


• Coordinate acquisition time, kai initial coordinate and time are unknown (cold start) lt;32 sec.


• Other technical data:


• Battery: 270 mAh / 3.7 V industrial grade lithium polymer battery.


• Operating voltage / current: 9-36V DC / 38mA (12V DC).


• Standby time: 28 hours.


• Working time: 1.5 hours.


• LED: GPS (blue), GSM (green), power (red).


• Integrated GPS ceramic antenna; quad-frequency GSM antenna.


• Operating temperature: from -20°C to +70°C.


• Sensor: accelerometer, gyroscope.


• Size: 80 x 67 x 16 mm.


• Weight: 63g.


• Safety class: IP65.


• Driving behavior analysis: sudden acceleration, sudden braking, sudden turn, sudden lane change, collision, skid, rollover.


• Scenarios: vibration alert, vehicle movement alert, speeding alert, "geo-fence", SOS call, power failure.
