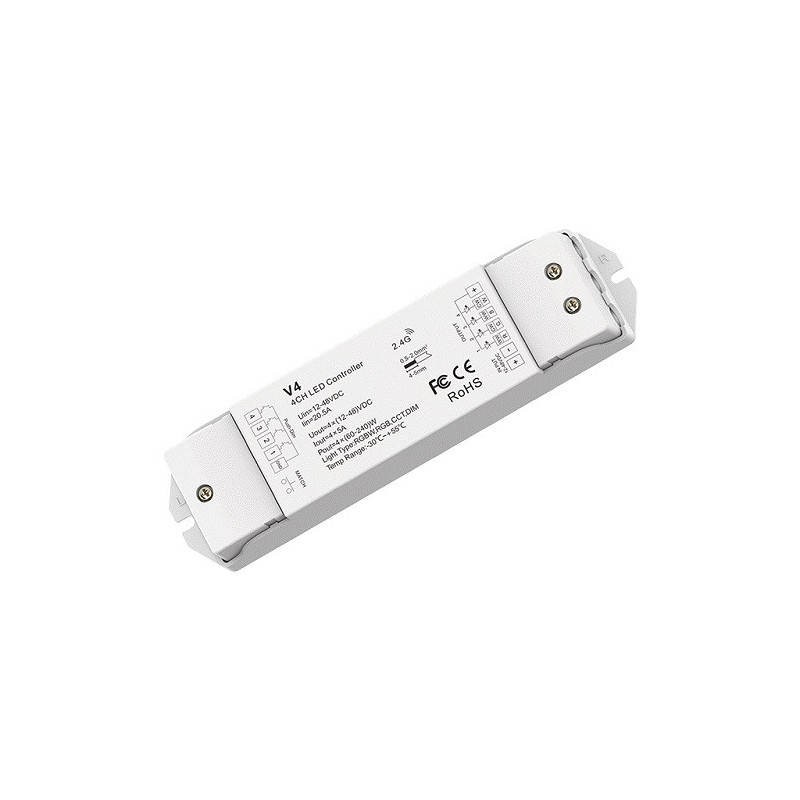

V4 constant voltage RGB / RGBW / CCT controller 12-48V, 4x5A, + Push DIM

V4 constant voltage controller 12-48V DC 4x 5A, for RGBW/RGB/CCT LED strips, 4 channels
Features:

• Supports lighting systems: single color (1-4 zones), two-color, color RGB, RGBW (color RGB+white W), variable hue CCT.


• Allows you to smoothly dim or brighten the lighting up to 4096 levels 0-100%. Compatible with dimmable LED strips / bulbs.


• Allows you to control the color temperature (warm/neutral/cool white light).


• Supports dynamic RGB color control (has 10 dynamic modes, including jump or gradual style change settings).


• Allows you to select the duration of the light on/dimming.


• Has a Push-dimm function: you can connect up to 4 regular bell-type (rebound) switches to the controller.


• Simultaneous automatic transmission: automatically transmits the signal to another controller within a distance of 30 m, synchronizes operations with other controllers (it is recommended not to exceed the number of 25 controllers).


• Has a matching button (MATCH) for connecting remote controls.


• Can be controlled with 2.4 GHz RF remote controls, wireless wall switches, and sensor switches.


• Supports control via the SkySmart smart app.


• One controller can control up to 10 remote controls. One remote control can control an unlimited number of controllers within a distance of 30 m.


• The controller uses the most advanced PWM (Pulse Width Modulation) digital control technology to control constant voltage LED lamps.


• Protection against overload, overheating, reverse polarity and short circuit.


• Certificates: CE (EMC/LVD), RoHS.

Technical data:

• Product model: V4.


• Compatibility: Skydance R1, R6-1, RT1, RU4, R6, RA1, RT6, RS1, RS6; R15, R16, R8-1, R9, RT4, R8, RT9, RS3, RS4, RS8, R21, R22; T1, T1-1, T1-K, KV, KC; T3, T3-1, T3-K.


• Number of channels: 4.


• Controlled lighting systems: single color / WW/CW / RGB / RGBW / RGB+CCT.


• Operating frequency: RF 2.4GHz.


• Supply voltage: 12V-48V DC.


• Output voltage: 12V-48V DC.


• Output current: 5A for channel.


• Power: (60-240)W for channel.


• PWM frequency: 1000 Hz.


• Grayscale: 4096 levels.


• Dimming range: 0-100%.


• Operating distance: up to 30m.


• Safety class: IP20 (not waterproof).


• Suitable wire cross-sectional area: 0.5-2.0 mm².


• Certificates: CE, EMC, LVD, RED, RoHS.


• Operating temperature: -30~+55°C.


• Dimensions: 175 x 45 x 27 mm.


• Color: white.


• Weight: 125g.
