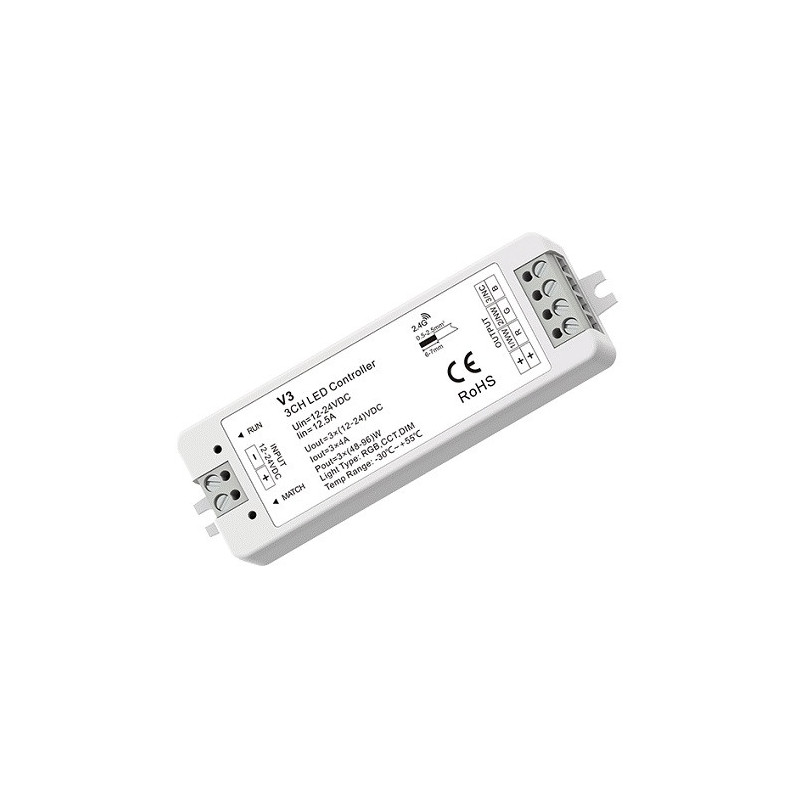

V3 constant voltage RGB controller, 12-24V, 3x 4A

V3 constant voltage controller 12-24V DC 3x 4A, RGB/CCT LED for strips, 3 channels
Features:

• Supports lighting systems: single color (1-3 zones), two-color, color RGB, changeable hue CCT.


• Allows you to smoothly dim or brighten the lighting up to 4096 levels 0-100%. Compatible with dimmable LED strips / bulbs.


• Allows you to control the color temperature (warm/neutral/cool white light).


• Supports dynamic RGB color control (has 10 dynamic modes, including jump or gradual style change settings).


• Allows you to select the duration of the gradual light on/off.


• Simultaneous automatic transmission: automatically transmits the signal to another controller within a distance of 30 m, synchronizes operations with other controllers (it is recommended not to exceed the number of 25 controllers).


• Has a matching button (MATCH) for connecting remote controls.


• Can be controlled with 2.4 GHz RF remote controls, wireless wall switches, and sensor switches.


• Supports control via the SkySmart smart app.


• One controller can control up to 10 remote controls. One remote control can control an unlimited number of controllers within a distance of 30 m.


• The controller uses the most advanced PWM (Pulse Width Modulation) digital control technology to control constant voltage LED lamps.


• Reverse polarity and short circuit protection.


• Certificates: CE (EMC/LVD), RoHS.

Technical data:

• Product model: V3.


• Compatibility: Skydance R15, R16, R8-1, R9, RT4, R8, RT9, RS3, RS4, RS8, R21, R22; T3, T3-1, T3-K.


• Number of channels: 3.


• Controlled lighting systems: RGB, CCT.


• Operating frequency: RF 2.4GHz.


• Supply voltage: 12V-24V DC.


• Output voltage: 12V-24V DC.


• Output current: 4A for channel.


• Power: (48-96)W for channel.


• PWM frequency: 1000 Hz.


• Grayscale: 4096 levels.


• Dimming range: 0-100%.


• Operating distance: up to 30m.


• Safety class: IP20 (not waterproof).


• Suitable wire cross-sectional area: 0.5-2.5 mm².


• Certificates: CE, EMC, LVD, RED, RoHS.


• Operating temperature: -30~+55°C.


• Dimensions: 97 x 33 x 18 mm.


• Color: white.


• Weight: 37g.
