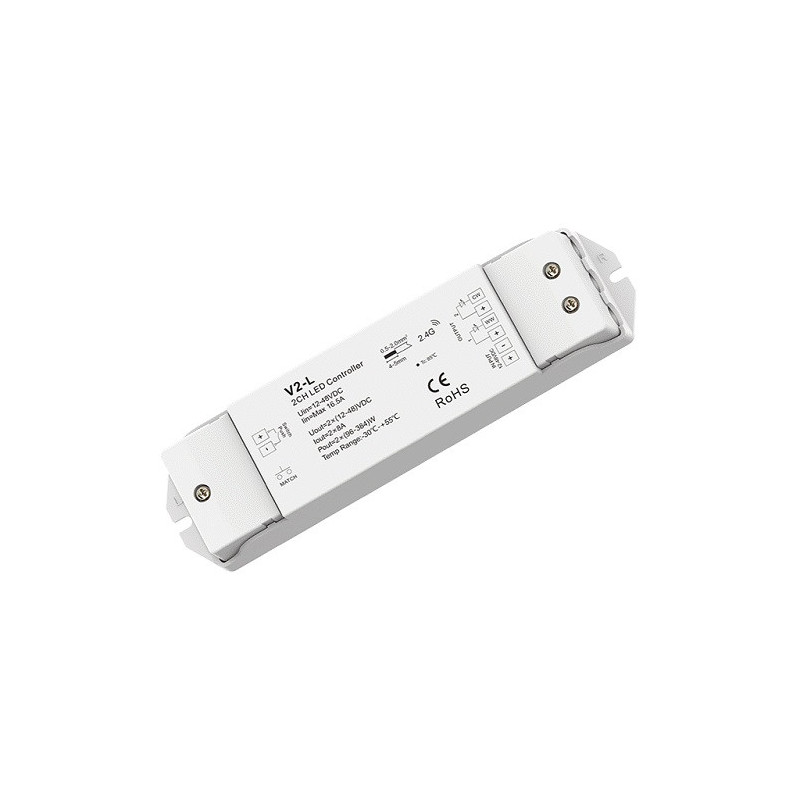

V2-L controller-receiver 12-36V DC, 2x8A

V2-L controller-receiver 12-48V DC 2x 8A, for two-color LED strips, 2 channels

Features:

• Supports lighting systems: two-color WW/CW.


• Allows you to smoothly dim or brighten the lighting up to 4096 levels 0-100%. Compatible with dimmable LED strips / bulbs.


• Allows you to control the color temperature (warm/neutral/cool white light).


• Simultaneous automatic transmission: automatically transmits the signal to another controller within a distance of 30 m, synchronizes operations with other controllers (it is recommended not to exceed the number of 25 controllers).


• Has a pairing button for connecting remote controls.


• Can be controlled with 2.4 GHz RF remote controls, pushbutton switches, and touch switches.


• Supports control via the smart app "SkySmart".


• One controller can control up to 10 remote controls. One remote control can control an unlimited number of controllers within a distance of 30 m.


• The controller uses the most advanced PWM (Pulse Width Modulation) digital control technology to control constant voltage LED lamps.


• Has Push-dimm function.


• Overload and short circuit protection.


• Certificates: CE (EMC/LVD), RoHS.

Technical data:

• Product model: V2-L.


• Compatibility: Skydance R1, R6-1, RT1, RU4, R6, RA1, RT6, RS1, RS6, R11; R15, R16, R8-1, R9, RT4, R8, RT9, RS3, RS4, RS8, R21, R22; T1, T1-1, T1-K, KV, KC; T3, T3-1, T3-K.


• Number of channels: 2.


• Controlled lighting systems: CCT.


• Operating frequency: RF 2.4GHz.


• Supply voltage: 12V-48V DC.


• Output voltage: 12V-48V DC.


• Output current: 8A for channel.


• Power: (96-384)W for channel.


• PWM frequency: 2000 Hz.


• Grayscale: 4096 levels.


• Dimming range: 0-100%.


• Operating distance: up to 30m.


• Safety class: IP20 (not waterproof).


• Suitable wire cross-sectional area: 0.5-2 mm².


• Certificates: CE, EMC, LVD, RED, RoHS.


• Operating temperature: -30~+55°C.


• Dimensions: 175 x 45 x 27 mm.


• Color: white.


• Weight: 107g.
