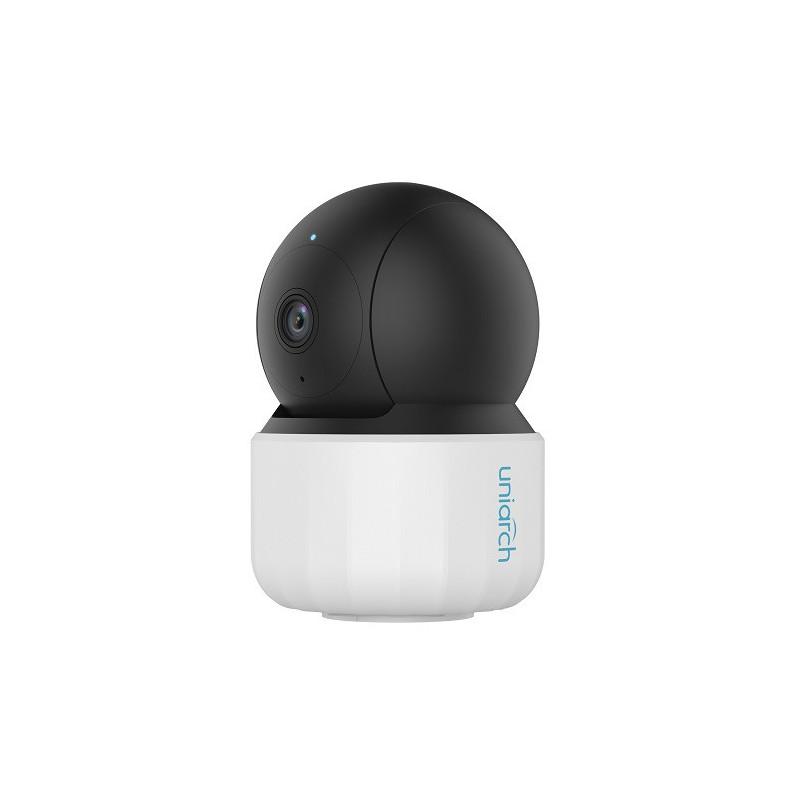

UNIARCH indoor PT camera, 3MP, Wi-Fi

Internet PT indoor camera designed to ensure the security and peace of mind of your home, office or small shop. It features 3MP resolution, two-way talk and reliable night vision up to 10 meters. Convenient power supply via USB Type-C connector. Remote access via Wi-Fi, data recording to an SD card up to 256GB.
Features:
The PT (Pause and Tilt) camera can pan horizontally up to 355° and tilt vertically up to 90° to cover all angles and leave no blind spots.
An infrared filter with automatic switch (ICR) allows you to see clearly at night up to 10 meters away.
2.4GHz Wi-Fi connection is used.
Motion detection, sound detection and human detection are supported. Auto tracking is supported.
The built-in speaker and microphone allow you to communicate remotely with children or pets at home.
One-click privacy masking is supported.
Data storage: supports micro SD(TF) card up to 256GB (card not included).
Convenient USB power supply, power adapter included. USB Type-A to USB Type-C power cable included.
The camera is lightweight, compact, and can be placed on a tabletop. It can be mounted to the ceiling using a bracket (bracket purchased separately).
The kit includes: power cable, network adapter, mounting plate and set of mounting screws.
Note: SD card is purchased separately.
Technical characteristics:
CMOS sensor: 1/3" 3MP.
Scanning system: progressive.
Lens: 4mm F2.0.
Aperture: fixed.
Viewing angle: 80.6°(H).
Max resolution: 2304x1296 pixels.
IR illumination: up to 10m.
IR wavelength: 850 nm.
IR on/off: automatic/manual.
Electronic shutter: automatic/manual, 1/4 ~ 1/100000s.
Day/night: ICR, IR-cut filter.
Min. illumination: 0.02 lux (Colour, F2.0, AGC On); 0 lux (IR on).
Horizontal range (Pan): 0-355°.
Vertical range (Tilt): 15-90°.
Pan/tilt speed: 17°/s ~ 50°/s.
Preset (label, camera settings): 20.
Video compression: Ultra 265, H.265, H.264.
Compression rate: main stream: 3MP(2304x1296)@25fps; 2MP(1920x1080)@25fps; 720P(1280x720)@25fps; sub stream: (640x360)@25fps; 2CIF(704x288)@25fps; CIF(352x288)@25fps.
Bit rate: 128 Kbps~2048 Kbps.
WDR (Wide Dynamic Range): DWDR.
S/N (signal-to-noise) ratio > 52dB.
ROI (Reference Area of ​​Interest): up to 8 zones.
Privacy masking: supported.
Noise suppression in DNA: 2D/3D DNA.
White balance: auto/outdoor/fine tuning/sodium lamp/locked/auto 2.
Image processing technology: Digital Defog.
Functions: motion detection, human detection, sound detection.
Auto tracking: supported.
Audio compression: G.711U, G.711A.
Audio data rate 64 Kbps.
Built-in microphone and speaker.
Two-way talk: supported.
Sound suppression: supported.
Micro SD card slot (supports cards up to 256GB).
Wireless network: 2.4GHz Wi-Fi (IEEE802.11b/g/n), integrated antenna.
Network protocols: IPv4, TCP, UDP, DHCP, RTSP, DNS, DDNS, NTP, HTTP.
Supported browsers: IE 10+, Chrome 45+, Firefox 52+, Edge 79+.
Network socket: 1 x RJ45 10M/100M Base-TX Ethernet.
Charging interface: USB Type-C port.
Power supply: DC 5V/ 1.5A.
Dimensions: Ø80 x 120mm (Ø 3.1" x 4.8").
Reboot button.
LED status indicator: 1, red/blue.
Operating temperature: -10°C ~ +50°C.
Operating humidity: <95%RH (non-condensing).
Weight: 0.22kg (0.49lb).
Color: white, black.
Certifications: EMC: CE EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 55035); FCC (FCC 47 CFR15 Part B). RF: FCC ID (FCC CFR 47 C Part 15 C); CE RED (EN 301 489-1, EN 301 489-17, EN 300 328, EN 62311). Safety: (EN 62368-1). Environmental: CE-RoHS (2011/65/EU; (EU) 2015/863); WEEE (2012/19/EU).
Warranty: 24 months.
