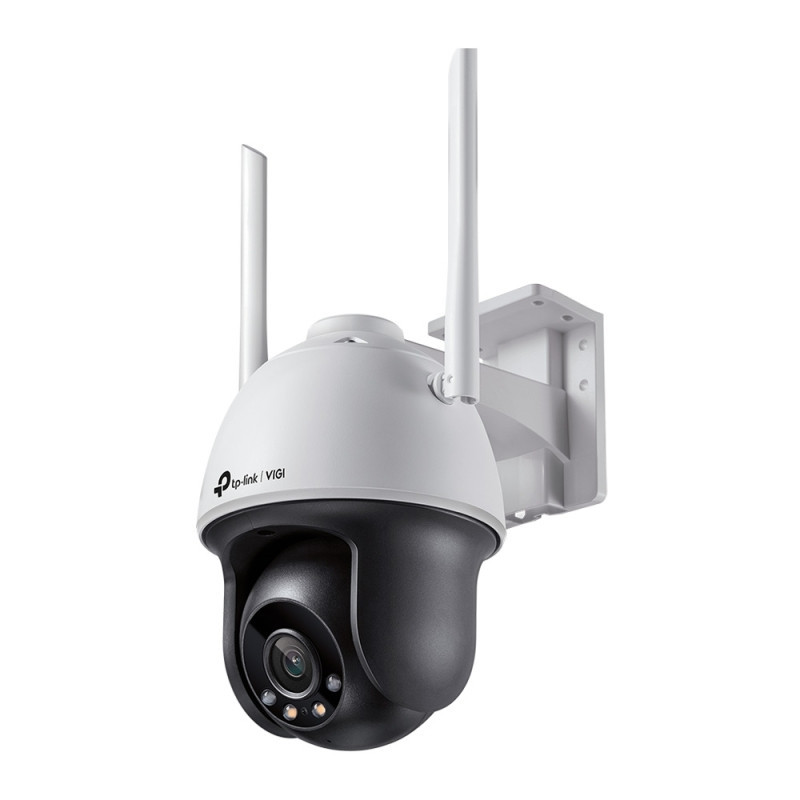

TP-LINK VIGI 4MP Outdoor Full-Color Wi-Fi Pan Tilt Network Camera, 4 mm
Product reference:
18-VIGI-C540-W-4
TP-LINK VIGI 4MP Outdoor Full-Color Wi-Fi Pan Tilt Network Camera, 4 mm
TP-LINK VIGI 4MP Outdoor Full-Color Wi-Fi Pan Tilt Network Camera, 4 mm
Product reference:
18-VIGI-C540-W-4
TP-LINK VIGI 4MP Outdoor Full-Color Wi-Fi Pan Tilt Network Camera, 4 mm
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
12 month
Delivery from Lithuania in
2 - 4
business days
- 4MP Super High Definition: The camera comes with 4MP-more than enough pixels to pick up some of the more discrete details.
- 24h Full Color: Obtain 24-hour color details, even in pitch-black conditions, with its large-aperture lens, high-sensitivity sensor, and attached supplementary lights.
- Powerful Pan Tilt: Customized patrol routes and auto tracking provide more intelligent options to monitor key areas and improve security within your property.
- Wireless Outdoor Connection: Simple and quick deployment with Wi-Fi signals.
- Human Vehicle Classification:Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
- Smart Detection:Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.
- Automatic Tracking: Continues following specified moving persons or vehicles with Pan Tilt cameras intelligently analyzing the image.
- Active Defense:Warn potential intruders instantly with sound and light when abnormal events occur.
- Two-Way Audio: Intelligently detect activities, inform you instantly and respond automatically by smart detection and two-way audio.
- H.265+:Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
- Smart Video Enhancement :VIGI's professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
- IP66 Waterproof:Reliable IP66 for stable outdoor performance.
- Flexible Management and Storage: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager. Local storage is available for each method, as well as onboard storage with SD card slot (up to 256GB).
| CAMERA | |
|---|---|
| Image Sensor | 1/3' Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 sec. |
| Slow Shutter | Yes |
| Minimum Illumination | 0.005 Lux; 0 Lux with IR/White Light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified/ Scheduled/ Auto |
| LENS | |
|---|---|
| Type | Fixed Focal Lens |
| Focal Length | 4mm |
| Aperture | F1.6 |
| FOV | 4mm: Horizontal FOV: 79°, Vertical FOV: 43°, Diagonal FOV: 93° |
| Lens Mount | M12 |
| DORI Distance | 4 mm: Detect: 80 m (262 ft) Observe: 33 m (109 ft) Recognize: 16 m (52 ft) Identify: 8 m (26 ft) |
| PTZ | |
|---|---|
| Pan/tilt Range | Pan: 0° to 350°, Tilt: 0° to 120° |
| Pan/tilt Speed | Pan Speed: Configurable from 1° to 55°/s; Preset Speed: 55°/s Tilt Speed: Configurable from 1° to 40°/s, Preset Speed 40°/s |
| Presets | 300 |
| Patrol Scan | 8 patrols, up to 8 presets for each patrol |
| Power-off Memory | Yes; Auto restore to previous PTZ and lens status after power failure |
| Park Action | Yes; Preset; Patrol Scan |
| 3D Positioning | Yes |
| VIDEO | |
|---|---|
| Max. Resolution | 2560X1440 |
| Mainstream | Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Sub-Stream | Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 640x480, 352x288, 320x240 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Bit Rate Control | CBR, VBR |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264 |
| H.264 Type | Main Profile/High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | Main Stream: 256 Kbps to 4 Mbps Sub-Stream: 64 Kbps to 512 Kbps |
| ILLUMINATOR | |
|---|---|
| IR LEDs | Quantity: 2 Range: 30m; Wavelength: 850nm |
| White LED | Quantity: 2 Range: 30m |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
| Angle Adjustment (Manual) | |
|---|---|
| Range | Pan: 0° to 348° Tilt: 0° to 120° |
| Image | |
|---|---|
| Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation (90°/270°) |
| Image Enhancement | BLC/3D DNA/HLC/SmartIR |
| Wide Dynamic Range | DWDR |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
| AUDIO | |
|---|---|
| Audio Communication | Two-Way Audio |
| Audio Input | Yes |
| Audio Output | Yes |
| Audio Compression | Yes |
| Audio Sampling Rate | 8KHz |
| Environmental Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps(G.711 alaw) |
| NETWORK | |
|---|---|
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| API | ONVIF |
| Simultaneous Live View | 3 Main Streams 3 Sub-Streams |
| Client | VIGI App, VIGI Security Manager, Web UI |
| Web Browser | Google Chrome® 57 and above Firefox® 52 and above Safari® 11 and above Microsoft® Edge 91 and above |
| Cloud | Yes |
| ONVIF | Yes |
| INTERFACES | |
|---|---|
| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port |
| Alarm | N/A |
| Reset Button | Yes |
| Power | DC Power Port |
| On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, Up to 256 GB |
| Built-in Microphone | Yes; Records Anything Going on within a 15-ft Radius of the Camera |
| Built-in Speaker | Yes |
| Audio | N/A |
| ALARM AND EVENT MANAGEMENT | |
|---|---|
| Smart Event | Human Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection |
| Basic Event | Motion Detection, Video Tampering Detection, Exception ( Illegal Login) |
| Alarm Linkage | Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing |
| Linkage Method | N/A |
| Output Notification | Message Push |
| GENERAL | |
|---|---|
| Package Contents | VIGI Network Camera Quick Start Guide Waterproof Cable Attachments Power Adapter Mounting Accessories |
| Operating Temperature | -30-60°C |
| Storage Temperature | -40-60°C |
| Storage Humidity | 95% or Less (Non-Condensing) |
| Operating Humidity | 95% or Less (Non-Condensing) |
| Material | Plastic |
| Net Weight | 0.62 Kg |
| Gross Weight | 1.21 Kg |
| Power Supply | 12V DC/1A, 5.5mm Coaxial Power Plug |
| Antenna | Quantity: 2 Type: 2.4GHz Welded Dipole Omni-Directional Antenna Gain: 2.0dBi |
| Protection | IP66 |
| Product Dimensions (L x W x H) | 120 × 172 × 198 mm (excluding antennas) |
| Certifications | CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, R-NZ |
| WIRELESS | |
|---|---|
| Standards | IEEE 802.11b/g/n |
| WiFi Channels | UN: 1-13 US: 1-11 |
| Frequency | 2.4 GHz |
| Wireless Transmit Power | High |
| Auto Wireless Channel | N/A |
| Wireless Statistics | N/A |
| Throughput Monitor | N/A |
| Radio Bandwidth | Auto: N/A 20M: Yes 40M: Yes |
| Wireless Rate | 11Mbps(802.11b) 54Mbps(802.11g) 150/300Mbps(802.11n) |
| Wireless Security | WPA/WPA2-PSK |
| Wireless Mode | AP, AP Client |
