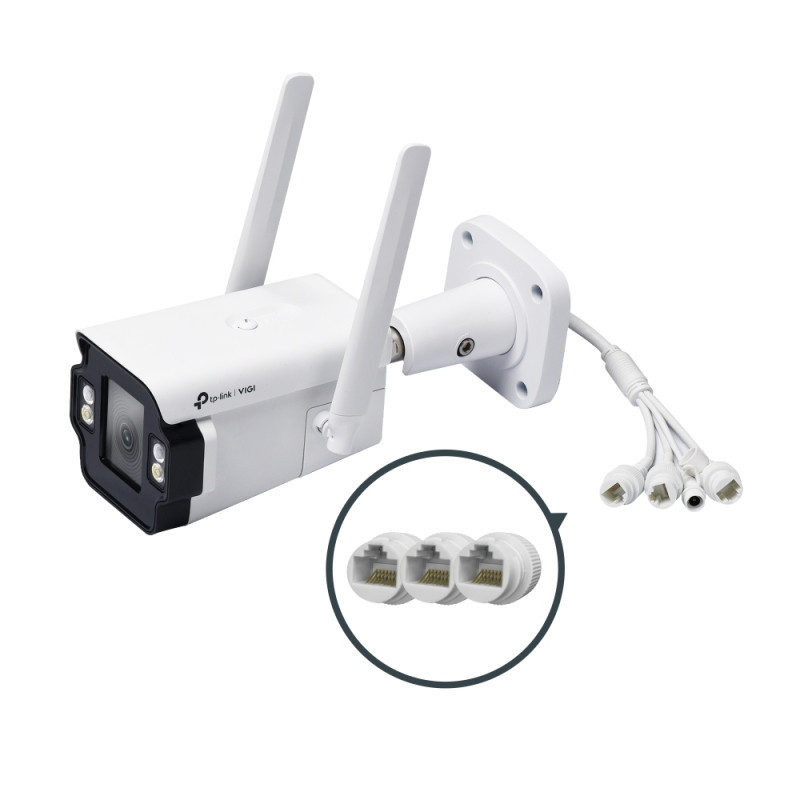

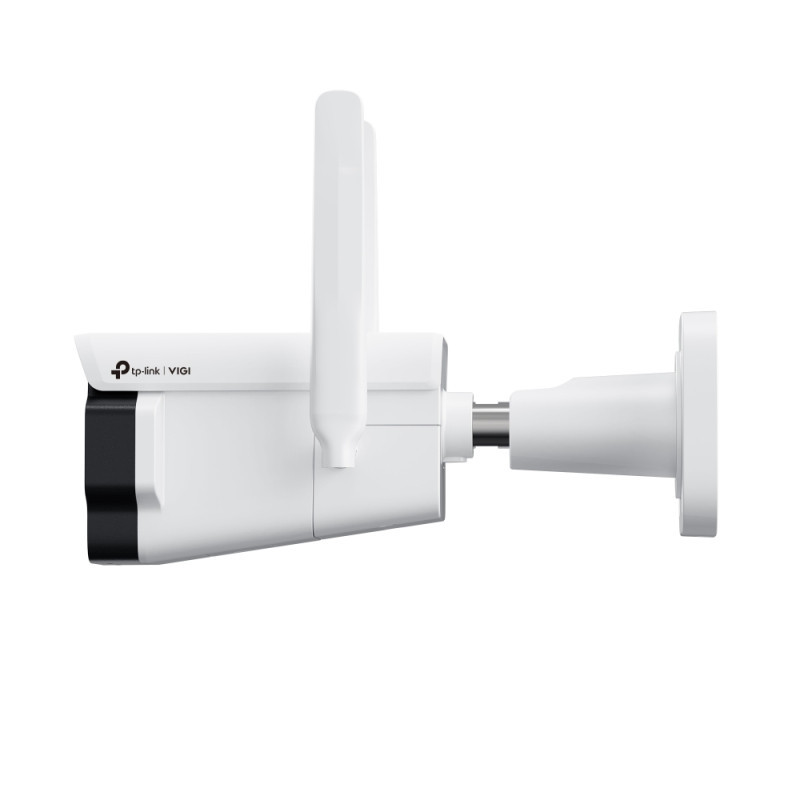

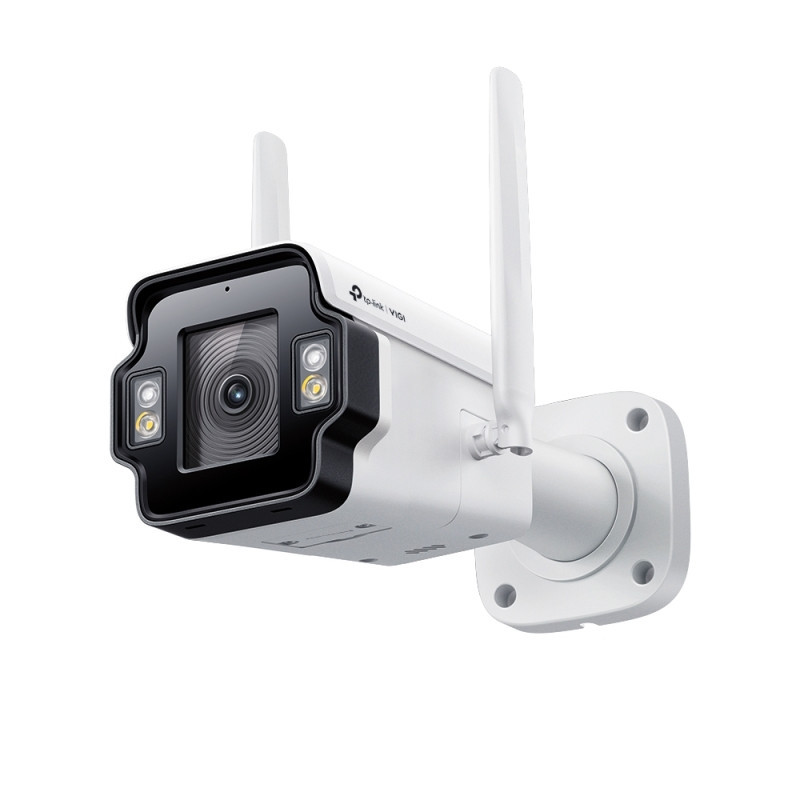

TP-LINK VIGI 4MP Outdoor Full-Color 4G Bullet Network Camera InSight S345-4G
Product reference:
18-InSightS345_4G
TP-LINK VIGI 4MP Outdoor Full-Color 4G Bullet Network Camera InSight S345-4G
TP-LINK VIGI 4MP Outdoor Full-Color 4G Bullet Network Camera InSight S345-4G
Product reference:
18-InSightS345_4G
TP-LINK VIGI 4MP Outdoor Full-Color 4G Bullet Network Camera InSight S345-4G
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
12 month
Delivery from Lithuania in
2 - 4
business days
- 4MP Super-High Definition and 24h Full-Color
- 4G Mobile Networking
- 3 LAN Ports for Downstream Devices
- Human Vehicle Classification
- Smart Detection
- Smart Video Enhancement Technology
- Active Defense and Two-Way Audio
- H.265+ Compression Technology
- IP66 Weatherproof
| CAMERA | |
|---|---|
| Image Sensor | 1/2.7' Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 sec. |
| Slow Shutter | Yes |
| Minimum Illumination | 0.005 Lux; 0 Lux with IR/White Light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified/ Scheduled/ Auto |
| LENS | |
|---|---|
| Type | Fixed Focal Lens |
| Focal Length | 4mm |
| Aperture | F1.6 |
| FOV | Horizontal FOV: 80.4°, Vertical FOV: 41.8°, Diagonal FOV: 98.7° |
| Lens Mount | M12 |
| DORI Distance | Detect: 80 m (262 ft) Observe: 33 m (109 ft) Recognize: 16 m (52 ft) Identify: 8 m (26 ft) |
| Angle Adjustment (Manual) | |
|---|---|
| Range | • Pan: 0° to 360° • Tilt: 0° to 90° • Rotate: 0° to 360° |
| ILLUMINATOR | |
|---|---|
| IR LEDs | • Quantity: 2 • Range: 50m • Wavelength: 850nm |
| White LED | • Quantity: 2 • Range: 30m |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
| VIDEO | |
|---|---|
| Max. Resolution | 2688x1520 |
| Mainstream | • Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps • Resolution: 2688x1520,2560x1440,2304x1296,2048x1280,1920x1080,1280x720 |
| Sub-Stream | • Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps • Resolution: 848x480,704x576, 640x480, 640x360,352x288, 320x240 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Bit Rate Control | CBR, VBR |
| Video Compression | • Main Stream: H.265+/H.265/H.264+/H.264 • Sub-Stream: H.265/H.264 |
| H.264 Type | High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | • Main Stream: 256 Kbps to 6 Mbps • Sub-Stream: 64 Kbps to 512 Kbps |
| Image | |
|---|---|
| Image Settings | • Mirror • Brightness • Contrast • Saturation • Sharpness • Exposure • WDR • White Balance • Prevent Overexposure to Infrared Light |
| Image Enhancement | BLC/3D DNA/HLC/SmartIR |
| Wide Dynamic Range | 120dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
| AUDIO | |
|---|---|
| Audio Communication | Two-Way Audio |
| Audio Input | Yes (Built-in Microphone) |
| Audio Output | Yes (Built-in Speaker) |
| Audio Compression | Yes |
| Audio Sampling Rate | 8KHz |
| Environmental Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps(G.711 alaw) |
| NETWORK | |
|---|---|
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP, SMTP, SNMP |
| ONVIF | Yes |
| API | Open Network Video Interface (Profile S/G/T) |
| Simultaneous Live View | 3 Main Streams 3 Sub-Streams |
| Client | VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS, VIGI Config Tool, VIGI PC Client |
| Web Browser | • Google Chrome® 57 and above • Firefox® 52 and above • Safari® 11 and above • Microsoft® Edge 91 and above |
| Cloud | Yes |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
| 4G | |
|---|---|
| Standard | LTE-TDD/LTE-FDD/WCDMA |
| SIM Type | Nano SIM* (US version supports data-only SIM card) |
| Category | 4 |
| Frequency | • LTE-FDD: B 1/3/5/7/8/20/28 • LTE-TDD: B 38/40/41 • WCDMA: B 1/5/8 |
| Uplink and Download Data Rate | Uplink: 50 Mbps, Downlink: 150 Mbps |
| Antenna | • Quantity: 2 • Type: 690~9601710~2690MHz Dipole Omni-Directional Antenna • Gain: Ant1：0.84dBi@690~960MHz, 2.85dBi@1710~2690MHz Ant2：0.74dBi@690~960MHz, 3.06dBi@1710~2690MHz |
| ALARM AND EVENT MANAGEMENT | |
|---|---|
| Smart Event | • Intrusion Detection • Line-Crossing Detection • Region Entering Detection • Region Exiting Detection • Object Abandoned Detection • Object Removal Detection • Loitering Detection • People Detection • Vehicle Detection • Abnormal Sound Detection • Scene Change Detection |
| Basic Event | • Motion Detection (Enhanced with Human Vehicle Classification for more accurate alerts) • Video Tampering Detection • Exception (Illegal Login) |
| Alarm Linkage | • Memory Card Video Recording • Message Push • Audible Warning • White Light Flashing • Upload to FTP server • Send to Alarm Server • Email Alarm |
| INTERFACES | |
|---|---|
| Network Interface | 3 RJ45 10/100M LAN Ports |
| Alarm | N/A |
| Reset Button | Yes |
| Power | DC Power Port |
| On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, Up to 512 GB |

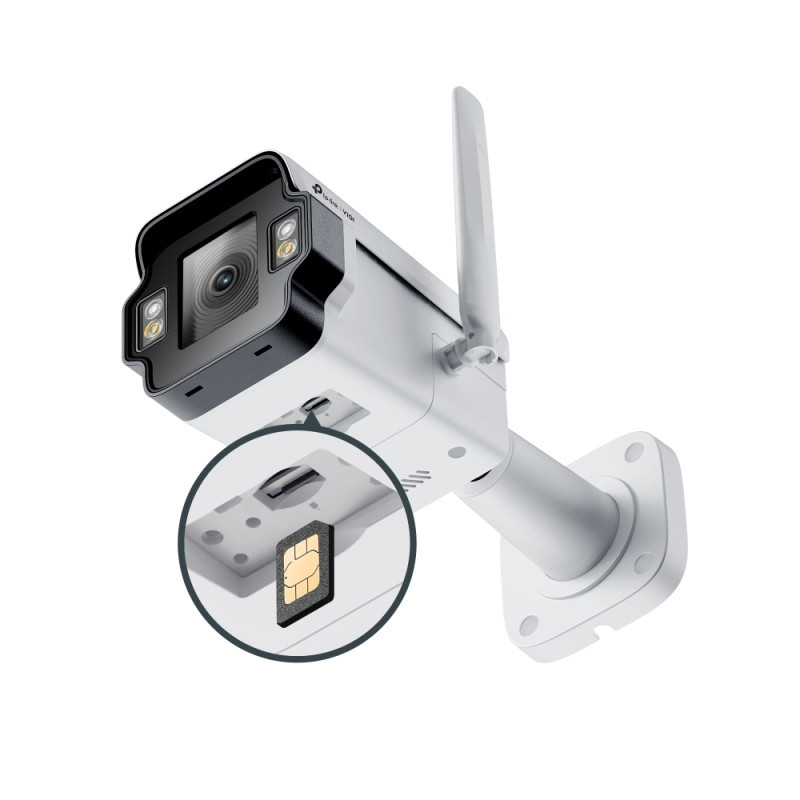

| Built-in Nano-SIM Card Slot | Yes |
| Built-in Microphone | Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera |
| Built-in Speaker | Yes |
| Audio | N/A |
| GENERAL | |
|---|---|
| Operating Temperature | -30 °C to 60 °C (-22 °F to 140 °F) |
| Storage Temperature | -40 °C to 60 °C (-40 °F to 140 °F) |
| Operating Humidity | 95% or Less (Non-Condensing) |
| Storage Humidity | 95% or Less (Non-Condensing) |
| Package Contents | • VIGI Network Camera • Quick Start Guide • Waterproof Cable Attachments • Mounting Accessories • Power Adapter |
| Material | Metal |
| Net Weight | 1.09 Kg |
| Power Supply | 12V DC/1 A, 5.5 mm Coaxial Power Plug |
| Protection | IP66 Weatherproof |
| Product Dimensions (L x W x H) | 10 × 4.8 × 4.0 in (256 × 122 × 101 mm) (excluding antennas) |
| Certifications | WPS, WHQL, Energy Star, RoHS, CE, NCC, NTRA, KC, RCM, ONVIF, IP66 |
