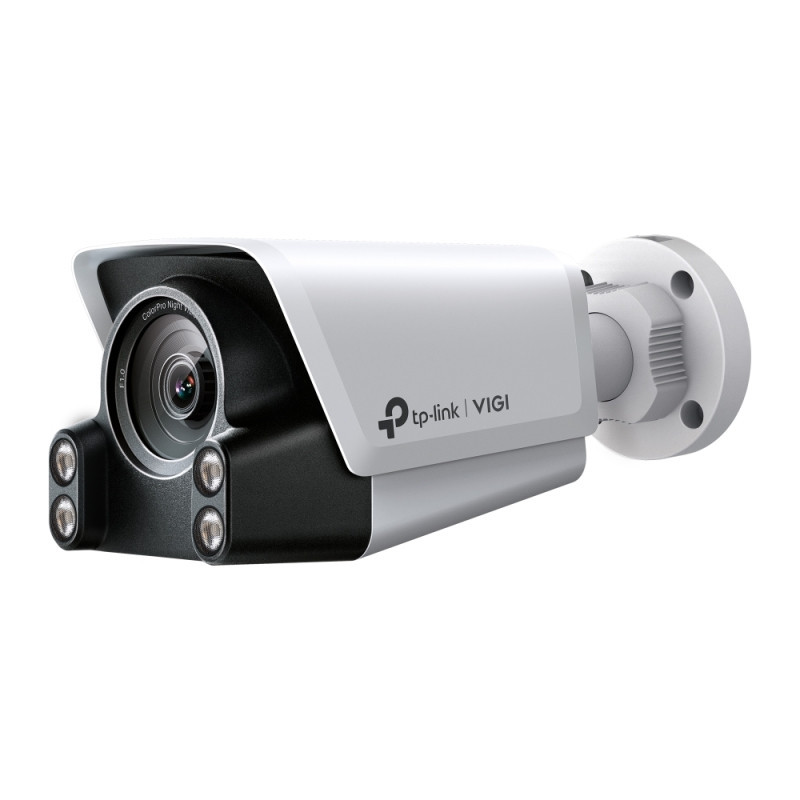

TP-LINK VIGI 4MP Outdoor ColorPro Night Vision Bullet Network Camera VIGI C340S, 4mm

Product reference: 18-VIGI-C340S-4

TP-LINK VIGI 4MP Outdoor ColorPro Night Vision Bullet Network Camera VIGI C340S, 4mm

Product reference: 18-VIGI-C340S-4

TP-LINK VIGI 4MP Outdoor ColorPro Night Vision Bullet Network Camera VIGI C340S, 4mm

You have 3 products in compare list, please remove someone and try again

Add to compare

12715 €

Product in warehouse

Guarantee
12 month

Delivery from Lithuania in
2 - 3
business days

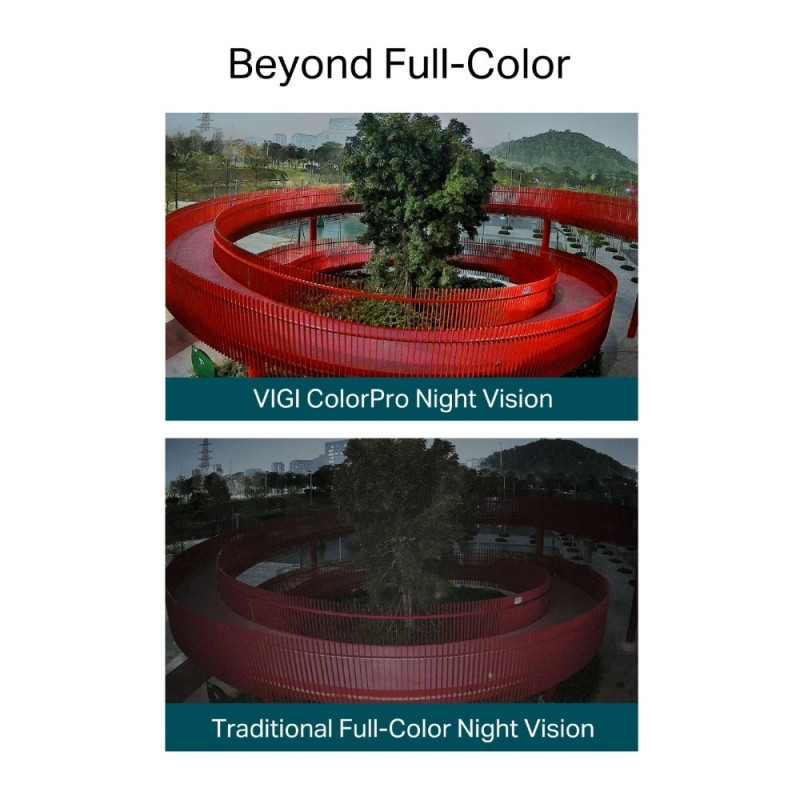

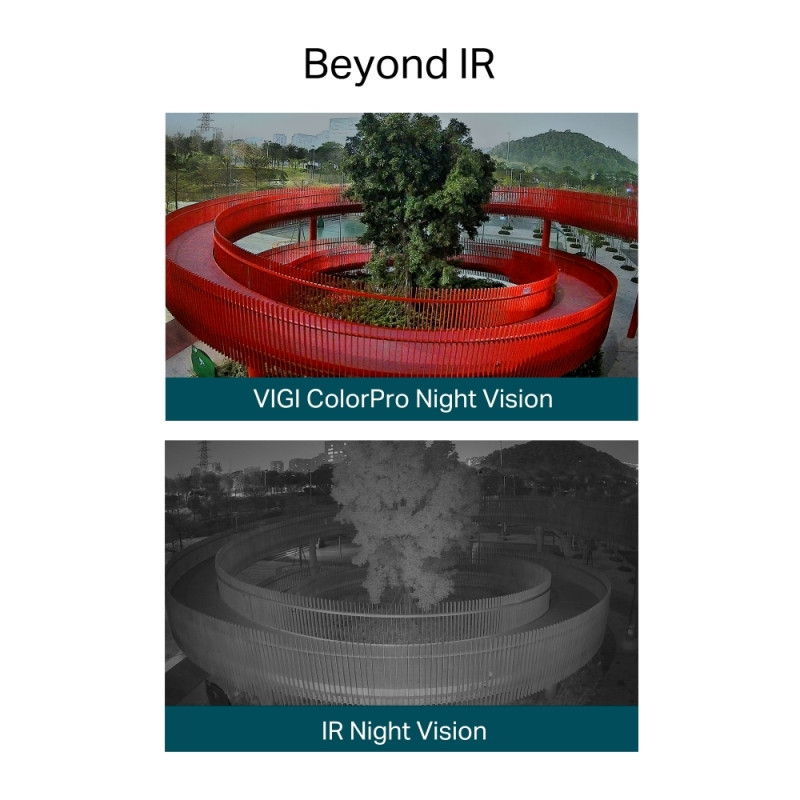

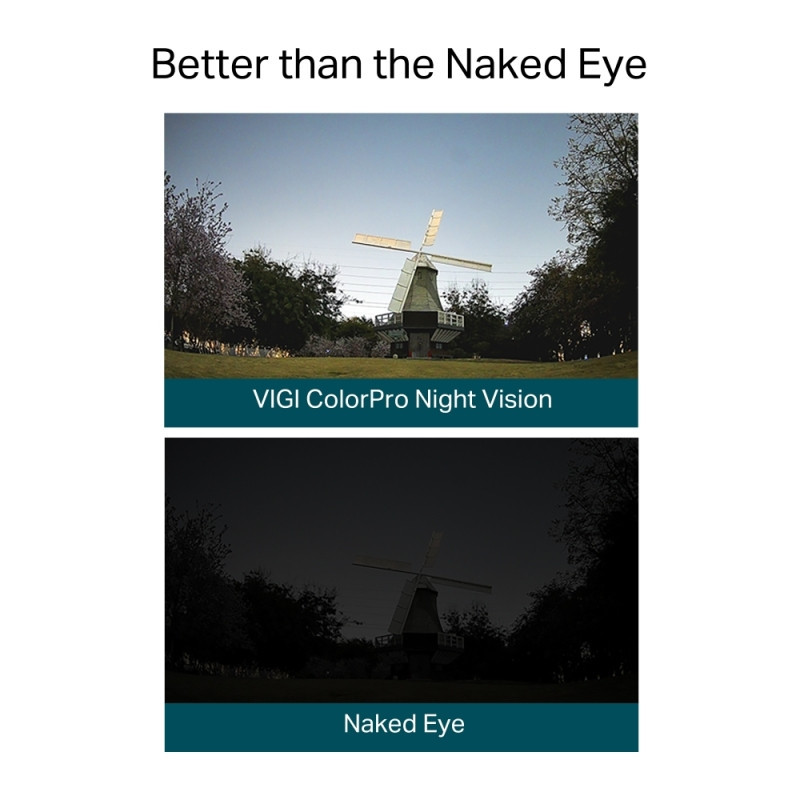

Ultra-Low Light Color Night Vision:Capture 24-hour 4MP high-quality and colorful video even in ultra low-light conditions without any supplementary lights.

Face Recognition: Efficiently enhances access management and attendance control while better protecting privacy.

People Vehicle Analytics:Quickly find people and vehicles of interest using a series of attributes, allowing you to improve search efficiency.

Human Vehicle Classification:Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.

Smart Detection:Actively detects abnormal events like area intrusion and line-crossing, sending notifications to you instantly.

Active Defense:Warn potential intruders instantly with sound and light when abnormal events occur.

Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere.

H.265+: Compresses the video size without sacrificing video quality, easing the network load and saving disk space.

Flexible Management and Storage: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager. Local storage is available for each method, as well as onboard storage with SD card slot (up to 512 GB).

LENS
Type	Fixed Focal Lens
Focal Length	4mm
Aperture	F1.0
FOV	4mm: Horizontal FOV: 95.2°, Vertical FOV: 50.6°, Diagonal FOV: 114.7°
Lens Mount	M16*P 0.5
DORI Distance	4 mm: Detect: 70 m (231 ft) Observe: 29 m (96 ft) Recognize: 14 m (46 ft) Identify: 7 m (23 ft)

Angle Adjustment (Manual)
Range	Pan: -90° to 90° Tilt: -90° to 90°

ILLUMINATOR
IR LEDs	N/A
White LED	Quantity: 4 Range: 30m
Illuminator On/Off Control	Auto/Scheduled/Always on/Always off

VIDEO
Max. Resolution	2688x1520
Mainstream	Frame Rate： 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2688x1520, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-Stream	Frame Rate： 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 705x576, 640x480, 352x288, 320x240 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate Control	CBR, VBR
Video Compression	Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264
H.264 Type	Main Profile/High Profile
H.264+	Main Stream Supported
H.265 Type	Main Profile
H.265+	Main Stream Supported
Video Bit Rate	Main Stream: 256 Kbps to 6 Mbps Sub-Stream: 64 Kbps to 512 Kbps

Image Settings	Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, HLC Adjustable by Client Software, Rotation (90°/270°)
Image Enhancement	BLC/3D DNA/HLC
Wide Dynamic Range	120 dB
SNR	≥ 52 dB
Image Parameters Switch	Yes
Privacy Mask	Up to 4 Masks
ROI	1 Region
OSD Setting	Yes

AUDIO
Audio Communication	Two-Way Audio
Audio Input	Yes
Audio Output	Yes
Audio Compression	Yes
Audio Sampling Rate	8KHz
Environmental Noise Filtering	Yes
Audio Bit Rate	64 Kbps(G.711 alaw)

NETWORK
Protocol	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
ONVIF	Yes
API	Open Network Video Interface (Profile S)
Simultaneous Live View	3 Main Streams 3 Sub-Streams
Client	VIGI App, VIGI Security Manager, Web UI
Web Browser	Google Chrome® 57 and above Firefox® 52 and above Safari® 11 and above Microsoft® Edge 91 and above
Cloud	Yes
Security	Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

ALARM AND EVENT MANAGEMENT
Smart Event	Human Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection, Loitering Detection, Scene Change Detection
Basic Event	Motion Detection, Video Tampering Detection, Exception (Illegal Login), Scene Change Detection
Alarm Linkage	Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing
Linkage Method	N/A
Output Notification	Message Push

Deep Learning Function
People Vehicle Analytics	Search and filter to people or vehicles of interest based on many different attributes, making post-event search faster and easier.
Face Capture	Support
Face Comparison	Support

INTERFACES
Network Interface	1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Alarm	N/A
Reset Button	Yes
Power	DC Power Port
On-board Storage	Built-In Memory Card Slot, Support MicroSD Card, Up to 512 GB
Built-in Microphone	Yes; Records Anything Going on within a 15-ft Radius of the Camera
Built-in Speaker	Yes
Audio	N/A

GENERAL
Operating Temperature	-30-60°C
Storage Temperature	-40-60°C
Operating Humidity	95% or Less (Non-Condensing)
Storage Humidity	95% or Less (Non-Condensing)
Package Contents	VIGI Network Camera Quick Start Guide Waterproof Cable Attachments Mounting Accessories
Material	Front Cover: Metal Back Cover: Plastic
Power Supply	12V DC ± 5%, Max. 10.1 W, 5.5mm Coaxial Power Plug PoE: 802.3af/at, class 0, Max. 11.5 W
Protection	IP67
Product Dimensions (L x W x H)	102× 236× 99mm
Certifications	CE, NTRA, VCCI, KC, BSMI, FCC, IC
