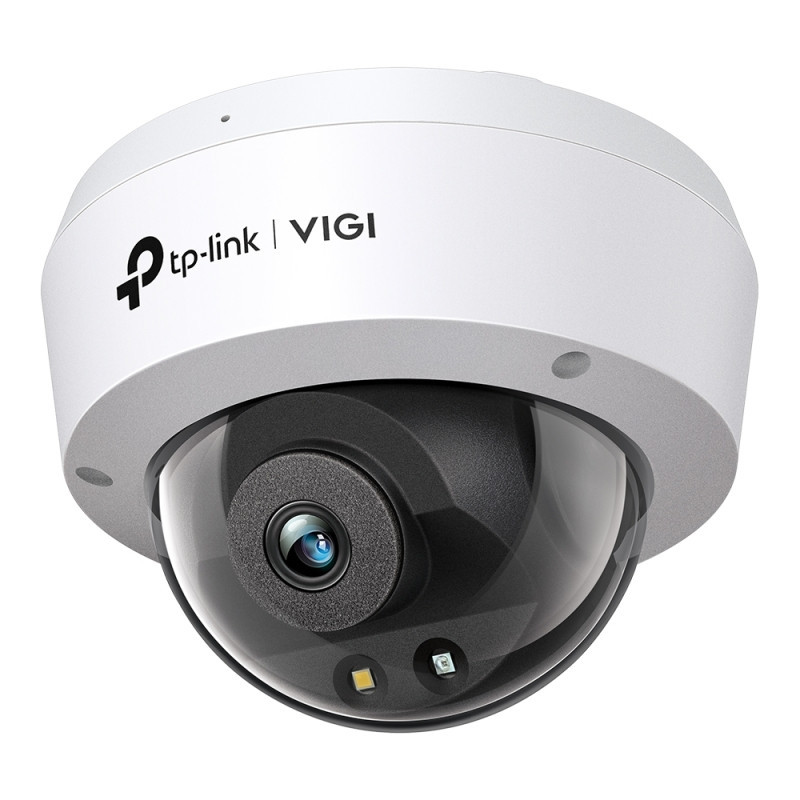

TP-LINK VIGI 4MP Full-Color Dome Network Camera VIGI C240, 4mm
Product reference:
18-VIGI-C240-4
TP-LINK VIGI 4MP Full-Color Dome Network Camera VIGI C240, 4mm
TP-LINK VIGI 4MP Full-Color Dome Network Camera VIGI C240, 4mm
Product reference:
18-VIGI-C240-4
TP-LINK VIGI 4MP Full-Color Dome Network Camera VIGI C240, 4mm
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
12 month
Delivery from Lithuania in
2 - 3
business days

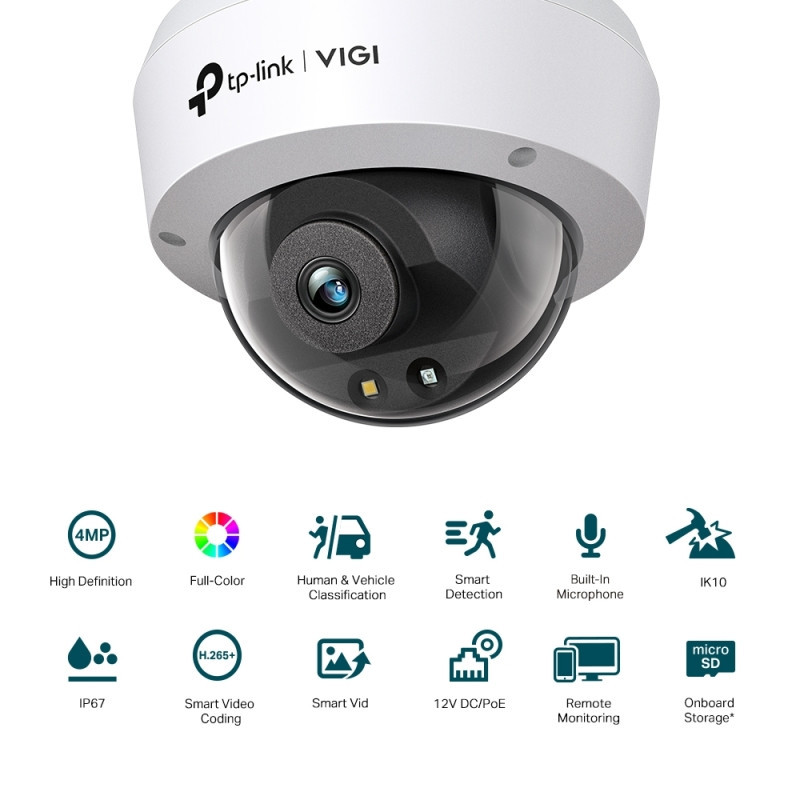

- 4MP Super High Definition: The camera comes with 4MP-more than enough pixels to pick up some of the more discrete details.
- 24h Full Color: Obtain 24-hour color details, even in pitch-black conditions, with its large-aperture lens, high-sensitivity sensor, and attached supplementary lights.
- Human Vehicle Classification:Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
- Smart Detection:Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.
- Built-In Microphone:Features a built-in microphone to record anything going on within a 15-ft radius of the camera.
- IK10 Vandal-Proof IP67 Waterproof:With vandal-resistant, rugged housing and waterproof design, this VIGI dome camera is built tough to withstand vandalism and harsh environments with rain and dust for constant security anywhere and anytime.
- H.265+:Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
- Smart Video Enhancement :VIGI's professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
- PoE/12V DC:Two types of power supply not only give you more convenience but also make your wiring remarkably easy.
- Flexible Management and Storage: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager. Local storage is available for each method, as well as onboard storage with SD card slot (up to 256 GB).
| CAMERA | |
|---|---|
| Image Sensor | 1/3' Progressive Scan CMOS |
| Lens | 4mm |
| Aperture | 4mm: F1.6 |
| Lens Mount | M12 |
| Viewing Angle | 4mm: Horizontal FOV: 79.7°, Vertical FOV: 42.9°, Diagonal FOV: 93.9° |
| Day/Night Mechanism | IR Cut Filter |
| Minimum Illumination | Color: 0.005 Lux; 0 Lux with IR/White Light |
| Pan/Tilt Range | Pan: 0° to 360°, Tilt: 0° to 85°, Rotate: 0° to 360° |
| Weatherproof Rating | IP67 |
| Digital Noise Reduction | 3D DNA |
| WDR | DWDR |
| NETWORK | |
|---|---|
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| API | ONVIF |
| Simultaneous Live View | 3 Main Streams 3 Sub-Streams |
| Client | VIGI App, VIGI Security Manager, VIGI NVR, Web |
| GENERAL | |
|---|---|
| Package Contents | VIGI Network Camera Quick Start Guide Waterproof Cable Attachments Mounting Accessories |
| Operating Temperature | -30-60°C |
| Certifications | CE/BSMI/VCCI/ONVIF |
| Dimensions(HXWXD) | 115 × 115 × 86mm |
| Material | Plastic |
| General Features | Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening |
| Power Supply | 12V DC ± 5%, 5.5mm Coaxial Power Plug PoE (802.3af/at, class 0) |
| Power Consumption | 12V DC: Max 5.4W PoE: Class 0 |
| Vandal Resistant | IK10 |
| ILLUMINATOR | |
|---|---|
| IR LEDs | Quantity: 1 Range: 30m Wavelength: 850nm |
| White LED | Quantity: 1 Range: 30m |
| VIDEO/IMAGE | |
|---|---|
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264 |
| Frame Rate Resolutions | Main Stream: Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2560x1440,2304x1296, 2048x1280, 1920x1080, 1280x720 Sub-Stream: Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 640x480,352x288, 320x240 |
| Max. Resolution | 4MP (2560×1440) |
| Video Streaming | Main Stream Sub-Stream |
| Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90°/270°) |
| Image Enhancement | BLC/3D DNA/HLC/SmartIR |
| Video Bit Rate | 64 Kbps to 4 Mbps |
| Day/Night Switch | Day/Night/Auto/Schedule |
| SMART FEATURE SET | |
|---|---|
| Smart Event | Human Vehicle Classification, Intrusion Detection, Line-Crossing Detection, Human Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection |
| Basic Event | Motion Detection, Camera Tampering Detection, Exception (Illegal Login) |
| Linkage Method | Trigger Notification: ONVIF, HTTPS |
| Region of Interest | 1 Region |
| INTERFACES | |
|---|---|
| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port |
| Button | - |
| Video Output | - |
| On-board Storage | Built-in Memory Card Slot, Support MicroSD Card, Up to 256 GB |
| Built-in Microphone | Yes |
