TP-LINK VIGI 16 Channel Network Video Recorder
Product reference:
18-VIGI-NVR2016H
TP-LINK VIGI 16 Channel Network Video Recorder
TP-LINK VIGI 16 Channel Network Video Recorder
Product reference:
18-VIGI-NVR2016H
TP-LINK VIGI 16 Channel Network Video Recorder
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
12 month
Delivery from Lithuania in
2 - 4
business days
- 4K HDMI Video Output 16MP Decoding Capacity :Sharp image definition up to 8MP, and 8-ch@2MP decoding capacity allows you to enjoy more-channels live view and playback at the same time.
- 16-Channel Simultaneous Playback* :Replay the feed from up to 16 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.
- H.265+:Compresses the video size without sacrificing video quality, easing the network load and saving disk space.
- ONVIF Ensures Compatibility △ :Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.
- Plug Play:Allows new and unused VIGI IP Cameras to be added automatically to the new NVR and activated instantly, making installation faster than ever before.
- 24/7 Continuous Recording: Stores up to 20 TB of footage (1048 storage days) from connected cameras to secure your data for quick, convenient access.
- Two-Way Audio:With voice intercom support, scare off any potential thieves or intruders from wherever you are.
- Remote Monitoring: The dedicated VIGI app and client enable remote monitoring, providing ease and convenience.
| Video and Audio | |
|---|---|
| IP Video Input | 16-Channel |
| Incoming Bandwidth | 80 Mbps |
| Outgoing Bandwidth | 60 Mbps |
| HDMI Output Resolution | 1 Channel, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
| VGA Output Resolution | 1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
| Video Output Mode | HDMI/VGA Simultaneous Output |
| Multi-View Display | 1/4/6/8/9/16 |
| DECODING | |
|---|---|
| Audio Compression | G.711A/G.711U/G.726 |
| Video Compression | H.265+/H.265/ H.264+/H.264 |
| Record Resolution | 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Synchronous Playback | 16-Channel |
| Capability | • 25fps: 2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP • 30fps: 4-ch @ 3MP, 2-ch @ 5MP |
| Record Management | |
|---|---|
| Record Mode | • Manual Recording • Scheduling Recording • Motion Detection Recording |
| Playback Mode | • Instant Playback • Regular Playback • Tag Playback • Event Playback |
| Backup Mode | • Regular Backup • Video Clip Backup |
| Playback Function | • Play • Pause • Stop • Fast Forward • Fast Backward • Play By Frame • Full Screen • Video Clip • Export Clip • Digital Zoom • Lock Recording • Audio On/Off |
| NETWORK | |
|---|---|
| Protocol | UPnP (Plug and Play), NTP (Network Timing) |
| Mobile Phone Access | Android, iOS |
| Web Browser | Chrome (57+), Firefox (52+), Edge (91+) |
| Interoperability | ONVIF, CGI |

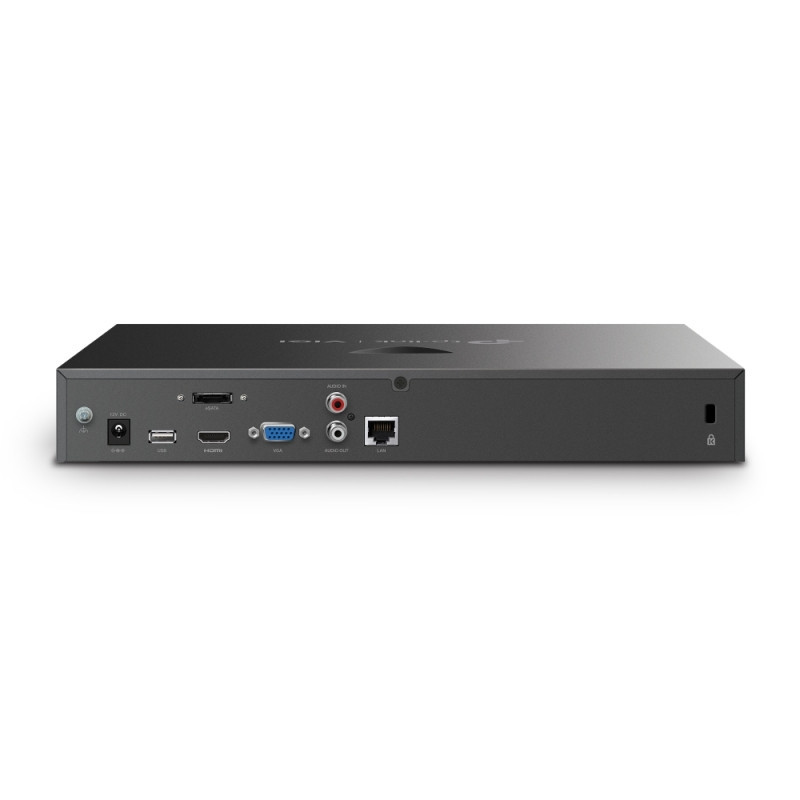

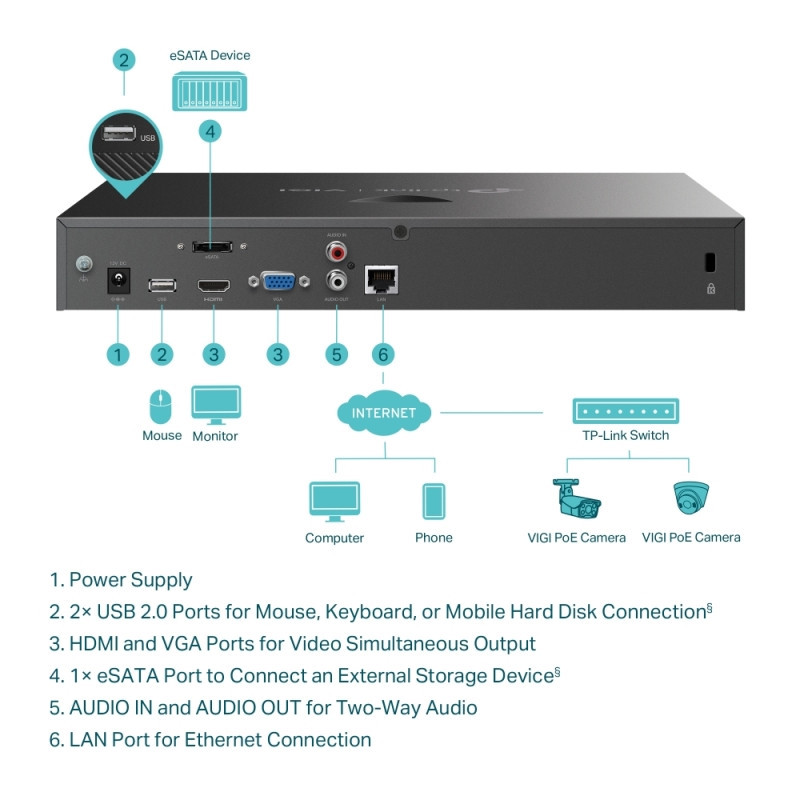

| External Interface | |
|---|---|
| Network Interface | 1, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface |
| USB Interface | 1 Front USB 2.0 Port, 1 Rear USB 2.0 Port |
| Audio Interface | 1, Audio In; 1, Audio Out |
| Alarm In/Out | N/A |
| Serial Interface | N/A |
| Power | 1× DC Jack |
| Reset Button | 1 |
| Speaker | N/A |
| eSATA | 1 |
| HDMI | 1 |
| VGA | 1 |
| HARD DISK | |
|---|---|
| SATA | 2 SATA Interfaces |
| Capacity | Up to 10 TB Capacity for Each HDD |
| Alarm | |
|---|---|
| General Alarm | • Motion Detection • Video Tampering • Line-Crossing Detection • Intrusion Detection • Region Entering Detection • Region Exiting Detection • Object Abandoned/Removal Detection • Vehicle Detection • Human Detection • Smart Frame |
| Anomaly Alarm | • Video Loss • Offline and IP Conflict • Disk Exception • Login Exception • Fan Exception |
| Alarm Linkage | • Recording • White Light Alarm • Buzzer • Log • Audible Alarm |
| GENERAL | |
|---|---|
| Storage Temperature | -40-70°C |
| Storage Humidity | 10%~90% RH Non-Condensing |
| Package Contents | • VIGI Network Video Recorder • Power Adapter • HDD Screws • Mouse • Quick Installation Guide |
| Working Temperature | • NVR: -10-55 °C • Power Adapter: 0-40 °C |
| Working Humidity | 10%~90% RH Non-Condensing |
| Dimensions( W X D X H ) | 330 × 285 × 45mm |
| Net Weight | 1.9 Kg |
| Gross Weight | 3.2 Kg |
| Power Supply | 12V DC/3.3A |
| Power Consumption | • 4.78 W (Without Disk) • 24.16 W (With Disk) |
| Certifications | CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI |
