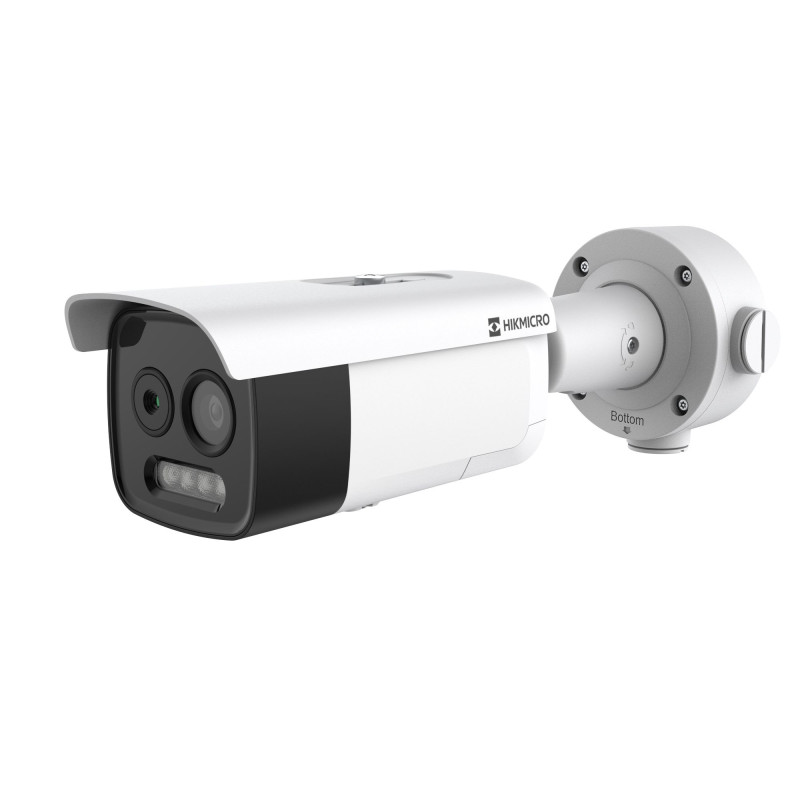

Thermographic camera HikMicro HM-TD2628T-3 / G1 / T3A
Product reference: 26-6974004648336
  • Resolution: 256 × 192, 12 μm, VOx UFPA, NETD ≤25 mK
  • Advanced AI analysis reduces false fire and smoke alarms
  • Temperature detection from -20 °C to 650 °C with high accuracy
  • Supports fire, smoke and smoking detection
  • Filtering algorithms: forklift and sun reflections
  • Smart lighting: white light, IR and automatic mode
  • Advanced image processing (AGC, DDE, 3D DNA)
  • High-quality sensor with 10-year warranty
Thermographic camera HikMicro HM-TD2628T-3 / G1 / T3A

Thermographic camera HikMicro HM-TD2628T-3 / G1 / T3A

Product reference: 26-6974004648336
  • Resolution: 256 × 192, 12 μm, VOx UFPA, NETD ≤25 mK
  • Advanced AI analysis reduces false fire and smoke alarms
  • Temperature detection from -20 °C to 650 °C with high accuracy
  • Supports fire, smoke and smoking detection
  • Filtering algorithms: forklift and sun reflections
  • Smart lighting: white light, IR and automatic mode
  • Advanced image processing (AGC, DDE, 3D DNA)
  • High-quality sensor with 10-year warranty
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
738,65 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*
  • Approvals
  • EMC CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN50130-4: 2011+A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 7)KC (KSC9832: 2019; KSC9835: 2019)
  • Environmental protection CE-RoHS：2011/65/EU, WEEE: 2012/19/EU, Reach：Regulation(EC) No 1907/2006
  • Protection IP67: IEC 60529-2013IK10: IEC 62262-2002
  • Security CB: IEC 62368-1: 2014+A11; CE-LVD: EN 62368-1: 2014/A11: 2017; BIS: IS 13252 (Part 1): 2010/ IEC 60950-1: 2005LOA: SANS/IEC 60950-1
  • Audible and visual signal
  • Sound alarm Yes, for two types of audible alarm (VCA and Temperature Exception)2 preset voice alerts (one for each)6 importable user-defined voice alerts (6 options shared in the two types)
  • Visual alarm Yes. White light alarm with adjustable flashing frequencies
  • White light range Up to 30 m
  • Detection Range Table/Smart Function Range
  • VCA Range for Humans 36 years
  • VCA Range for Vehicles 90 m
  • General information
  • Dimensions 349.1 mm × 113 mm × 105mm
  • Energy consumption 12 VDC ± 25%: 0.85A to 1.42 A, max. 12.8WPoE (802.3at, class 4): 42.5 V to 57 V, 0.22 A to 0.3 A, max. 12.8W
  • Power source 12 VDC ± 25%, 24 VDC ± 25% two-core terminal blockPoE (802.3at, class 4)
  • Protection level IP67 Standard, IK10TVS 6000V lightning protection, surge protection, voltage transient protection
  • Web browser language 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
  • Weight 1710 grams
  • Operating temperature/humidity Temperature: -40°C to 65°C (-40°F to 149°F) Humidity: 95% or less
  • Lighting
  • IR distance Up to 30m
  • Light Supplement Hybrid (IR, White light or Smart mode)
  • Image effect
  • Bi-spectrum Image Fusion Display the details of optical channel on thermal channel
  • Picture in Picture Display partial image of thermal channel on the full screen of optical channel
  • Target color Yes. Supported in white hot and black hot mode.
  • Interface
  • Alarm Action SD recording/Relay output/Smart capture/FTP upload/Email linkage
  • Alarm input 2, alarm input (0-5 VDC)
  • Alarm output 2, alarm output (alarm response actions configurable)
  • Audio input 1, 3.5 mm Mic in/Line in interfaceLine input: 2 - 2.4 V [pp], output impedance: 1 KΩ ± 10%
  • Audio output Linear level, impedance: 600 Ω
  • Communication interface 1, RJ45 10 M/100 M Self-adaptive Ethernet interface.1, RS-485 interface (half duplex)
  • Network
  • API ISAPI, ISUP, HIKVISION SDK, and third-party management platform, Open Network Video Interface (Profile S, Profile G, Profile T, Profile M),OTAP
  • Customer iVMS-4200, Hik-Connect
  • Internal memory MicroSD/SDHC/SDXC card (up to 512 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
  • Protocols IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour,SFTP,SRTP
  • Safety User authentication (ID and Password), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering
  • Live video viewing Up to 20 channels
  • User/Host level Up to 32 users, 3 levels: Administrator, Operator, User
  • Browser Live view (plug-in allowed) : Internet Explorer 11Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 + Local service : Chrome 57.0+, Firefox 52.0 +
  • Optical module
  • Aperture (range) F1.6
  • Field of view 84.0° × 43.1° (H × V)
  • Focal length 4.3 mm
  • Image sensor 1/2.7" Progressive Scan CMOS
  • Minimal lighting 0.0089Lux @(F1.6,AGC ON),0 Lux with IR
  • Resolution 5MP, 2688 × 1944
  • Shutter speed 1 s to 1/100,000 s
  • WDR 120dB
  • Smart function
  • Fire Detection Dynamic fire detection, up to 10 fire points detectable
  • Smoke Detection Support smoke detection on optical channel
  • Smoke Detection Up to 10 smoking points detected
  • Temperature accuracy Max (±2°C, ±2 %)
  • Temperature measurement 3 temperature measurement rule types (point, area, line), 21 rules in total
  • Temperature range -20 °C to 650 °C (-4 °F to 1202 °F)
  • VCA 4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
  • Thermal imaging module
  • Aperture F1.0
  • Digital zoom ×2, ×4
  • Field of view 50° × 37.3° (H × V)
  • Focal length 3.6mm
  • IFOV 3.33mrad
  • Image sensor Vanadium Oxide Uncooled Focal Plane Arrays
  • Minimum focusing distance 0.3 m
  • NETD ≤25 mK (25°C, F1.0)
  • Point step 12 μm
  • Resolution 256 × 192
  • Spectral range 8 μm to 14 μm
  • Image and sound
  • Audio compression G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM
  • Main stream Thermal:25 fps (1280 × 720, 704 × 576, 640 × 512, 320 × 240)Optical:50 Hz: 25 fps (2688 × 1944, 2688 × 1520, 1920 × 1080, 1280 × 720)60Hz: 30 fps (2688×1944, 2688×1520, 1920×1080, 1280×720)
  • Secondary flow Thermal: 25 fps (704 × 576, 640 × 512, 320 × 240)Optical:50 Hz: 25 fps (704 × 576, 352 × 288)60 Hz: 30 fps (704 × 480, 352 × 240)
  • Image compression Main Stream: H.265/H.264Sub-Stream: H.265/H.264/MJPEG
  • Video and Image
  • Color palettes 17 types (White hot, Black hot, Fusion 1, Rainbow, Fusion 2, Ironbow 1, Ironbow 2, Sepia, Color 1, Color 2, Ice fire, Rain, Red hot, Green hot, Dark blue, Winter, Summer)

ManufacturerHikMicro
Manufacturer codeKIPHMTD2628T3G1T3A
Weight1.65 kg
