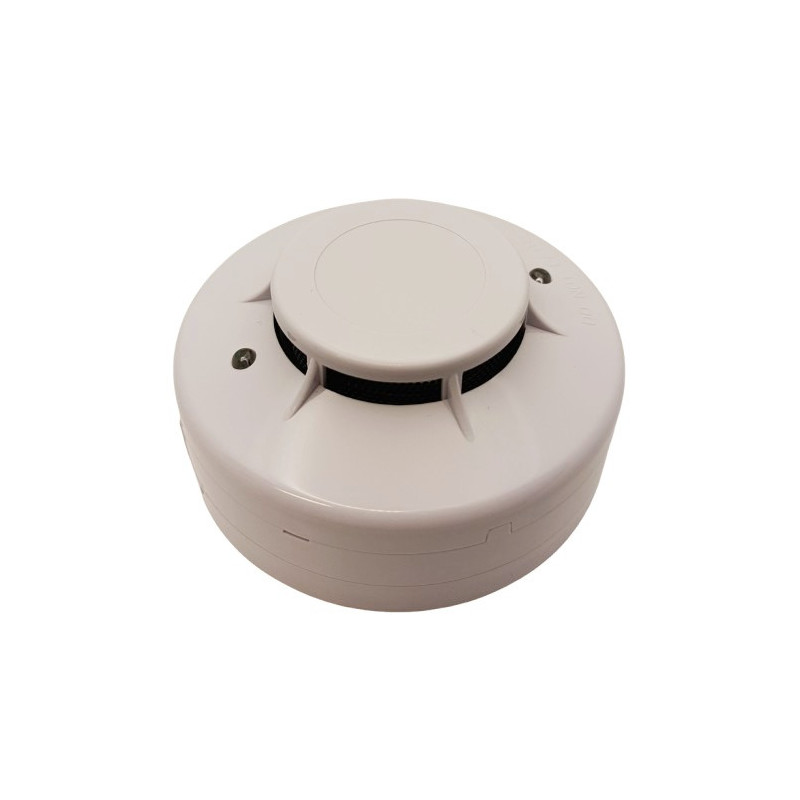

Smoke detector - HiSmart photoelectric 4 wires 0.08-0.16 dB / m DC 9V-35V
Product reference:
14-9990000993185
Photoelectric smoke detector with 4-wire connection for integration into multi-station systems. It has a sensitivity range of 0.08 to 0.16 dB/m and operates in the DC 9V to 35V voltage range.
Smoke detector - HiSmart photoelectric 4 wires 0.08-0.16 dB / m DC 9V-35V
Product reference:
14-9990000993185
Photoelectric smoke detector with 4-wire connection for integration into multi-station systems. It has a sensitivity range of 0.08 to 0.16 dB/m and operates in the DC 9V to 35V voltage range.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
4 - 5
business days
Not available
HiSmart photoelectric smoke detector, 4 wires
Photoelectric smoke detector with 4-wire connection for integration into multi-station systems. It has a sensitivity range from 0.08 to 0.16 dB/m and operates in a voltage range from DC 9V to 35V.
- Early smoke detection from any direction with advanced photoelectric technology.
- Designed for easy integration into multi-station security systems.
- Simple 4-wire connection for reliable installation and operation.
- Visual alarm indication with red LED light for quick warning.
Features | |
|---|---|
| Product type | Photoelectric smoke detector |
| Connector type | 4 wires |
Specifications | |
| Sensitivity range | 0.08 - 0.16 dB/m |
| Voltage range | DC 9V to 35V |
| Standby current | < 80µA |
| Alarm current | 40mA |
| Maximum operating current | 60mA |
| Alarm indication | Red LED on |
| Alarm output | Relay output |
| Indicator cycle time | 32 sec |
| Operating temperature | 0°C to +50°C |
| Dimensions | Ø99mm x 51mm |
| Weight | 147g |
| Color | White |
| Certificates | EN54-7 |
