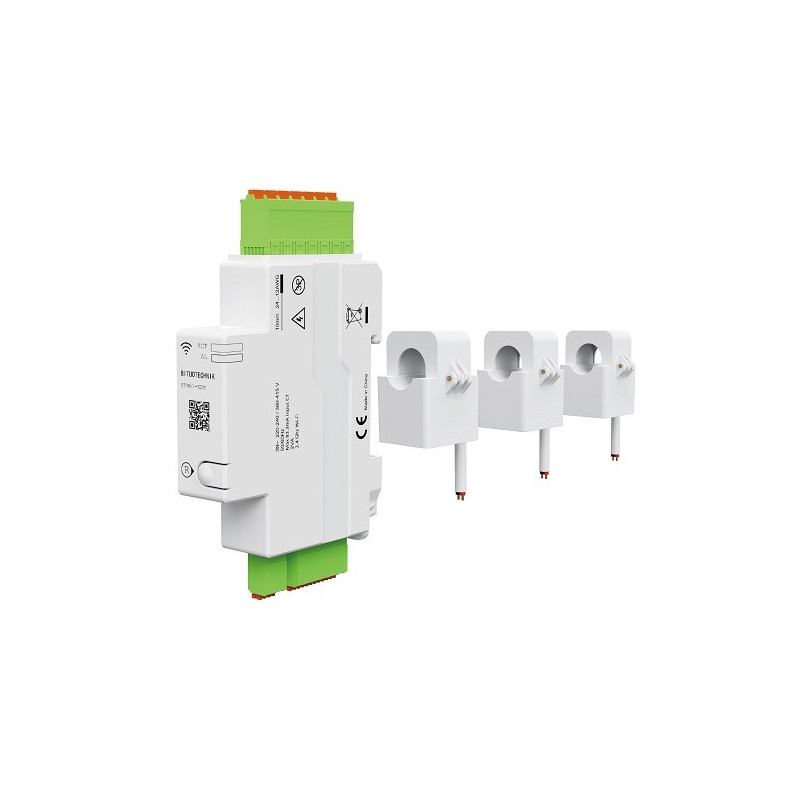

Smart energy meter, 3P+N,120A, DIN, Tuya, Wi-Fi

Smart energy meter, 3P+N,120A, DIN, Wi-Fi, Tuya
Features:
A smart energy meter is an advanced device designed to efficiently and accurately monitor energy consumption in three-phase systems with a neutral wire (3P+N). It can also be applied in a single-phase system.
Advanced energy monitoring: real-time measurements of voltage, current, power, electricity consumption and frequency.
Current measurement up to 120A (per phase) ensures accurate monitoring of energy consumption in both residential and commercial facilities.
The 16mm diameter CT modules allow for quick and convenient installation without interrupting the existing power supply. Three independent detection modules allow for monitoring each phase separately and identifying energy consumption irregularities.
Convenient device connection via the Tuya smart home app. The app allows you to view energy consumption history and data analysis in real time.
Using a 2.4GHz Wi-Fi connection, the Tuya app supports Android or iOS smart devices.
Voice control is compatible with Amazon Alexa and Google Assistant.
Three current measurement modules (Split-core CTs) are included.
Technical characteristics:
Max. current (Imax): 120 A.
Operating voltage: 220~240V AC (phase-neutral) / 380~415V AC (phase-phase).
Frequency: 50/60 Hz.
Insulation voltage (Ui): 440 V.
Energy measurement accuracy: 1%; Class 1.
Max. consumption: < 2VA.
Rated impulse withstand voltage (Uimp): 4 kV.
Overvoltage category: III.
Connection type: Wi-Fi (2.4 GHz).
App: Tuya Smart / Smart Life (Android, iOS).
Works with Amazon Alexa Google Assistant.
Reboot button: yes.
Installation: on DIN rail.
Safety class: IP20.
Operating temperature: -25°C~+70°C.
Warranty: 24 months.
