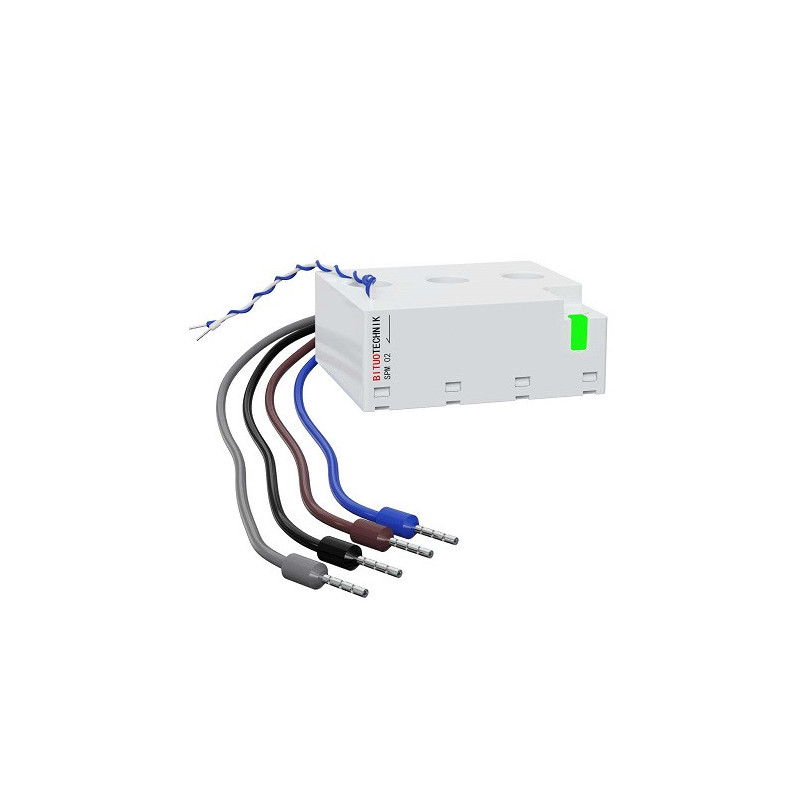

Smart energy meter, 3P+N, 63A, Modbus RS485

Compact smart energy meter, 3P+N, 63A, Modbus RS485
Features:
A smart energy meter is an advanced device designed to efficiently and accurately monitor energy consumption in three-phase systems with a neutral wire (3P+N). It can also be applied in a single-phase system.
More suitable for industrial, commercial or larger residential installations. Can monitor multiple phases or individual circuits simultaneously.
Advanced energy monitoring: real-time measurements of voltage, current, power, electricity consumption and frequency.
Current measurement up to 63A ensures accurate monitoring of energy consumption.
The device can analyze phase balance in three-phase systems. It has additional functions that allow you to monitor and compare parameters of multiple phases or circuits.
It uses the Modbus RTU communication model, which is compatible with industrial control systems. It ensures stable and fast communication in large facilities.
This meter can be installed in more flexible electrical system configurations, does not take up space on a DIN rail. It can be applied in the electrical circuit after the main circuit breaker, fuse or distribution panel, which allows it to monitor the energy consumption of specific electrical circuits or devices.
The energy meter is suitable for industrial, commercial or larger residential installations.
Notes:
Do not install this device in front of a circuit breaker or fuse, as the device is not designed for protection and may be damaged by electrical faults.
It is forbidden to install this device downstream of control devices such as contactors, frequency converters or motor starters. This may cause voltage surges, harmonics or instantaneous current surges that will damage the device. Do not use where the current exceeds the device's rated limit of 63A.
The device must be installed in a dry location or using special protective boxes if there is a risk of moisture.
Technical characteristics:
Max. current (Imax): 63 A (3P+N).
Operating voltage: 208~415V AC.
Frequency: 50/60 Hz.
Rated insulation voltage (Ui): 400V.
Energy measurement accuracy: 1%; Class 1.
Operating consumption: 0.7W.
Rated impulse withstand voltage (Uimp): 4 kV.
Overvoltage category: III.
Communication type: Modbus RS485.
Reboot button: yes.
Indicator light: yes.
Installation: downstream.
Safety class: IP20.
Operating temperature: -25°C~+60°C.
The diameter of the measuring cavity is 9.8mm.
Dimensions: 46.8x52.8x21.3mm.
Warranty: 24 months.
