Smart energy meter, 2P+N, 63A, Wi-Fi, Tuya
Smart energy meter, 2P+N, 63A, Wi-Fi, Tuya
Guarantee
12 month
Delivery from Lithuania in
1 - 4
business days
Smart 2-pole + N (2P+N) electrical switch-meter, supporting remote control via Wi-Fi 2.4 GHz using the Smart Life app; mounted on a DIN rail; designed for control and protection of electrical circuits and various household and commercial electrical appliances. Has an electricity metering function.
Features:
High-power, whole-house Wi-Fi smart switch with integrated energy metering function, allowing real-time monitoring and control of electricity consumption.
The device allows you to monitor voltage, current and accumulated electricity consumption (kWh) both on the LCD screen and in the Smart Life app.
Easily mounted on a 35 mm DIN rail and controlled remotely using the Smart Life app (Android, iOS). Voice control is supported using Amazon Alexa and Google Assistant.
The app allows you to monitor electricity consumption in real time, view historical data, calculate electricity costs, set one-time or recurring schedules, a timer, create automation scenarios, and share device control with other users.
The device has adjustable protection against undervoltage, overvoltage, overcurrent, overload, and electrical leakage. When a dangerous state of the electrical network is detected, the power circuit is automatically disconnected to protect the connected equipment from possible damage.
The automatic reclosing function (Reclosing function) is supported. If the electrical circuit is disconnected due to a short-term fault, the device checks whether the fault has disappeared. If it is confirmed within 1-3 seconds that the fault has been eliminated, the device automatically restores the power supply. If the fault persists, the circuit is left disconnected.
Integrated Wi-Fi and Bluetooth connectivity ensure quick initial pairing of the device with the app and convenient remote control.

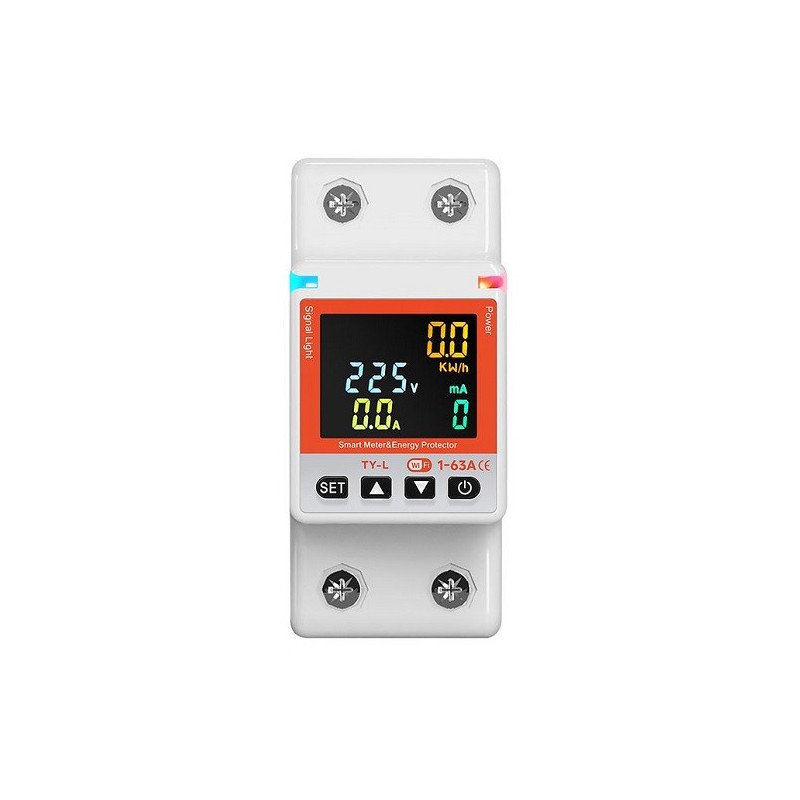

The device has an LCD screen, control buttons and LED indicators showing the device's operating status.
This switch can be integrated into various smart home automation scenarios together with other Smart Life / Tuya devices.
The switch can be used to control electrical circuits in residential buildings, offices and other facilities, monitor energy consumption and protect connected equipment.
Technical data:
Voltage: AC 90-300 V, 50Hz.
Number of protection poles: 2P+N.
Current: 1-63 A (adjustable).
Electricity metering: yes (kWh).
Maximum connected load: up to 13 kW (for general-purpose electrical appliances), up to 6 kW (for electric motors).
Wi-Fi frequency: 2.4 GHz.
Connection: Wi-Fi + Bluetooth.
Wi-Fi standards: IEEE 802.11 b/g/n.
Voice control: Amazon Alexa, Google Assistant.
App: Tuya Smart / Smart Life (Android, iOS).
Undervoltage protection: 76-240 V (adjustable).
Overvoltage protection: 220-265 V (adjustable).
Current leakage protection: 10-99 mA (adjustable).
Installation: on DIN rail, 35 mm.
Operating temperature: -40°C~+100°C.
Dimensions: 36x82x50 mm.
Color: white.
Warranty: 24 months
