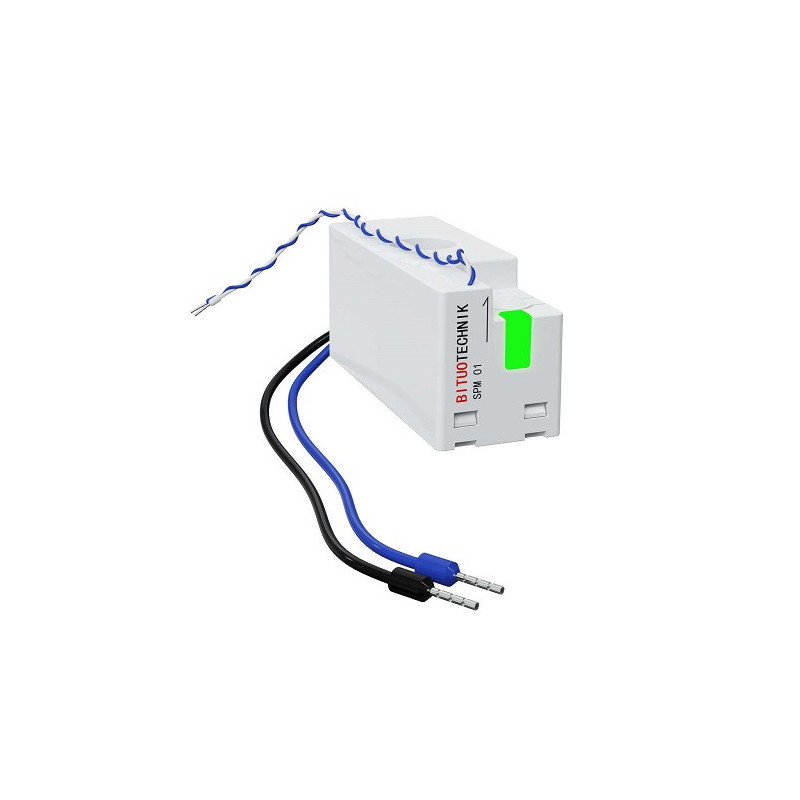

Smart energy meter, 1P+N, 63A, Modbus RS485

Compact smart energy meter, 1P+N, 63A, Modbus RS485
Features:
A smart energy meter is an advanced compact device designed to efficiently and accurately monitor energy consumption in single-phase systems with a neutral wire (1P+N).
Measures voltage, current, power and energy consumption.
It has one measurement channel, so it can only monitor one circuit or phase (e.g. household electrical outlets, lights, small loads).
It uses the Modbus RTU communication model, which is compatible with industrial control systems. It ensures stable and fast communication in large facilities.
Easily and flexibly installed in smaller distribution panels, it does not take up space on a DIN rail. It can be applied in the electrical circuit after the main circuit breaker, fuse or distribution panel, which allows it to monitor the energy consumption of specific electrical circuits or devices.
Ideal for industrial or commercial premises.
Notes:
Do not install this device in front of a circuit breaker or fuse, as the device is not designed for protection and may be damaged by electrical faults.
It is forbidden to install this device downstream of control devices such as contactors, frequency converters or motor starters. This may cause voltage surges, harmonics or instantaneous current surges that will damage the device. Do not use where the current exceeds the device's rated limit of 63A.
The device must be installed in a dry location or using special protective boxes if there is a risk of moisture.
Technical characteristics:
Max. current (Imax): 63 A (1P+N).
Operating voltage: 110~240V AC.
Frequency: 50/60 Hz.
Rated insulation voltage: 250 V.
Energy measurement accuracy: 1%; Class 1.
Operating consumption: 0.5W.
Rated impulse withstand voltage (Uimp): 4 kV.
Overvoltage category: III.
Communication type: Modbus RS485.
Reboot button: yes.
Indicator light: yes.
Installation: downstream.
Safety class: IP20.
Operating temperature: -25°C~+60°C.
The diameter of the measuring cavity is 9.8mm.
Dimensions: 46.8x17.8x21.3mm.
Warranty: 24 months.
