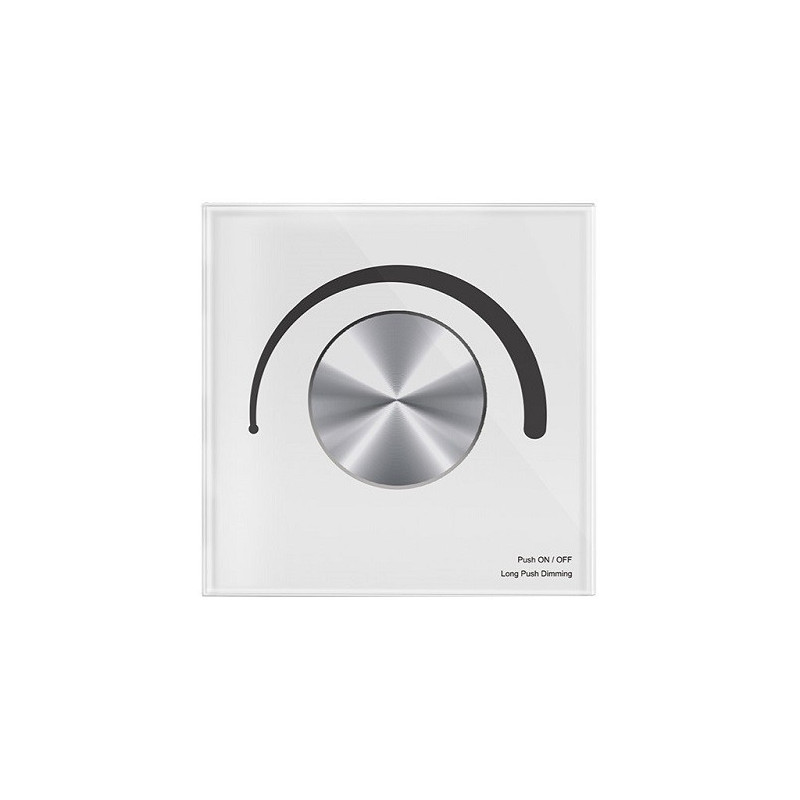

S1-K wall-mounted TRIAC controller, 1 channel

Wall-mounted TRIAC dimmer 100-240V AC 1x 1.5A, single-color LED for strips, incandescent and halogen lamps, 1 channel, with mechanical dial, supports 50 lighting level control.
Features:

• Supports lighting systems: single color.


• Allows you to smoothly dim or brighten the lighting. Compatible with dimmable LED strips/bulbs, incandescent lamps, halogen lamps.


• The rotating dial allows you to conveniently turn the light on/off and adjust the brightness in 50 levels.


• A long press on the wheel allows you to adjust the lighting brightness in 256 levels.


• Has TRIAC control function.


• Can be used as a remote control.


• The operating frequency is 2.4GHz, which ensures a stable signal at a distance of up to 10m, it is less disturbed by obstacles such as walls, partitions, etc.


• Has a matching button (MATCH) for connecting remote controls.


• Luxurious design, glass panel and silver-colored dial. Mounted on the wall like a switch.


• The control regulator is universal and can work with various LED controllers.


• Protection against overload, overheating and short circuit.


• Certificates: CE (EMC/LVD), RoHS.

Technical data:

• Product model: S1-K.


• Compatibility: Skydance V1, V2-L,V3, V3-L, V3-X, V4-L, V4-D, VP.


• Number of channels: 1.


• Controlled lighting systems: single color.


• Operating frequency: RF 2.4GHz.


• Supply voltage: 100-240V AC.


• Output voltage: 100-240V AC.


• Output current: 1.5A.


• Power: 200W@220V; 100W@110V (LED / TRIAC); 400W@220V; 200W@110V (for incandescent/halogen lamps).


• Dimming range: 0-100%.


• Buttons: 1 (rotating and pressing) wheel.


• Operating distance: up to 10m.


• Safety class: IP20 (not waterproof).


• Suitable wire cross-sectional area: 0.5-2.0 mm².


• Certificates: CE, EMC, LVD, RED, RoHS.


• Operating temperature: -30~+55°C.


• Dimensions: 86 x 86 x 48 mm.


• Color: white.


• Weight: 181g.

Package: controller, 2x mounting screws, user manual.
