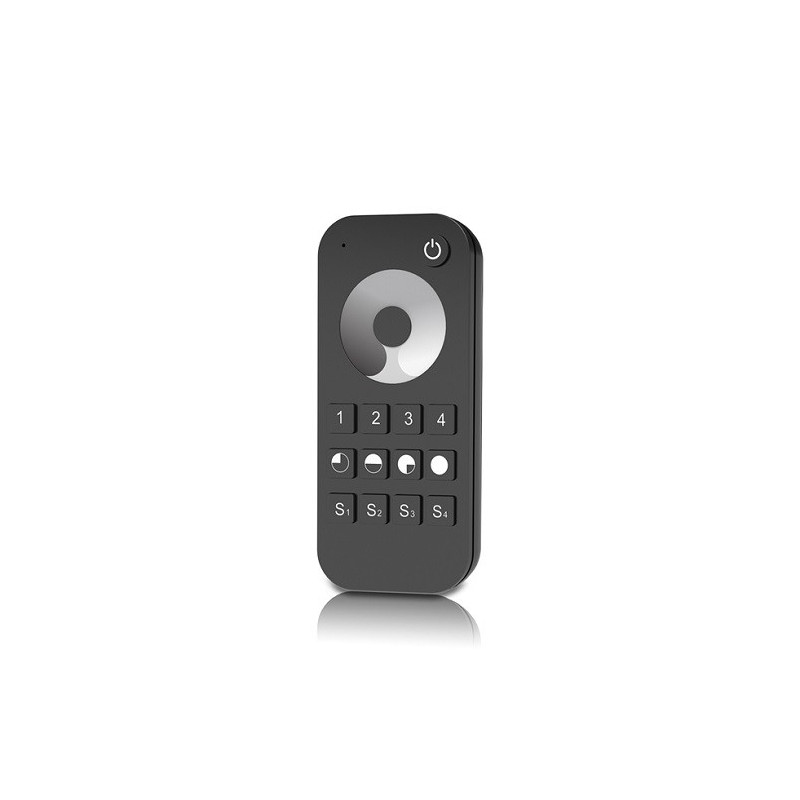

RT6 remote control, 4 zones

RF remote control LED for controlling the strips

• for setting the brightness of one color, 2.4GHz, 4 zones, with sensor wheel,


• supports 4 scenarios,


• 10 lighting levels control.

Features:

• Supports lighting systems: single color.


• Can control one lighting zone with up to 4 different scenarios.


• Allows you to smoothly dim or brighten the lighting. Compatible with dimmable LED strips / bulbs.


• The touch wheel allows you to conveniently adjust the brightness of the lighting.


• Four standard lighting level buttons: 100%, 75%, 50% and 25% are designed for easier light control.


• Automatically goes into "sleep" mode. Activated by pressing any button.


• In standby mode, the batteries last up to 2 years.


• The operating frequency of the RF remote control is 2.4GHz, which ensures a stable signal at a distance of up to 30m, and it is less affected by obstacles such as walls, partitions, etc.


• Convenient design, designed to be held in the hand, compact, pocket-sized.


• The RT6 remote control is universal and can work with various LED controllers or wireless wall switches.


• Comes with a convenient wall mount.

Technical data:

• Product model: RT6.


• Compatibility: Skydance V1, V3, V4-D, V4, V4-L, VP, V2, V2-L.


• Number of zones: 4.


• Controlled lighting systems: single color.


• Operating frequency: RF 2.4GHz.


• Operating current: lt;5mA.


• Standby current: lt;10uA.


• Operating distance: up to 30m.


• Power supply: 3V DC 2x AAA batteries (included).


• LED indicator: 1.


• Buttons: 1 touch ring and 13 buttons.


• Safety class: IP20 (not waterproof).


• Bracket installation: external (2 screws/sticker).


• Certificates: CE, EMC, LVD, RED, RoHS.


• Operating temperature: -30~+55°C.


• Remote control dimensions: 122 x 53 x 17.5 mm.


• Holder dimensions: 53 x 58 x 22 mm.


• Color: black.


• Weight: 60g.

Package: control panel, holder, 2x batteries, 2x holder mounting screws, adhesive tape, user manual.
