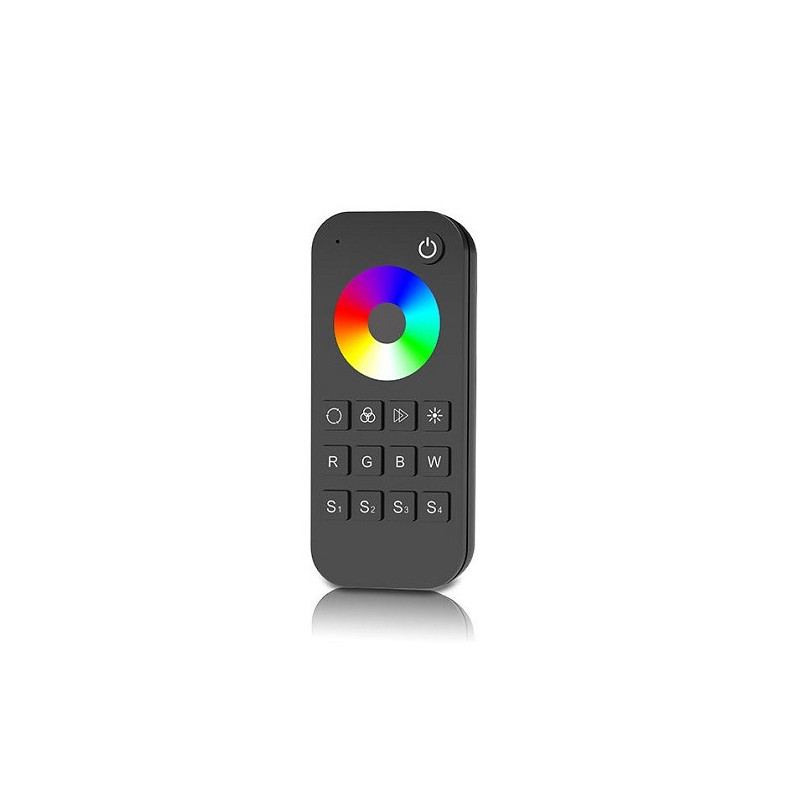

RT4 remote control, 1 zone RGB / RGBW

RF remote control LED for controlling the strips

• RGBW, 2.4GHz, 1 zone, with touch wheel, supports 4 scenarios, 10 lighting level control.

Features:

• Supports lighting systems: single color, RGB, RGBW.


• Can control one lighting zone with up to 4 different scenarios.


• Allows you to smoothly dim or brighten the lighting in 10 levels. Compatible with dimmable LED strips / bulbs.


• The touch wheel allows you to conveniently adjust the lighting color.


• Allows you to control the RGB color palette and color flicker speed.


• The standard color buttons activate the corresponding color: R - red, G - green, B - blue, W - white.


• Independent dimming function for each R, G, B, W channel allows for a wide range of color shades.


• Automatically goes into "sleep" mode. Activated by pressing any button.


• In standby mode, the batteries last up to 2 years.


• The operating frequency of the RF remote control is 2.4GHz, which ensures a stable signal at a distance of up to 30m, and it is less affected by obstacles such as walls, partitions, etc.


• Convenient design, designed to be held in the hand, compact, pocket-sized.


• The RT4 remote control is universal and can work with various LED controllers or wireless wall switches.


• Comes with a convenient wall mount.

Technical data:

• Product model: RT4.


• Compatibility: Skydance V3, V3-L, V3-X, V4-L, V4-D, VP.


• Number of zones: 1.


• Controlled lighting systems: single color / RGB / RGBW.


• Operating frequency: RF 2.4GHz.


• Operating current: lt;5mA.


• Standby current: lt;10uA.


• Operating distance: up to 30m.


• Power supply: 3V DC 2x AAA batteries (included).


• LED indicator: 1.


• Buttons: 1 touch ring and 13 buttons.


• Safety class: IP20 (not waterproof).


• Bracket installation: external (2 screws/sticker).


• Certificates: CE, EMC, LVD, RED, RoHS.


• Operating temperature: -30~+55°C.


• Remote control dimensions: 122 x 53 x 17.5 mm.


• Holder dimensions: 53 x 58 x 22 mm.


• Color: black.


• Weight: 60g.

• Package: control panel, holder, 2x batteries, 2x holder mounting screws, adhesive tape, user manual.
