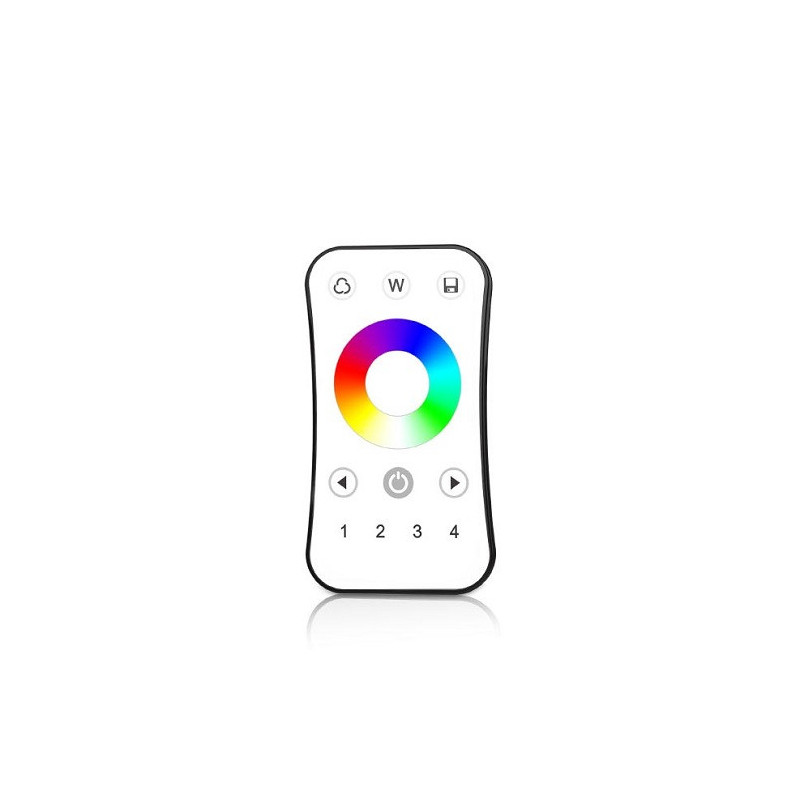

R8 remote control, 4 zones, RGB / RGBW

RF remote control LED for controlling the strips

• RGB/RGBW color adjustment, 2.4GHz, 4 zones, with touch wheel, supports 10 lighting levels and speed control.

Features:

• Supports lighting systems: RGB/RGBW.


• Supports lighting scenarios.


• Allows you to smoothly dim or brighten the lighting. Compatible with dimmable LED strips/bulbs.


• The touch wheel allows you to conveniently adjust the lighting color.


• The brightness/speed buttons allow you to adjust the lighting in 256 levels and control the RGB color flicker speed.


• Automatically goes into "sleep" mode. Activated by pressing any button.


• The operating frequency of the RF remote control is 2.4GHz, which ensures a stable signal at a distance of up to 30m, and it is less affected by obstacles such as walls, partitions, etc.


• Convenient design, designed to fit in your hand, compact, pocket-sized, and ultra-thin.


• The R8 remote control is universal and can work with various LED controllers or wireless wall switches.


• Comes with a convenient wall mount.

Technical data:

• Product model: R8.


• Compatibility: Skydance V3, V3-L, V3-X, V4-L, V4-D, VP.


• Number of zones: 4.


• Controlled lighting systems: RGB/RGBW.


• Operating frequency: RF 2.4GHz.


• Operating current: lt;5mA.


• Standby current: lt;10uA.


• Operating distance: up to 30m.


• Power supply: 3V DC 1x CR2032 battery (included).


• Buttons: 1 touch ring and 10 buttons.


• Safety class: IP20 (not waterproof).


• Bracket installation: external (2 screws/sticker).


• Certificates: CE, EMC, LVD, RED, RoHS.


• Operating temperature: -30~+55°C.


• Remote control dimensions: 107 x 58.5 x 9 mm


• Holder dimensions: 68 x 63 x 37 mm.


• Color: white.


• Weight: 48g.

• Package: control panel, holder, 1x battery, 2x holder mounting screws, adhesive tape, user manual.
