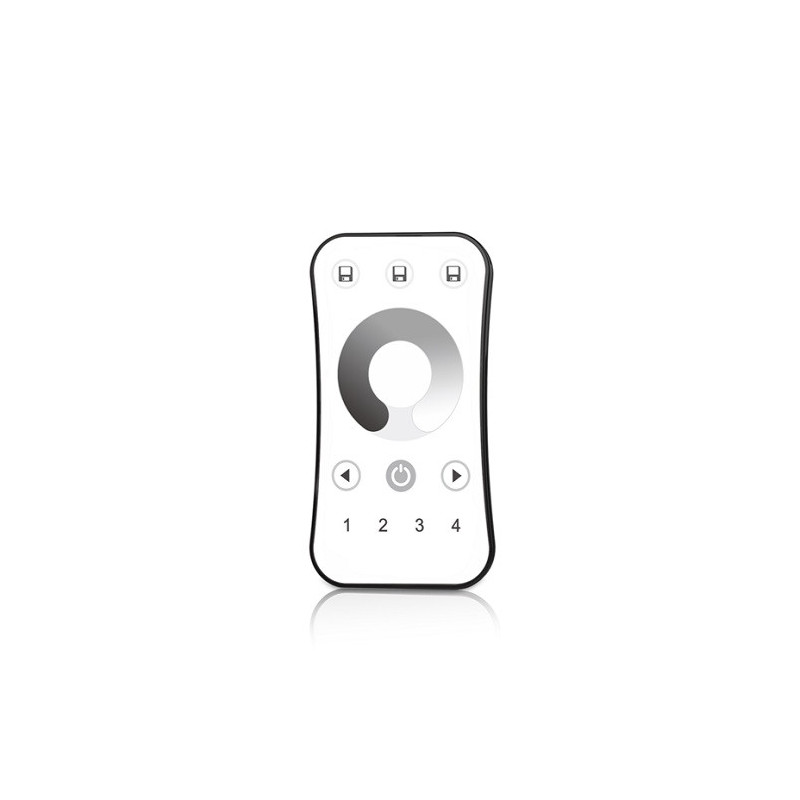

R6 remote control, 4 zones

RF remote control LED for controlling the strips

• to set the brightness of one color, 2.4GHz, 4 zones, with a touch wheel, supports 3 scenarios, 10 lighting level control.

Features:

• Supports lighting systems: single color.


• Can control one lighting zone with 3 saved lighting scenarios.


• Allows you to smoothly dim or brighten the lighting. Compatible with dimmable LED strips/bulbs.


• The touch wheel allows you to conveniently adjust the lighting brightness in 256 levels.


• Automatically goes into "sleep" mode. Activated by pressing any button.


• The operating frequency of the RF remote control is 2.4GHz, which ensures a stable signal at a distance of up to 30m, and it is less affected by obstacles such as walls, partitions, etc.


• Convenient design, designed to fit in your hand, compact, pocket-sized, and ultra-thin.


• The R6 remote control is universal and can work with various LED controllers or wireless wall switches.


• Comes with a convenient wall mount.

Technical data:

• Product model: R6.


• Compatibility: Skydance V1, V3, V4-D, V4, V4-L, VP, V2, V2-L; V3, V3-L, V3-X, V4-L, V4-D, VP.


• Number of zones: 4.


• Controlled lighting systems: single color.


• Operating frequency: RF 2.4GHz.


• Operating current: lt;5mA.


• Standby current: lt;10uA.


• Operating distance: up to 30m.


• Power supply: 3V DC 1x CR2032 battery (included).


• Buttons: 1 touch ring and 10 buttons.


• Safety class: IP20 (not waterproof).


• Bracket installation: external (2 screws/sticker).


• Certificates: CE, EMC, LVD, RED, RoHS.


• Operating temperature: -30~+55°C.


• Remote control dimensions: 107 x 58.5 x 9 mm


• Holder dimensions: 68 x 63 x 37 mm.


• Color: white.


• Weight: 48g.

Package: control panel, holder, 1x battery, 2x holder mounting screws, adhesive tape, user manual.
