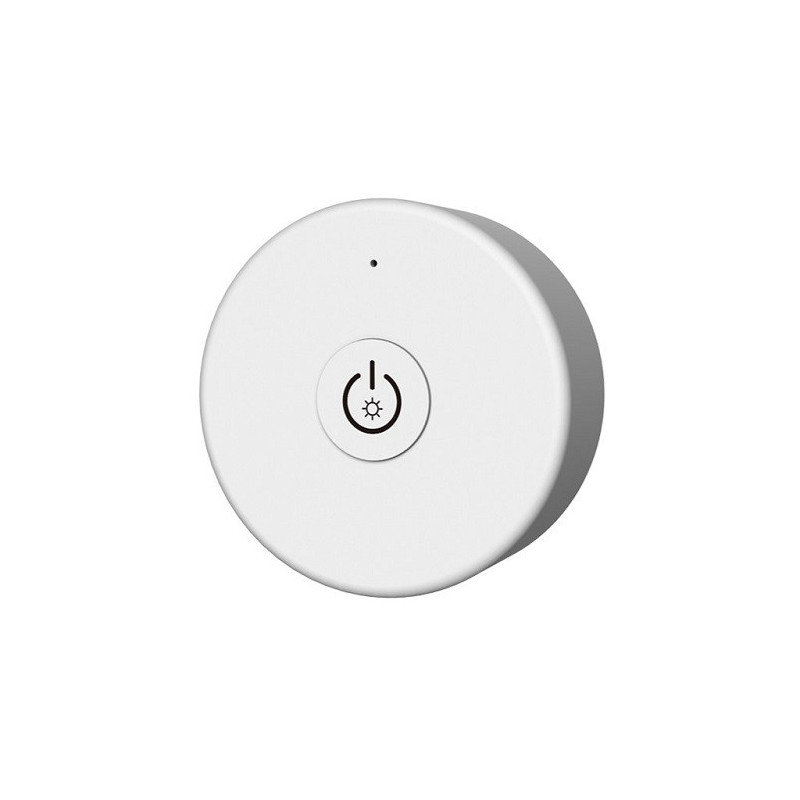

R1-1 remote control, 1 zone, magnetic

RF remote control LED for controlling the strips

• For setting the brightness of one color, 2.4GHz, 1 zone, with magnetic back, works with bell-type switches

Features:

• Supports lighting systems: single color.


• Minimal LED controller - portable button.


• Press to turn the light on/off. Press and hold 1-6s to adjust the light intensity.


• Can work with bell-type switches.


• With LED light, easy to find in the dark.


• Allows you to smoothly dim or brighten the lighting. Compatible with dimmable LED strips/bulbs.


• The operating frequency of the RF remote control is 2.4GHz, which ensures a stable signal at a distance of up to 30m, and it is less affected by obstacles such as walls, partitions, etc.


• The R1-1 control button is universal and can work with various LED controllers or wireless wall switches.


• The button is portable, with a magnetic back, convenient to attach to metal surfaces.

Technical data:

• Product model: R1-1.


• Compatibility: Skydance V1, V1-L, V2-L, V3, V3-L, V3-X, V4-L, V5.


• Number of zones: 1.


• Controlled lighting systems: single color.


• Operating frequency: RF 2.4GHz.


• Operating current: lt;5mA.


• Standby current: lt;2uA.


• Operating distance: up to 30m.


• Power supply: 3V DC 1x CR2032 battery (included).


• LED indicator: 1.


• Buttons: 1 power button.


• Safety class: IP20 (not waterproof).


• Holder installation: external (magnet / 2 screws / sticker).


• Certificates: CE, EMC, LVD, RED, RoHS.


• Operating temperature: -30~+55°C.


• Remote control dimensions: 43 x 43 x 17 mm.


• Color: white.


• Weight: 20g.

Package: remote control, 1x battery, adhesive tape, user manual.
