Proximity card reader with integrated controller, Mifare, IP66

Proximity card reader with integrated controller (standalone), Mifare, IP66.
Features:

• It is a compact, simple-designed, autonomous access control system that ensures contactless entry.


• The access control controller is easily programmed with a remote control (add/delete card).


• Designed for extreme weather conditions of -40°C~+60°C, it has IP66 water and dust resistance, suitable for outdoor or indoor use.


• Built-in burglary protection.


• A remote control is included. Also included are the following cards: Master Add Card and Master Delete Card.

Technical data:

• Number of users (cards): 1000.


• Supported card frequency: 13.56MHz (Mifare).


• Voltage: DC 9~24 V.


• Current: <40 mA.


• Card scanning distance: 3~6 cm.


• Number of doors supported: 1.

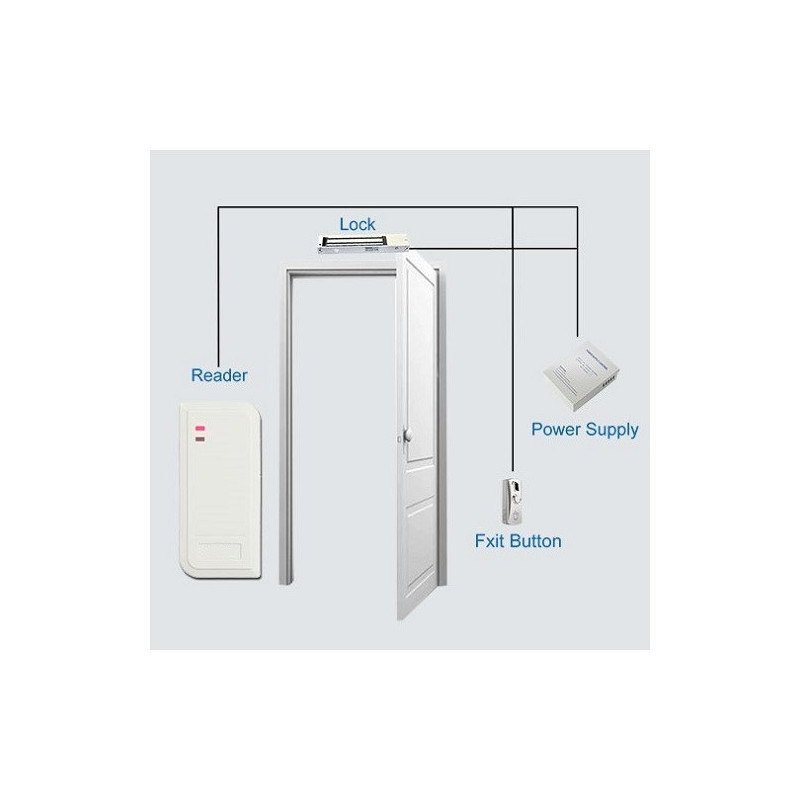

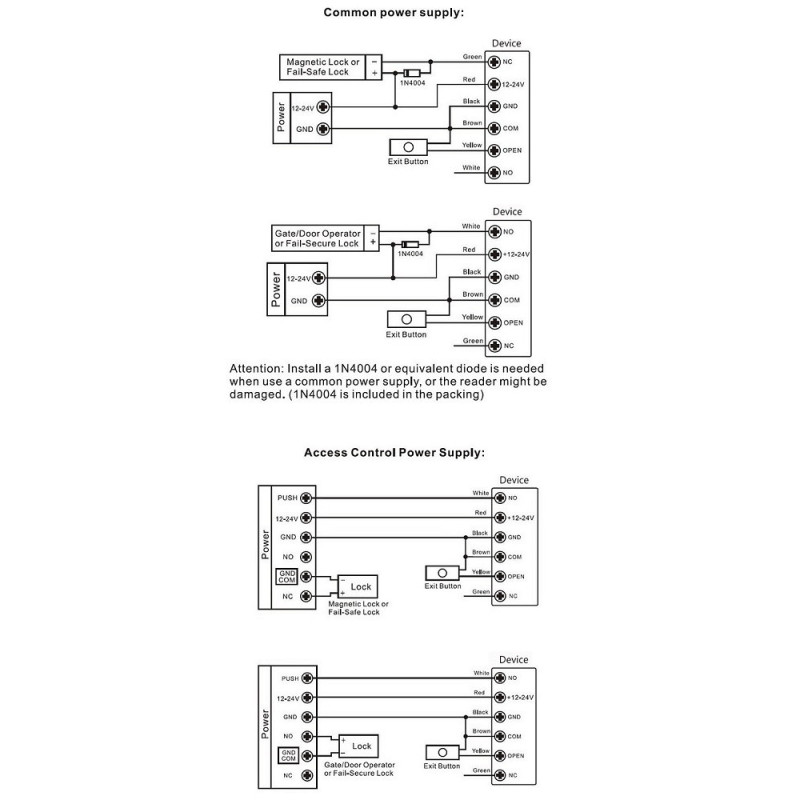

• Wire connections: for lock, exit button.


• Relay: 1 (for lock, No, Nc, Com contacts).


• Adjustable relay activation time: 0-99 seconds (5 seconds by default).


• Safety class: IP66.


• Mounting: on the wall.


• Material: ABS.


• Operating temperature: -40°C~+60°C.


• Relative humidity: 20%~98%RH.


• Dimensions: 103 x 48 x 20 mm.


• Weight: 100g.
