Access Control System - K4-MF Mifare Keypad Reader IP66 -40°C to +60°C
Product reference:
14-9990000990313
Compact standalone access control solution with keypad and Mifare card reader, suitable for extreme weather conditions (IP66). Supports 1,000 users with access modes: card, PIN or card + PIN, operates in temperatures from -40°C to +60°C.
Access Control System - K4-MF Mifare Keypad Reader IP66 -40°C to +60°C
Product reference:
14-9990000990313
Compact standalone access control solution with keypad and Mifare card reader, suitable for extreme weather conditions (IP66). Supports 1,000 users with access modes: card, PIN or card + PIN, operates in temperatures from -40°C to +60°C.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
4 - 5
business days

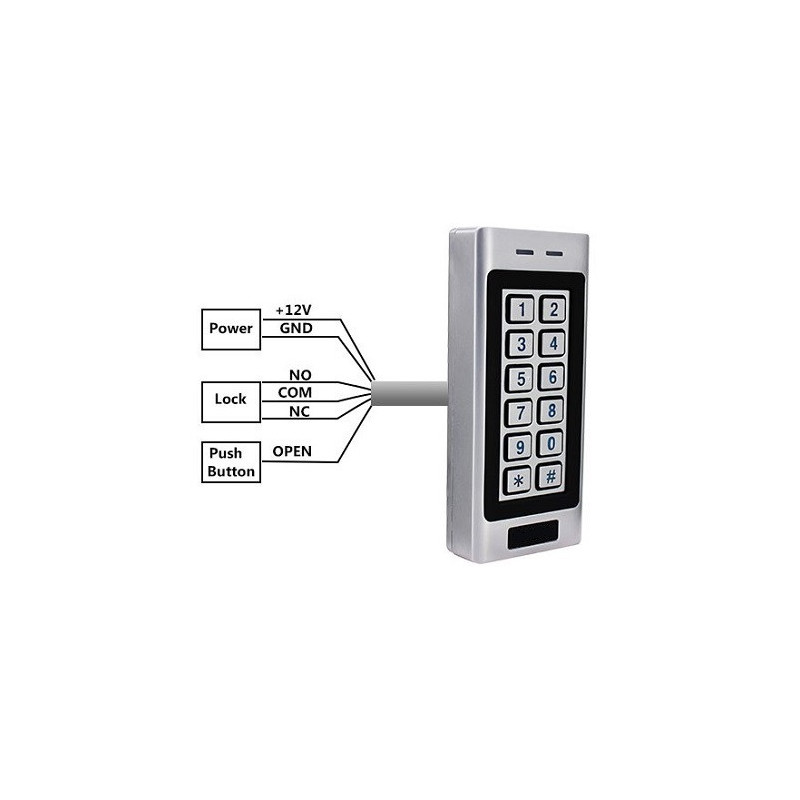

Independent Access Control System With Keypad And Card Reader, K4-MF, Mifare, IP66
Compact standalone access control system with keypad and Mifare card reader, suitable for extreme weather conditions, IP66 rated. Supports 1,000 users with access modes: card, PIN or card+PIN, operates in a temperature range from -40°C to +60°C.
- Compact independent access control system with integrated keypad and Mifare card reader.
- IP66 class, waterproof and dustproof, suitable for extreme weather conditions (-40°C to +60°C).
- Supports 3 access modes: card, PIN or card+PIN with a backlit keypad for convenient use in the dark.
- Durable metal housing designed to resist damage and vandalism.
Features | |
|---|---|
| Product Type | Independent Access Control System |
| Model | K4-MF |
Specifications | |
| Number of Users | 1,000 |
| PIN Length | 4-6 digits |
| Operating Frequency | 13.56MHz |
| Card Reader Type | Mifare (ISO14443 Type A) |
| Operating Voltage | DC 9~18V |
| No-load Current | < 50 mA |
| Operating Current | < 80mA |
| Number of Doors Supported | 1 |
| Relay Output | 1 (for lock, No, Nc, Com contacts) |
| Adjustable Relay Output Time | 0-99 seconds (5 seconds default) |
| Installation | By the wall |
| Material | Zinc alloy |
| Dimensions | 130 x 56 x 23 mm |
| Weight | 5000 grams |
| Relative Humidity | 20%~98% RH |
Security Warning | |
| This product does not require any specific safety warnings. | |
| Height | 120mm |
| Length | 25 mm |
| Weight | 350 g |
| Width | 80mm |
