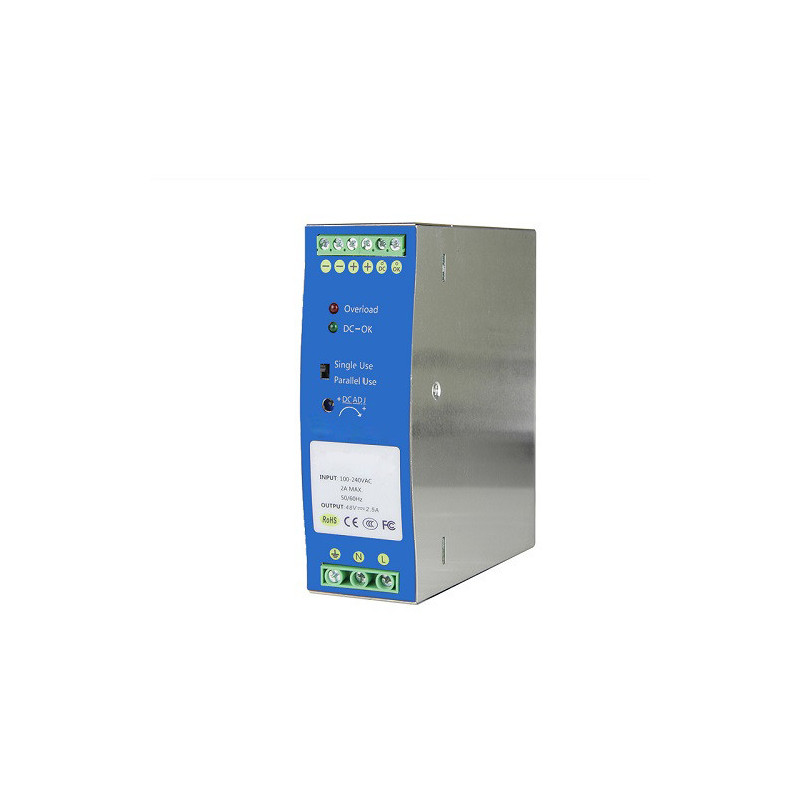

Power Supply - Economical Slim 120W 48V 2.5A DIN Rail
Product reference: 14-9990000700554

Economical slim 120W DIN rail power supply with 48V output voltage and 2.5A nominal current. Operates in temperatures from -30°C to 70°C and has protection against short circuit, overload and overvoltage.

  • New
Maitinimo Blokas - Ekonomiškas Plonas 120W 48V 2.5A DIN Bėgelis

Power Supply - Economical Slim 120W 48V 2.5A DIN Rail

Product reference: 14-9990000700554

Economical slim 120W DIN rail power supply with 48V output voltage and 2.5A nominal current. Operates in temperatures from -30°C to 70°C and has protection against short circuit, overload and overvoltage.

You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
9659 €
Product in warehouse

Guarantee
24 month

Delivery from Europe in
4 - 5
business days

Your message has been successfully sent!
Fill in the required fields*

Power supply 48V, 120W, DIN


Economical slim 120W DIN rail power supply with output voltage 48V and nominal current 2.5A. Operates in temperatures from -30°C to 70°C and has protection against short circuit, overload and overvoltage.


  • Economical slim design, suitable for DIN rail.
  • Wide operating temperature range: -30°C to 70°C with free air convection cooling.
  • Reliable protection against short circuit, overload and overvoltage.
  • High efficiency class (> 91%) and meets EU standards for harmonic current emissions.

Features

Product type Power source
Model Power supply 48V, 120W, DIN

Specifications

Input voltage range 90-264V AC
Frequency 47-63Hz
Output voltage 48V DC
Adjustable voltage range 47~56V DC
Rated current 2.5A
Rated power 120W
AC current 2.2A/115V, 1.1A/230V
Waves and noise 100mV p-p
Efficiency > 91%
Leakage current <0.25mA/264V AC
Operating temperature -30°C to +70°C
Operating humidity 20% - 95% RH
Dimensions 135 x 121 x 40 mm
Certificates RoHS, CE
