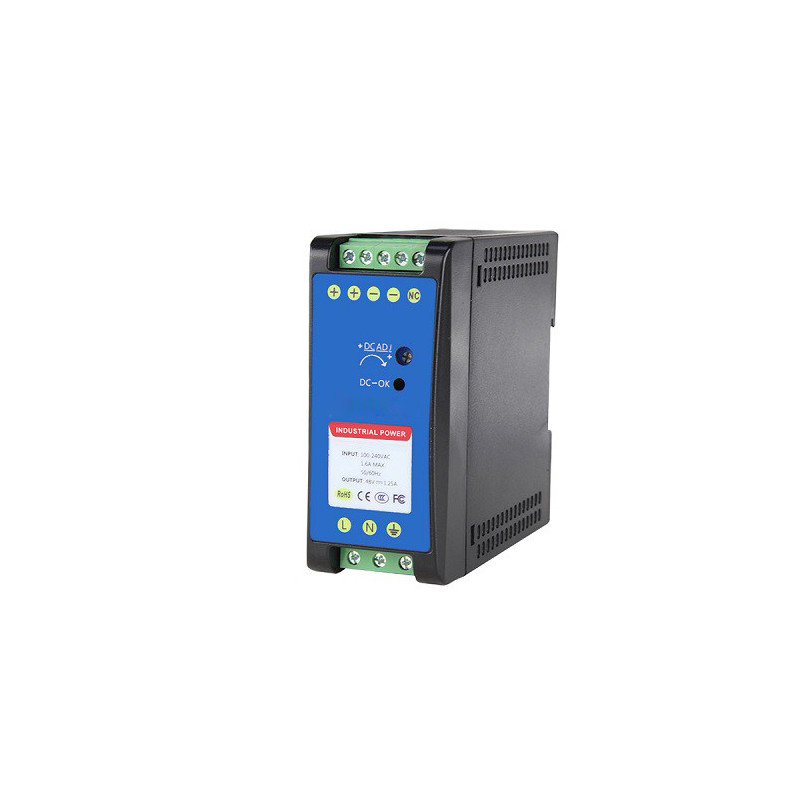

Power supply 48V, 60W, DIN
Product reference: 14-9990000700547
Input voltage: AC 90-264V. Frequency: 47-63Hz. Output voltage: DC 48V. Ability to adjust the output voltage 47~56V. Maximum output current: 1.25A.
Power supply 48V, 60W, DIN

Power supply 48V, 60W, DIN

Product reference: 14-9990000700547
Input voltage: AC 90-264V. Frequency: 47-63Hz. Output voltage: DC 48V. Ability to adjust the output voltage 47~56V. Maximum output current: 1.25A.
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
36,77 €
Product in warehouse

Guarantee
24 month

Delivery from Europe in
4 - 5
business days

Your message has been successfully sent!
Fill in the required fields*
Not available

Switching power supply 48V, 1.25A, 60W, DIN.
Features:



  • Switching power supply, can be mounted on a DIN rail (TS-35/7.5 or TS-35/15).

  • Protection: against overload, voltage surge, short circuit.

  • It can operate at temperatures from -40°C to +70°C and is cooled by free air convection.

  • High efficiency, durable, reliable, narrow profile, economical.

  • Complies with EU electromagnetic compatibility standards EN61000-3-2.



Technical data:



  • Input voltage: AC 90-264V. Frequency: 47-63Hz.

  • Output voltage: DC 48V.

  • Possibility to adjust the output voltage 47~56V.

  • Maximum output current: 1.25A.

  • Maximum power: 60W.

  • Irregularities and noise: 100mV pp.

  • AC voltage: 1.4A/115V, 0.8A/230V.

  • Efficiency: gt; 89%.

  • Leakage current in the input circuit at AC 264V: to 0.25mA.

  • Operating temperature: from -40°C to +70°C.

  • Operating humidity: 20%-95%RH.

  • Dimensions: 93x102.5x41mm.

  • Certificates: RoHS, CE.



Height90 mm
Length100mm
Weight210 g
Width40mm
