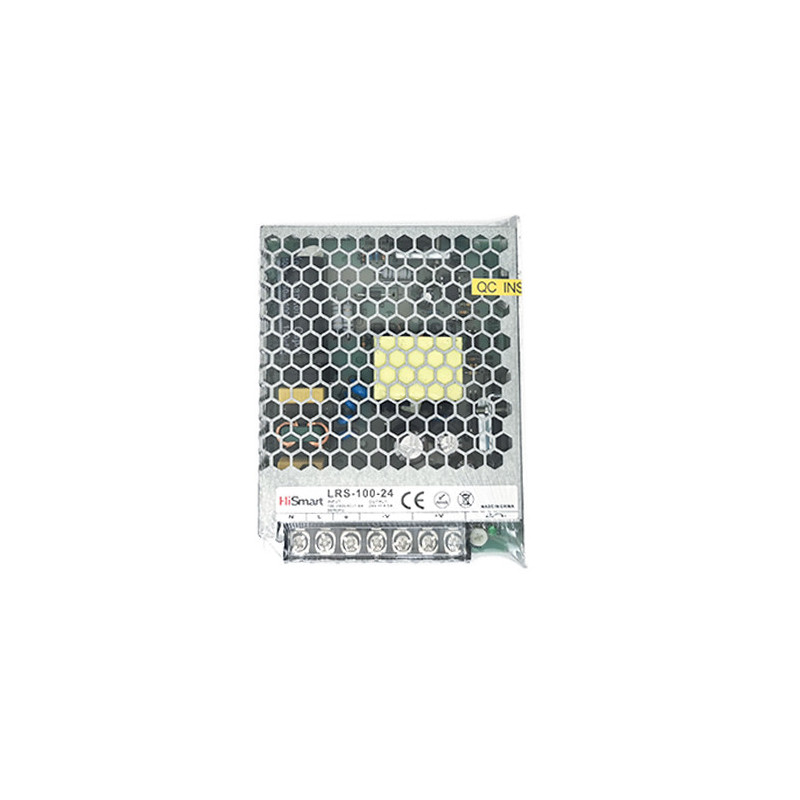

Power Supply 24v, 4.5a, 100w
Product reference:
14-9990000700301
Switching power supply 24V, 4.5A, 100W is a power supply unit that provides regulated DC power for electronic devices. It features a 4.5A output, 100W power, and a regulated design to ensure stable operation. The main features are compact size, wide input voltage range, and low ripple and noise.
Power Supply 24v, 4.5a, 100w
Product reference:
14-9990000700301
Switching power supply 24V, 4.5A, 100W is a power supply unit that provides regulated DC power for electronic devices. It features a 4.5A output, 100W power, and a regulated design to ensure stable operation. The main features are compact size, wide input voltage range, and low ripple and noise.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
4 - 5
business days
Not available
Switching power supply 24V, 4.5A, 100W.
Features:
- Narrow profile open type power supply operating in pulsed mode.
- Miniature size, 1U profile, light weight, high efficiency.
- Protection: against overload, voltage surge, short circuit.
- Cooling by free air convection.
- No-load power consumption: lt;0.5W.
- Working altitude up to 5000 meters.
Technical data:
- Power supply type: switching.
- Input voltage: AC 90-264V. Frequency: 47-63Hz.
- Output voltage: DC 24V.
- Ability to adjust the output voltage within ±10%.
- Maximum output current: 4.5A.
- Maximum power: 108W.
- Irregularities and noise: 150mV pp.
- AC voltage: 1.9A/115V, 1.2A/230V.
- Efficiency: 90%.
- Leakage current in the input circuit at AC 240V: to 0.75mA.
- MBTF: min. 705000 hours.
- Operating temperature: from -30°C to +70°C.
- Operating humidity: 20%-90%RH.
- Dimensions: 129x97x30mm.
- Weight: 0.34kg.
| Height | 50mm |
| Length | 150mm |
| Weight | 350 g |
| Width | 100mm |
