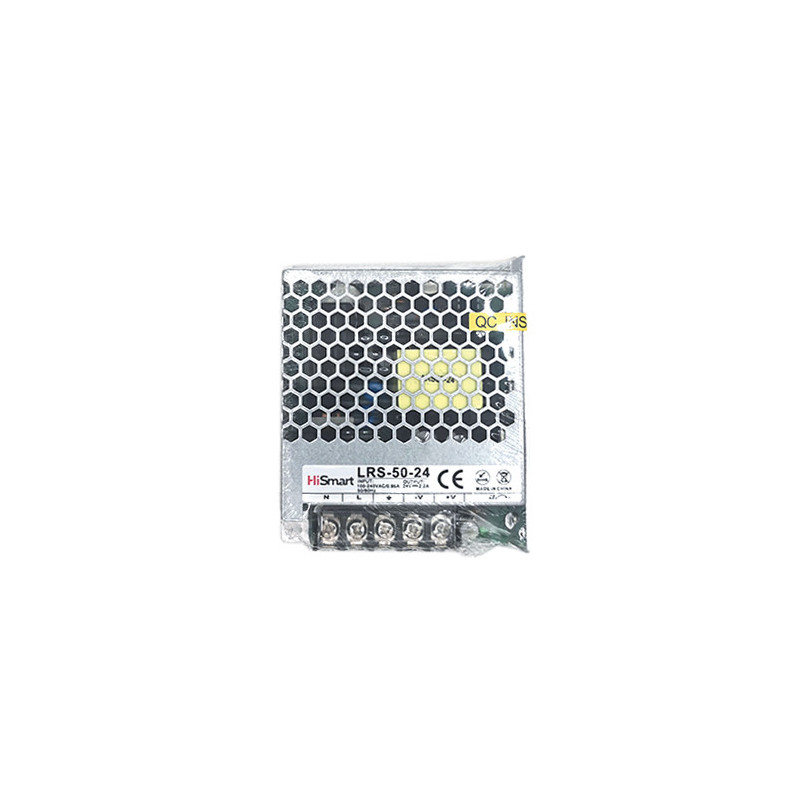

Power supply 24V, 2.2A, 50W

Switching power supply 24V, 2.2A, 50W.
Features:

• Narrow profile open type power supply operating in pulsed mode.


• Miniature size, 1U profile, low weight, high efficiency.


• Protection: against overload, voltage surge, short circuit.


• Cooling by free air convection.


• No-load power consumption: lt;0.5W.


• Working altitude up to 5000 meters.

Technical data:

• Power supply type: switching.


• Input voltage: AC 90-264V. Frequency: 47-63Hz.


• Output voltage: DC 24V.


• Ability to adjust the output voltage within ±10%.


• Maximum output current: 2.2A.


• Maximum power: 52.8W.


• Irregularities and noise: 150mV pp.


• AC voltage: 0.95A/115V, 0.56A/230V.


• Efficiency: 88%.


• Leakage current in the input circuit at AC 240V: to 0.75mA.


• MBTF: min. 630000 hours.


• Operating temperature: from -30°C to +70°C.


• Operating humidity: 20%-90%RH.


• Dimensions: 99x82x30mm.


• Weight: 0.21kg.
