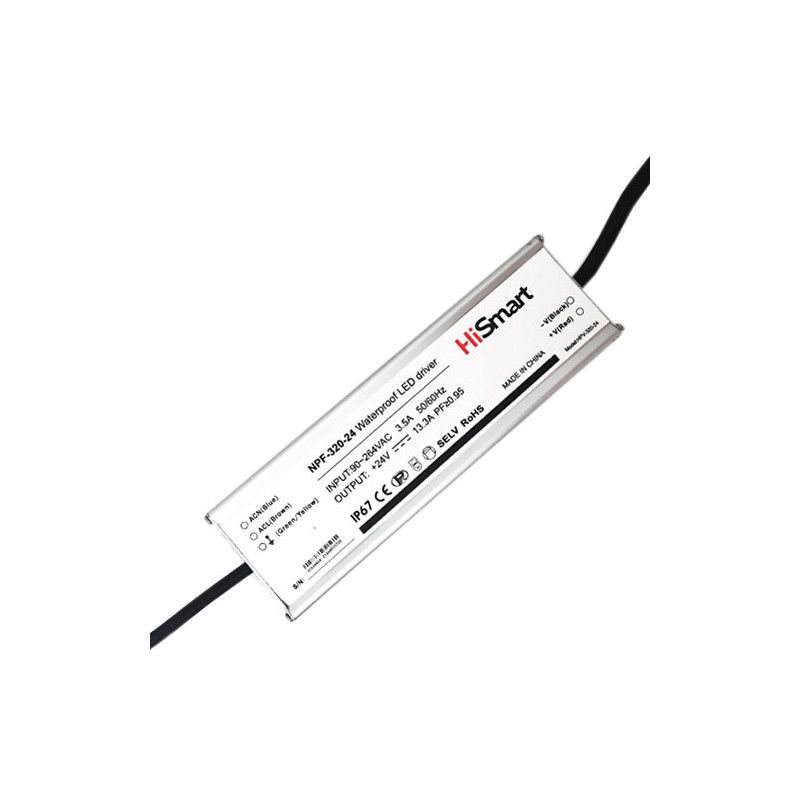

Power supply 24V, 13.3A, 320W, PFC, IP67

Switching power supply 24V, 13.3A, 320W, PFC, safety class IP67.
Features:

• Universal 24V power supply operating in pulsed mode.


• Built-in PFC (power factor correction).


• Protection: against overload, overheating, voltage surge, short circuit.


• Cooling by free air convection.


• Safety class IP67 (water resistance), suitable for both indoor and outdoor installation.

Technical data:

• Input voltage: AC 90-264V. Frequency: 47-63Hz.


• Output voltage: DC 24V.


• Maximum output current: 13.3A.


• Maximum power: 319.2W.


• Irregularities and noise: 150mV pp.


• AC voltage: 6A/115V, 4A/230V.


• Efficiency: 92%.


• Leakage current in the input circuit at AC 240V: to 0.75mA.


• Operating temperature: from -30°C to +60°C.


• Operating humidity: 20%~90%RH.


• Dimensions: 249x69x39mm.


• Weight: 1.3kg.
