Power supply 12V, 8.3A, 120W, DIN

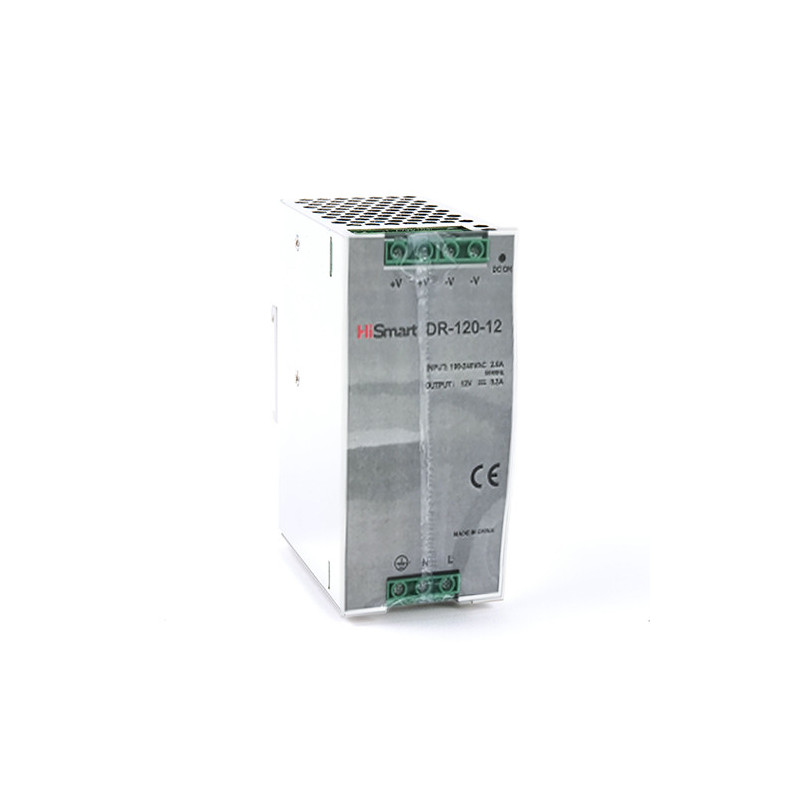

Switching power supply 12V, 8.3A, 120W, DIN.
Features:

• The power supply operating in pulse mode can be mounted on a 35mm DIN rail.


• Protection: against overload, voltage surge, short circuit.


• Cooling by free air convection.


• Small volume, low weight, high efficiency.

Technical data:

• Power supply type: switching.


• Input voltage: AC 90-264V. Frequency: 47-63Hz.


• Output voltage: DC 12V.


• Ability to adjust the output voltage within -9% /+10%.


• Maximum output current: 8.3A.


• Maximum power: 99.6W.


• Irregularities and noise: 100mV pp.


• AC voltage: 2.6A/115V, 1.6A/230V.


• Efficiency: 82%.


• Leakage current in the input circuit at AC 240V: to 1mA.


• Operating temperature: from -20°C to +60°C.


• Operating humidity: 20%-90%RH.


• Dimensions: 65.5x125.2x100mm.


• Weight: 0.8kg.
