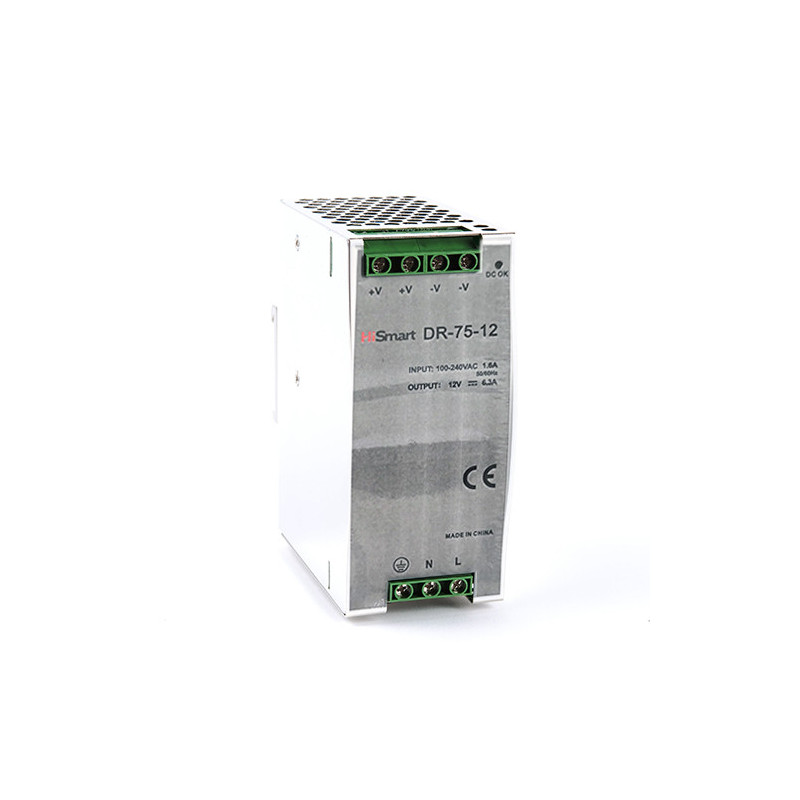

Power supply 12V, 6.3A, 75W, DIN
Product reference: 14-9990000700516
Power supply type: switching. Input voltage: AC 90-264V. Frequency: 47-63Hz. Output voltage: DC 12V. Ability to adjust the output voltage within the limits of -9% /+10%.
Power supply 12V, 6.3A, 75W, DIN

Power supply 12V, 6.3A, 75W, DIN

Product reference: 14-9990000700516
Power supply type: switching. Input voltage: AC 90-264V. Frequency: 47-63Hz. Output voltage: DC 12V. Ability to adjust the output voltage within the limits of -9% /+10%.
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
36,75 €
Product in warehouse

Guarantee
24 month

Delivery from Europe in
4 - 5
business days

Your message has been successfully sent!
Fill in the required fields*
Not available

Switching power supply 12V, 6.3A, 75W, DIN.
Features:



  • The power supply operating in pulse mode can be mounted on a 35mm DIN rail.

  • Protection: against overload, voltage surge, short circuit.

  • Cooling by free air convection.

  • Small volume, low weight, high efficiency.



Technical data:



  • Power supply type: switching.

  • Input voltage: AC 90-264V. Frequency: 47-63Hz.

  • Output voltage: DC 12V.

  • Ability to adjust the output voltage within -9% /+10%.

  • Maximum output current: 6.3A.

  • Maximum power: 76W.

  • Irregularities and noise: 100mV pp.

  • AC voltage: 1.6A/115V, 0.96A/230V.

  • Efficiency: 79%.

  • Leakage current in the input circuit at AC 240V: to 1mA.

  • Operating temperature: from -20°C to +60°C.

  • Operating humidity: 20%-90%RH.

  • Dimensions: 55.5x125.2x100mm.

  • Weight: 0.6kg.



Height110 mm
Length100mm
Weight350 g
Width78 mm
