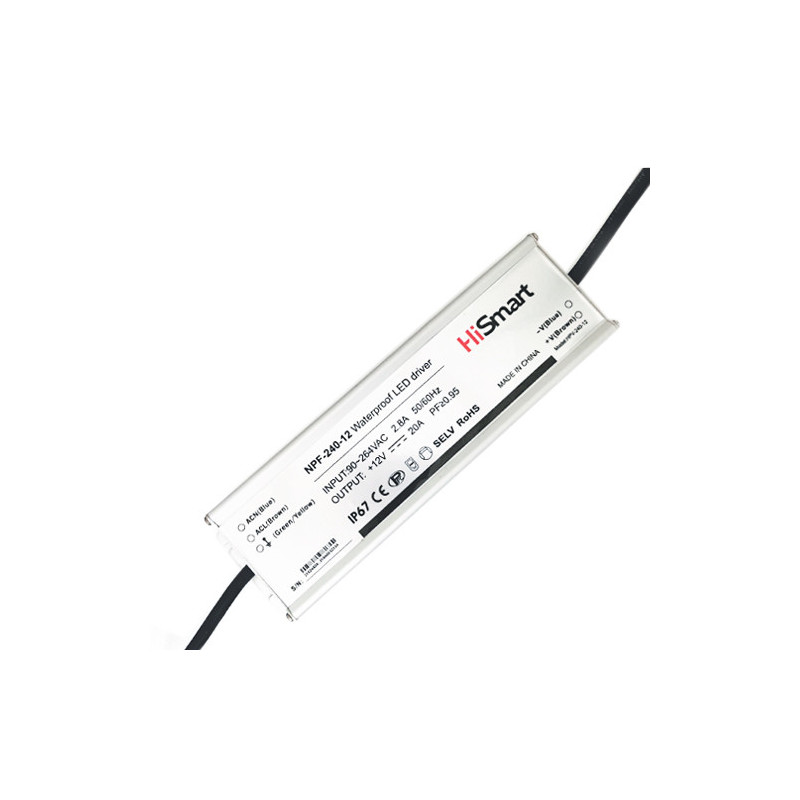

Power supply 12V, 20A, 240W, PFC, IP67
Product reference:
14-9990000700479
Universal 12V power supply operating in switching mode. Built-in PFC (power factor correction).
Power supply 12V, 20A, 240W, PFC, IP67
Product reference:
14-9990000700479
Universal 12V power supply operating in switching mode. Built-in PFC (power factor correction).
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
4 - 5
business days
Switching power supply 12V, 20A, 240W, PFC, safety class IP67.
Features:
- Universal 12V power supply operating in pulsed mode.
- Built-in PFC (power factor correction).
- Protection: against overload, overheating, voltage surge, short circuit.
- Cooling by free air convection.
- Safety class IP67 (water resistance), suitable for both indoor and outdoor installation.
Technical data:
- Input voltage: AC 90-264V. Frequency: 47-63Hz.
- Output voltage: DC 12V.
- Maximum output current: 20A.
- Maximum power: 240W.
- Irregularities and noise: 150mV pp.
- AC voltage: 4A/115V, 2A/230V.
- Efficiency: 90%.
- Leakage current in the input circuit at AC 240V: to 0.75mA.
- Operating temperature: from -30°C to +60°C.
- Operating humidity: 20%~90%RH.
- Dimensions: 249x69x39mm.
- Weight: 1.3kg.
| Height | 45 mm |
| Length | 220mm |
| Weight | 1500g |
| Width | 70mm |
