Power Supply 12v, 20a, 240w, Din
Product reference:
14-9990000700530
This product is a 12V, 20A, 240W, DIN compliant pulse motor. It features a 35mm DIN compliant pitch, 4.5A/115V, 2.5A/230V AC voltage and an efficiency rating of 86%. It is suitable for a variety of applications including TV lifts, window blinds and other motorized applications.
Power Supply 12v, 20a, 240w, Din
Product reference:
14-9990000700530
This product is a 12V, 20A, 240W, DIN compliant pulse motor. It features a 35mm DIN compliant pitch, 4.5A/115V, 2.5A/230V AC voltage and an efficiency rating of 86%. It is suitable for a variety of applications including TV lifts, window blinds and other motorized applications.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
4 - 5
business days

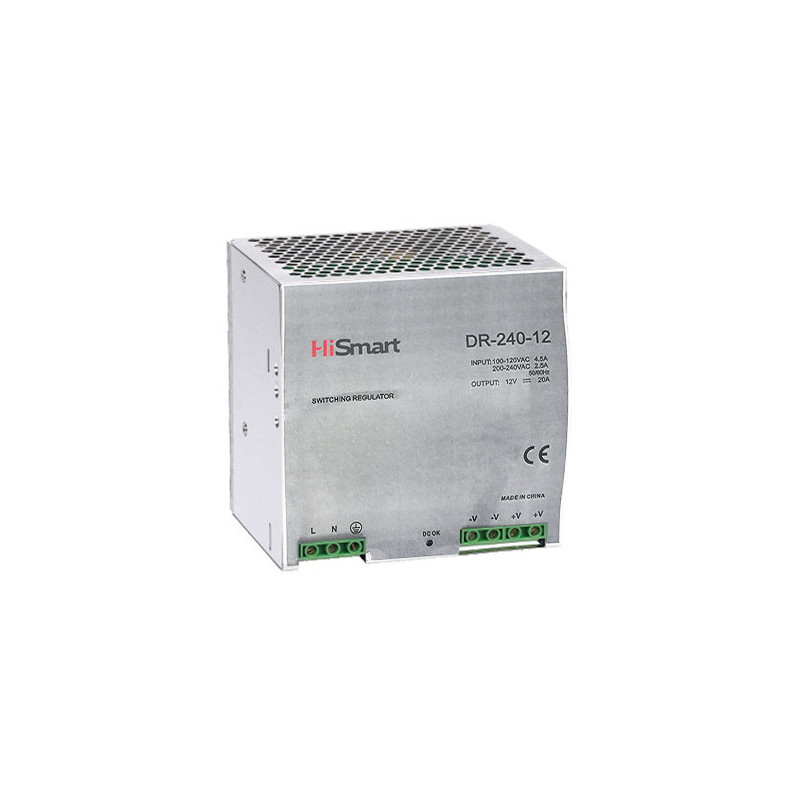

Switching power supply 12V, 20A, 240W, DIN.
Features:
- The power supply operating in pulse mode can be mounted on a 35mm DIN rail.
- Protection: against overload, overheating, voltage surge, short circuit.
- Cooling by free air convection.
- Small volume, low weight, high efficiency.
Technical data:
- Power supply type: switching.
- Input voltage: AC 95-264V. Frequency: 47-63Hz.
- Output voltage: DC 12V.
- Ability to adjust the output voltage within -9% /+10%.
- Maximum output current: 20A.
- Maximum power: 240W.
- Irregularities and noise: 120mV pp.
- AC voltage: 4.5A/115V, 2.5A/230V.
- Efficiency: 86%.
- Leakage current in the input circuit at AC 240V: to 3.5mA.
- Operating temperature: from -10°C to +60°C.
- Operating humidity: 20%-90%RH.
- Dimensions: 125.5x125.2x100mm.
- Weight: 1.13kg.
| Height | 125mm |
| Length | 110 mm |
| Weight | 450 g |
| Width | 50mm |
