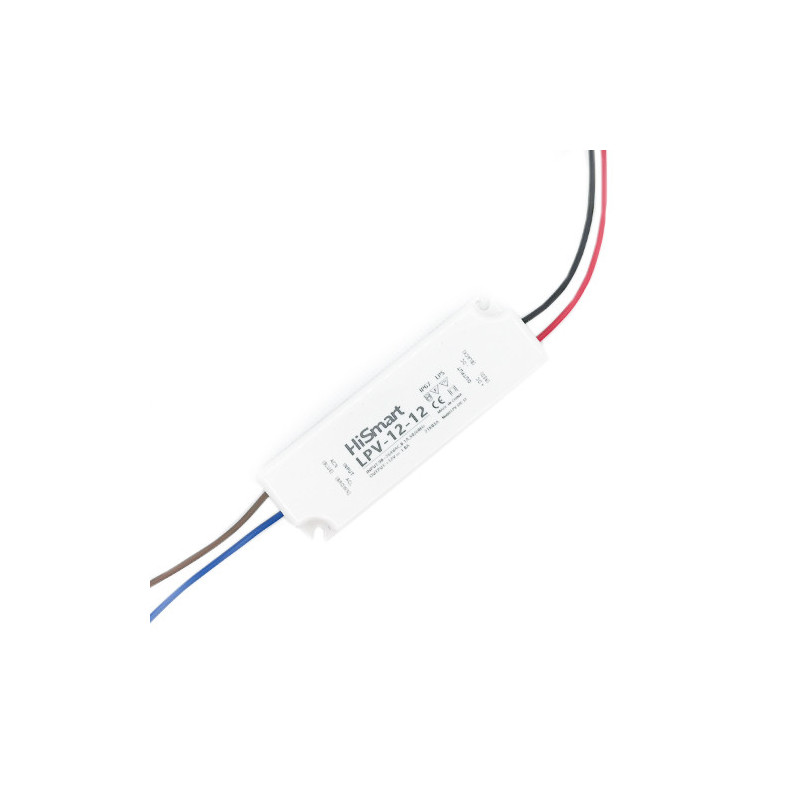

Power Supply - 12v, 1a, 12w, Ip67

Switching power supply 12V, 1A, 12W, safety class IP67.
Features:

• 12V power supply operating in pulsed mode.


• Small volume, low weight, high efficiency.


• Protection: against overload, voltage surge, short circuit.


• Cooling by free air convection.


• Safety class IP67 (water resistance), suitable for both indoor and outdoor installation.

Technical data:

• Input voltage: AC 90-264V. Frequency: 47-63Hz.


• Output voltage: DC 12V.


• Maximum output current: 1A.


• Maximum power: 12W.


• Irregularities and noise: 120mV pp.


• AC voltage: 0.1A/230V.


• Efficiency: 78%.


• Leakage current in the input circuit at AC 240V: to 0.5mA.


• Operating temperature: from -10°C to +60°C.


• Operating humidity: 20%~90%RH.


• Dimensions: 97x30x22mm.


• Weight: 0.113kg.
