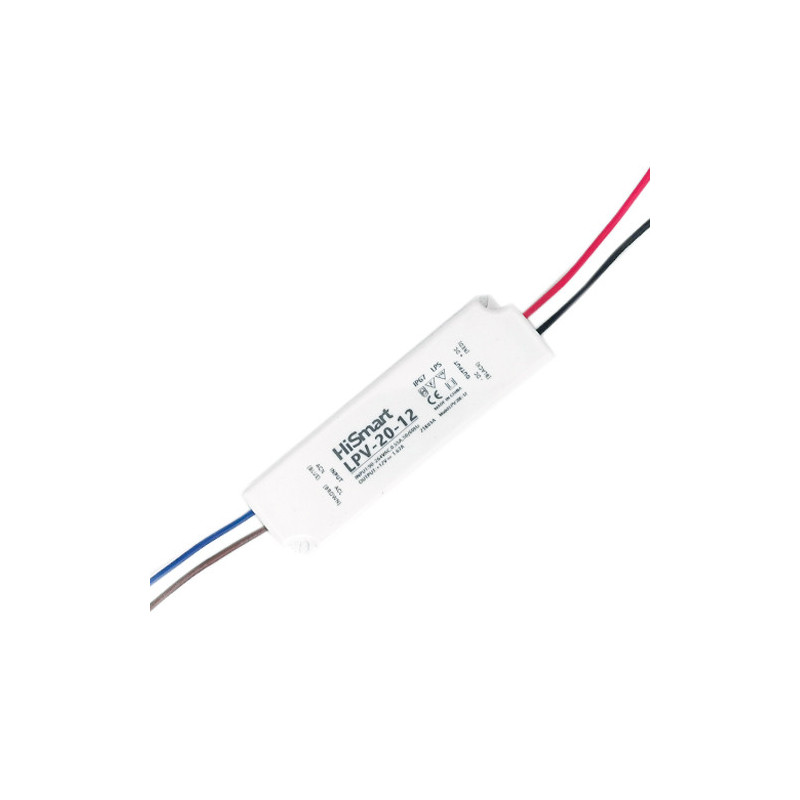

Power supply 12V, 1.67A, 20W, IP67
Product reference:
14-9990000700387
12V power supply operating in pulse mode. Small volume, light weight, high efficiency.
Power supply 12V, 1.67A, 20W, IP67
Product reference:
14-9990000700387
12V power supply operating in pulse mode. Small volume, light weight, high efficiency.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
4 - 5
business days
Not available
Switching power supply 12V, 1.67A, 20W, safety class IP67.
Features:
- 12V power supply operating in pulsed mode.
- Small volume, low weight, high efficiency.
- Protection: against overload, voltage surge, short circuit.
- Cooling by free air convection.
- Safety class IP67 (water resistance), suitable for both indoor and outdoor installation.
Technical data:
- Input voltage: AC 90-264V. Frequency: 47-63Hz.
- Output voltage: DC 12V.
- Maximum output current: 1.67A.
- Maximum power: 20W.
- Irregularities and noise: 120mV pp.
- AC voltage: 1.2A/115V, 1A/230V.
- Efficiency: 81%.
- Leakage current in the input circuit at AC 240V: to 0.25mA.
- MBTF: min 786500 hours.
- Operating temperature: from -30°C to +70°C.
- Operating humidity: 20%~90%RH.
- Dimensions: 118x35x26mm.
- Weight: 0.22kg.
| Height | 30 mm |
| Length | 100mm |
| Weight | 200g |
| Width | 40mm |
