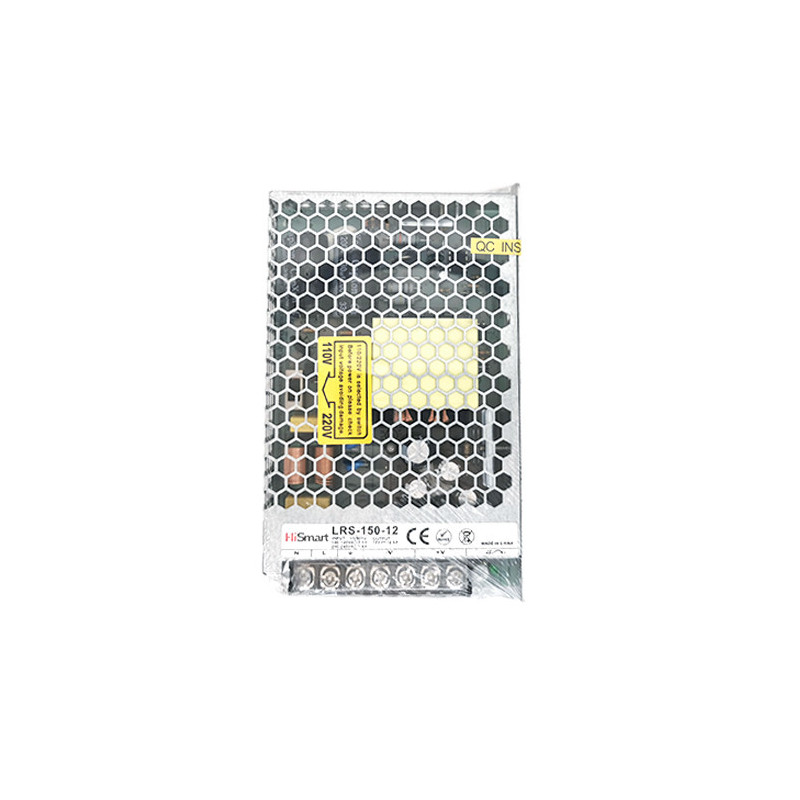

Power supply 12V, 12.5A, 150W
Product reference: 14-9990000700318
Narrow profile open type power supply, operating in switching mode. 1U profile, low weight, high efficiency. Protection: against overload, overheating, voltage surge, short circuit.
Power supply 12V, 12.5A, 150W

Power supply 12V, 12.5A, 150W

Product reference: 14-9990000700318
Narrow profile open type power supply, operating in switching mode. 1U profile, low weight, high efficiency. Protection: against overload, overheating, voltage surge, short circuit.
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
27,37 €
Product in warehouse

Guarantee
24 month

Delivery from Europe in
4 - 5
business days

Your message has been successfully sent!
Fill in the required fields*
Not available

Switching power supply 12V, 12.5A, 150W.
Features:



  • Narrow profile open type power supply operating in pulsed mode.

  • 1U profile, low weight, high efficiency.

  • Protection: against overload, overheating, voltage surge, short circuit.

  • Cooling by free air convection.

  • No-load power consumption: lt;0.5W.

  • Working altitude up to 5000 meters.



Technical data:



  • Power supply type: switching.

  • Input voltage: AC 90-264V. Frequency: 47-63Hz.

  • Output voltage: DC 12V.

  • Ability to adjust the output voltage within ±10%.

  • Maximum output current: 12.5A.

  • Maximum power: 150W.

  • Irregularities and noise: 150mV pp.

  • AC voltage: 2.8A/115V, 1.6A/230V.

  • Efficiency: 87%.

  • Leakage current in the input circuit at AC 240V: to 0.75mA.

  • MBTF: min. 580000 hours.

  • Operating temperature: from -30°C to +70°C.

  • Operating humidity: 20%-90%RH.

  • Dimensions: 159x97x30mm.

  • Weight: 0.43kg.
