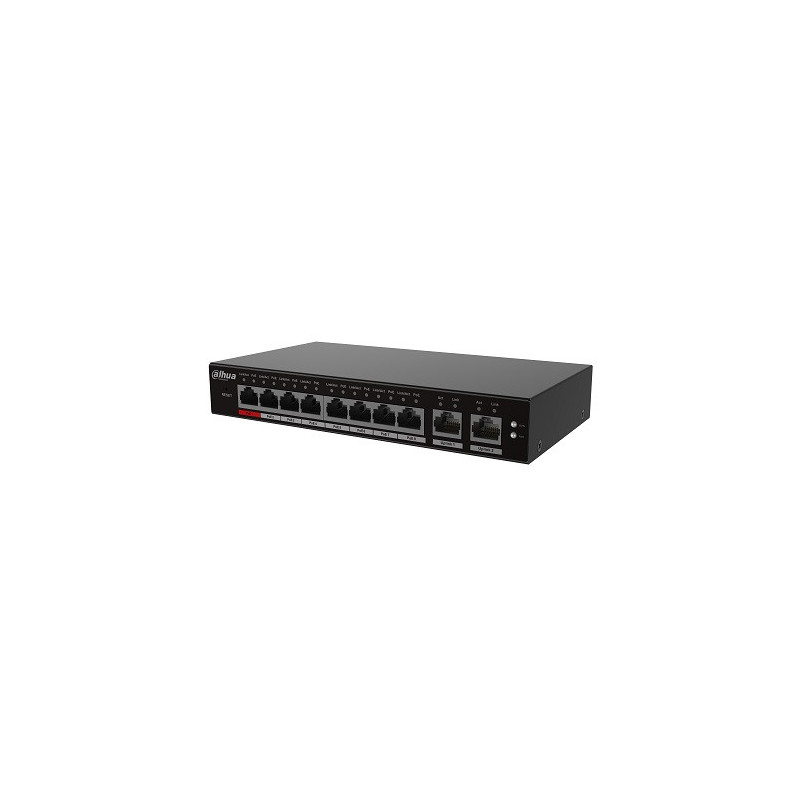

PoE hub managed100Mbps 8ports+2G uplink, Hi-PoE

10-port managed hub with 8-port PoE, 250m, 96W.The Cloud Managed Switch is a Layer 2 commercial switch with long-distance PoE function. It can power devices up to 250 meters away. The red PoE port delivers up to 90W. The Switch can be managed using the DoLynk Care app, which allows you to access the network topology diagram function, which can be used to quickly diagnose problems. The DoLynk Care app is based on the DoLynk Care Cloud Server. The switch is suitable for various use cases, such as homes, factories, and offices. Model: S4100-8ET2GT-96-C.Features:· Supports LLDP protocol and automatically generates network topology to quickly identify problems. · Cloud management: You can manage and maintain the switch on the mobile terminal app, greatly reducing the operation and maintenance costs. · The transmission distance of the PoE port can be up to 250m, meeting the requirement of wired transmission (reduced bandwidth to 10Mbps). · Supports visualized management and remote maintenance. · Supports automatic generation of network topology. · 250m power supply distance. · 8-pin PoE offers better compatibility and reduces cable loss. · PoE monitoring program monitors the status of terminals in real time. · Supports power management policy. · Red port 90W: Red ports support IEEE802.3af, IEEE802.3at, IEEE802.3bt and Hi-PoE standards, with a maximum output power consumption of 90W per port. Suitable for powering high-power devices. · PoE Watchdog: Allows the switch to automatically detect port status and restart failed ports to restore connectivity in the event of an IPC connection exception. This enables intelligent operation and maintenance management in the true sense and effectively reduces manual maintenance costs.Technical specification:

• Power adapter included: Yes.


• PoE: Yes.


• Ethernet port: 8.


• Ethernet port speed 10/100 Mbps.


• Optical port Uplink speed: 10/100/1000 Mbps.


• Description of functional sockets: Port 1-8: 8 × RJ-45 10/100 Mbps; Uplink1-2: 2 × RJ-45 10/100/1000 Mbps.


• Power supply: 53 VDC, 1.81 A.


• Operating temperature: -10°C to +55°C.


• Operating humidity: 5%-95% (RH), non-condensing.


• Storage temperature -40°C to +70°C.


• Storage humidity 5%-95% (RH), non-condensing.


• Power consumption idle: <5 W, full: 96 W.


• Smart controlled switch: yes.


• MTBF: 864,663 hours


• Switching capacity: 7.2 Gbps.


• Packet transfer rate: 4.17 Mps.


• Packet buffer size: 4 Mbit.


• MAC table size: 16K.


• PoE protocol: IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt.


• Communication standard: IEEE 802.3; IEEE 802.3u; IEEE 802.3X; IEEE 802.3ab.


• PoE Power: Port 1 <90W; Port 2-8 <30W; Total <96W.


• PoE power management: Yes.


• PoE pin assignment: 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-).


• Long-distance PoE transmission: Yes.


• Static protection: Air discharge: 8 kV; Contact discharge: 6 kV.


• Lighting Protection: Common mode: 4 kV; Differential mode: 2 kV.


• Weight: 0.5 kg.


• Product dimensions: 190 mm × 100 mm × 30 mm.


• Certificates CE; FCC.

Transmission performance:

• The supply voltage is switched at 53 V.


• CAT5E/CAT6. Max. DC resistance < 10ohm/100m


• Cable(m) Load(W) Bandwidth(Mbps)


• IEEE802.3bt 90W:


• 100m Cable; 71.3 W load; 100 Mbps bandwidth.


• 150 m cable; 62W load; 10Mbps bandwidth.


• 200m cable; 51W load; 10Mbps bandwidth.


• 250m cable; 40W load; 10Mbps bandwidth.


• Hi-PoE 60W:


• 100m cable; 53W load; 100 Mbps bandwidth.


• 150 m cable; 50W load; 10Mbps bandwidth.


• 200m cable; 47W load; 10Mbps bandwidth.


• 250m cable; 37W load; 10Mbps bandwidth.


• IEEE802.3at 30W:


• 100m cable; 25.5 W load; 100 Mbps bandwidth.


• 150 m cable; 25.5W load; 10Mbps bandwidth.


• 200m cable; 25.5W load; 10Mbps bandwidth.


• 250m cable; 25.5W load; 10Mbps bandwidth.

Note: The actual transmission distance may vary due to the power consumption of the connected devices or the type and condition of the cable.
