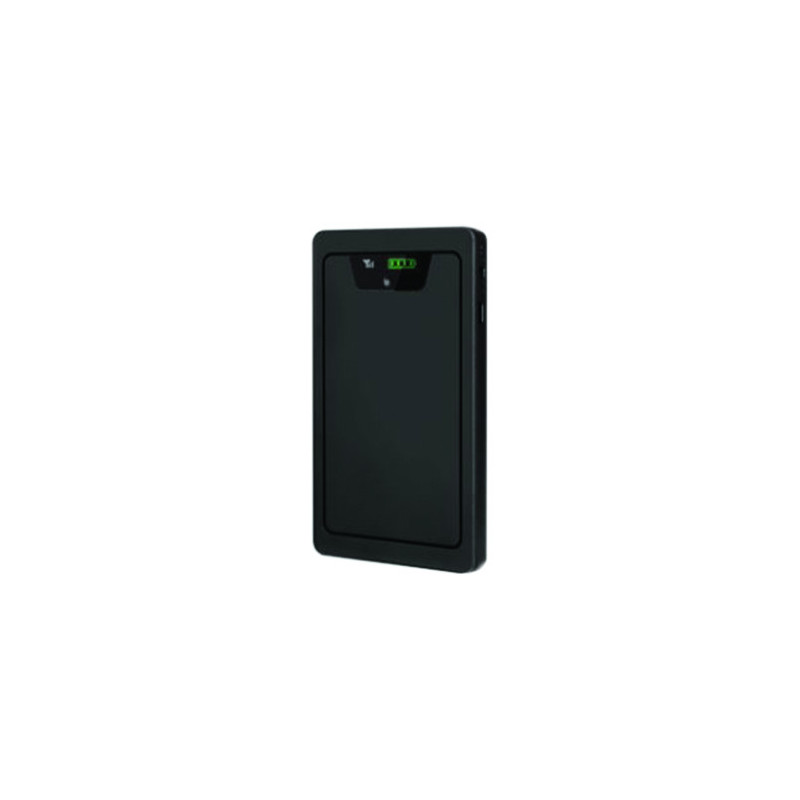

Parcel GPS tracking device

Parcel GPS tracking device

GPS tracking device designed specifically for tracking shipments. Ultra-slim with a 2500mAh battery, optional monitoring mode, which allows tracking the shipment 24/7. The GPS tracking device has an integrated light sensor that detects and informs about the opening of the shipment package.

Features:

• Location determination by GPS or LBS


• Unpacking alarm (geo-fence)


• 2,500mAh rechargeable battery


• Ultra thin


• Different tracking modes


• Low battery warning

GSM technical data:

• GSM frequency: 850/900/1800/1900 MHz


• GPRS: Class 12, TCP/IP


• Memory: 32+32Mb


• Phase error: RMSPE<5,PPE<20


• Maximum frequency error: ±0.1ppm

GPS technical data:

• GPS chip: MTK high sensitivity chip


• Frequency: L1,1575.42MHz C/A code


• GPS channels: 32


• Location detection: <10 meters


• Tracking sensitivity: -165dBm


• Minimum signal level required for setpoint during cold start: -148dBm

Time to first fix (TTFF):

• Coordinate acquisition time when time and last location coordinate are known (hot start) <1 sec.


• Coordinate acquisition time when the initial coordinate and time are not known (cold start) <45 sec.

Other technical data:

• Battery: 2,500mAh/3.7V DC lithium polymer battery


• Charging: 5V/1A


• Operating temperature: -20C~ +70C


• Transmission: TCP, SMS


• Weight: 76g


• Size: 110x61x8mm

Coordinated and tested operation with the Tracksolid.com operating platform on Windows, Android, iOS systems.Free use for one year. There is an option to purchase further use of the platform. The app allows you to configure the device and monitor all collected information - location, time, status, etc.
