Night vision system for car - thermal imaging camera and 7' CCTV monitor waterproof

Night vision system for car - thermal imaging camera and 7" waterproof CCTV monitor

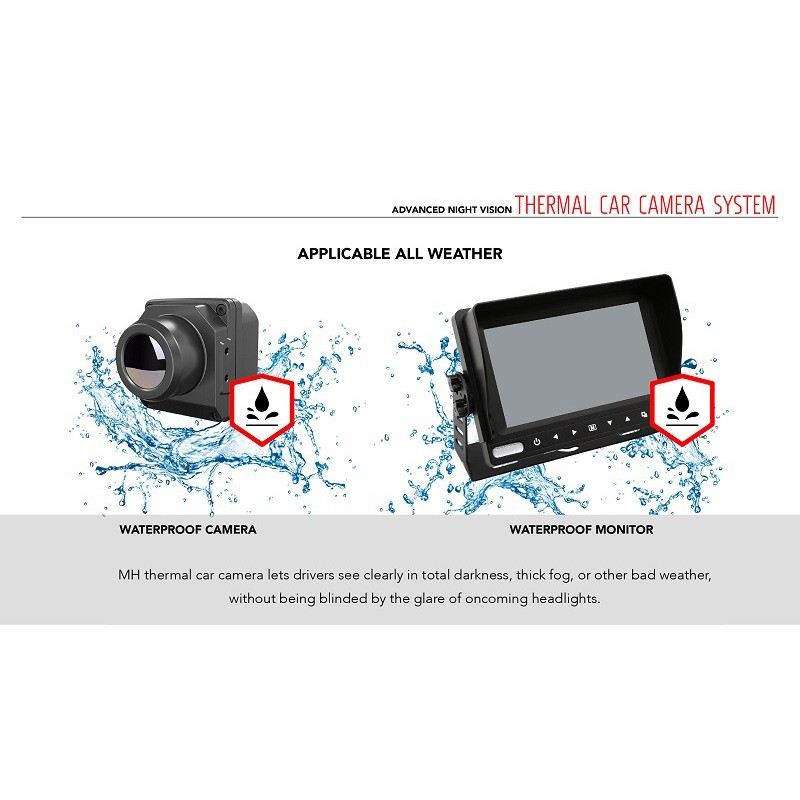

The thermal imaging camera (384x288 resolution) and the 7-inch color TFT-LCD monitor (IP69k class), which meet the requirements of military and industrial standards, are adapted to harsh atmospheric conditions and strong vibrations and provide visibility for safe driving regardless of adverse circumstances.
Camera features:

• The thermal imaging camera's uncooled infrared military-grade microbolometric sensor provides visibility at night even without any light source.


• The uncooled IR microbolometric sensor helps detect subtle temperature changes and provides effective visibility at a distance of 350m, despite complete darkness, blinding reflectors, smoke, fog, dust or rain.


• Fixed lenses show a clear panoramic view.


• 384x288 pixel resolution sensor with fixed lens.


• Field of view 37.9°×28.5°.


• Low energy consumption, up to 6W.


• Resistant to shock and vibration.


• Reverse polarity and surge protection.


• IP67 protection - dust and water resistance.


• Application: can be installed in any type of vehicle, SUV, ATV, boat or 4×4 car.


• The production process is controlled according to the international automotive manufacturing standard ISO TS 16949.

Monitor features:

• 7-inch color TFT-LCD monitor, industrial grade, IP69k waterproof and pressure resistant, RGB 800x480 high resolution, 400cd/m2 high brightness and clear image, with touch control keys.


• The monitor screen is covered with 2mm thick high-transmittance PMMA material, it is adapted to extreme environmental conditions: such as high humidity, low or high temperatures, adverse weather conditions, rain, dirt.


• Industrial-grade digital video processor for automotive applications.


• Supports connection of two CVBS cameras.


• OSD menu functions: brightness, mirror/normal image for each camera separately, reverse image delay time, language selection.


• Sun protection visor. Heat-dissipating aluminum alloy body.


• Protection against load shedding, overvoltage, short circuit, reverse polarity.


• LED constant current and constant pressure maintenance function.


• The monitor is durable, shock and vibration resistant.


• Wide range of applications: SUVs, ATVs, ambulances, school buses, street sprayers, horse trailers, waste management vehicles, trucks, loaders, forestry or agricultural machinery, marine, construction and mining equipment, various vehicle monitoring systems.

Thermal imaging camera technical data:

• Sensor resolution: 384x288.


• Sensor type: uncooled FPA.


• Field of view: 37.9°×28.5°.


• Focal length: fixed, gt; /= 6m.


• Wavelength: 8-14 microns (micrometers).


• Catering: DC 12-32V.


• Costs: lt;6W.


• Video exit: PAL.


• Frame rate: 50Hz.


• Focus type: no focus.


• Impact protection: GJB150A-2009.


• Vibration resistance: GJB150A-2009.


• Electromagnetic compatibility: GJB151A.


• Operating temperature: -41°C~ +65°C.


• Storage temperature: -55°C~ +85°C.


• Protection class: IP67.


• Weight: 750g.


• Size: 64x64x115mm.

Monitor specifications:

• Screen resolution: 800(H) x 480(V) pixels.


• Active screen size: 153.6 x 86.6 mm.


• Response time: 25ms.


• Video input: 2kanalų, PAL/NTSC.


• Brightness: 400 cd/m2.


• Contrast: 500:1.


• Processor: industrial-grade "Techwell".


• Catering: DC 11-32V.


• Cost: 5W (max.).


• Vibration resistance: GB/T 2423.56-2018.


• Protection against surges and load shedding: ISO16750-2.


• Operating temperature: -20°C~ +70°C.


• Storage temperature: -30°C~ +80°C.


• Protection class: IP69k.


• Body material: ABS plastic, aluminum alloy.


• Weight: 700g.


• Size: 220x149x84mm.
