Night driving thermal imaging camera 384x288, 37°, IP67

Night driving thermal imaging camera 384x288, 37°, IP67
Thermal imaging camera for vehicles. Uncooled, military-grade infrared microbolometer sensor provides visibility at night or in adverse weather conditions. Can provide traffic information at a distance of 350m, despite complete darkness, glare, smoke, fog, dust or rain. Non-focusing fixed lenses show a clear panoramic view. Advanced, shock and vibration resistant technology specially adapted for vehicles.
Features:

• 384x288 pixel resolution sensor with fixed lens. Field of view 37.9°×28.5°. Safety class IP67.


• This thermal imaging camera connects to a screen, such as a waterproof TV991976.


• Low energy consumption, up to 6W.


• An uncooled IR microbolometric sensor helps detect subtle temperature changes and provides effective visibility at a distance of 350m.


• Reverse polarity and surge protection.


• IP67 protection - dust and water resistance.


• Application: can be installed in any type of vehicle, SUV, ATV, boat or 4×4 car.


• The production process is controlled according to the international automotive manufacturing standard ISO TS 16949.

Technical data:

• Sensor resolution: 384x288.


• Sensor type: uncooled FPA.


• Field of view: 37.9°×28.5°.


• Focal length: fixed, gt; /= 6m.


• Wavelength: 8-14 microns (micrometers).


• Power supply: DC 12-32V.


• Costs: lt;6W.


• Video exit: PAL.


• Frame rate: 50Hz.


• Focus type: no focus.


• Impact protection: GJB150A-2009.


• Vibration resistance: GJB150A-2009.


• Electromagnetic compatibility: GJB151A.


• Operating temperature: -41°C~ +65°C.


• Storage temperature: -55°C~ +85°C.


• Protection class: IP67.


• Weight: 750g.

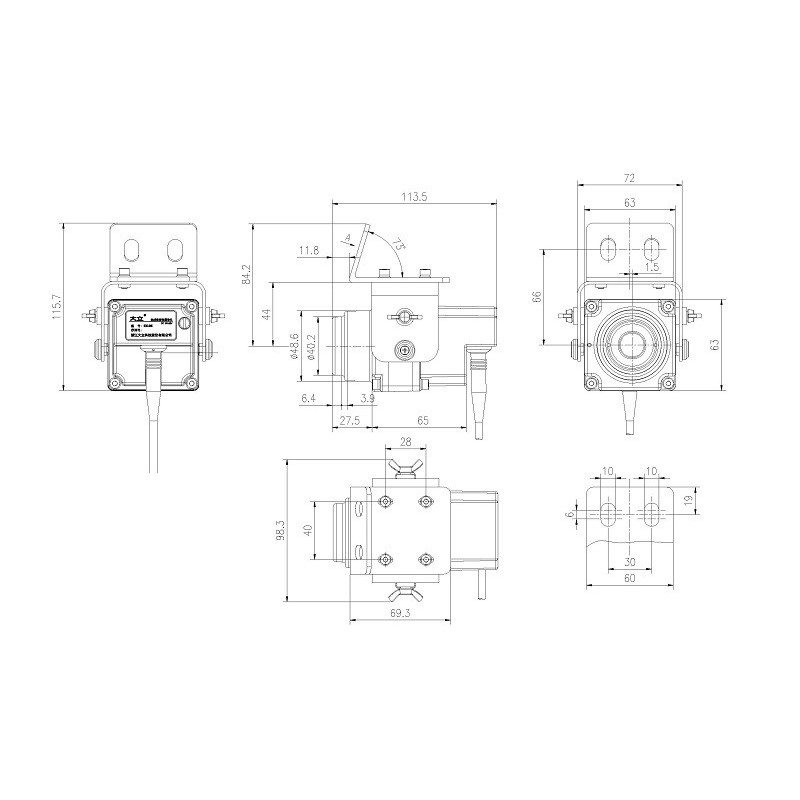

• Size: 64x64x115mm.
