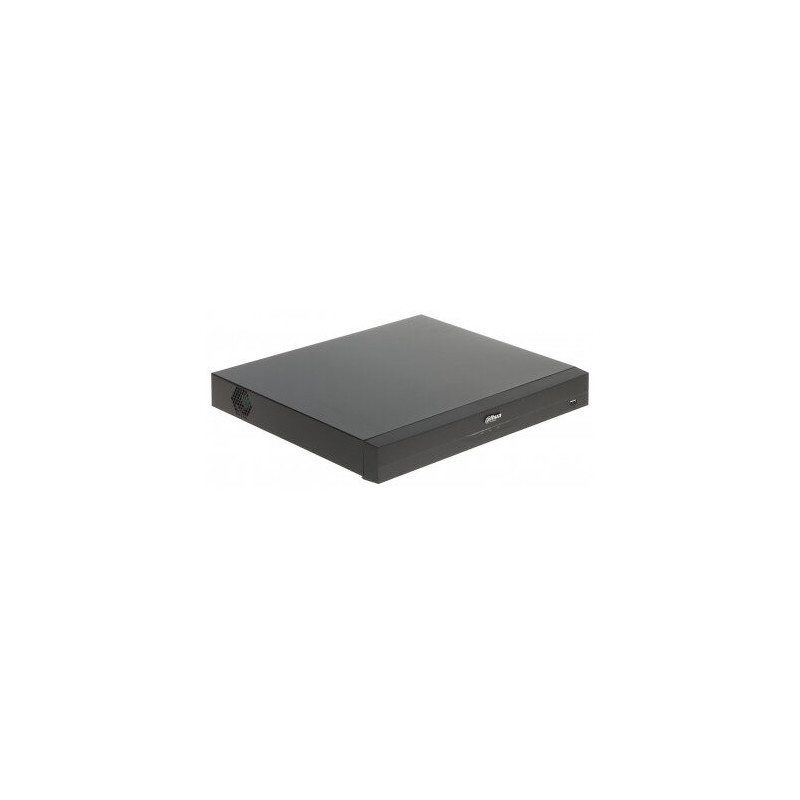

Network recorder NVR Dahua WizSense NVR5216-16P-EI
Product reference: 26-DAHNVR521616PEI
  • Type: Network recorder (NVR)
  • Model: Dahua NVR5216-16P-EI
  • Technology: WizSense
  • PoE support: Yes
  • Number of channels: 16
  • Maximum resolution: Up to 32 Mpix per channel
  • Hard drives: 2 HDD (up to 2x20TB)
  • Data rate: 384 Mbps IN/OUT
  • Audio input/output: 1 in / 1 out (RCA)
  • Network interface: 1000 Mbps RJ45
  • USB ports: 2x USB
  • Video outputs: HDMI, VGA
Network recorder NVR Dahua WizSense NVR5216-16P-EI

Network recorder NVR Dahua WizSense NVR5216-16P-EI

Product reference: 26-DAHNVR521616PEI
  • Type: Network recorder (NVR)
  • Model: Dahua NVR5216-16P-EI
  • Technology: WizSense
  • PoE support: Yes
  • Number of channels: 16
  • Maximum resolution: Up to 32 Mpix per channel
  • Hard drives: 2 HDD (up to 2x20TB)
  • Data rate: 384 Mbps IN/OUT
  • Audio input/output: 1 in / 1 out (RCA)
  • Network interface: 1000 Mbps RJ45
  • USB ports: 2x USB
  • Video outputs: HDMI, VGA
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
404,40 €
Last product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*
  • Home
  • Main processor Industrial-grade processor
  • Operating system Embedded Linux
  • Operational interface Web, Local GUI
  • AI recorder Face detection; face recognition; perimeter protection; SMD Plus
  • AI by camera Face detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); perimeter protection; SMD Plus; stereo analysis; crowd distribution; people counting; ANPR; vehicle density; heat map
  • AcuPick AI by Camera + Recorder Max. 16-channel, 1 combined event per channel/s
  • Perimeter Performance AI by Recorder (Number of Channels) 4 channels, 10 IVS rules for each channel
  • Perimeter Performance of AI by Camera (Number of Channels) All channels (16 targets/s)
  • Facial attributes Gender; age group; glasses; expressions; face mask; beard
  • Face Detection Performance of AI by Recorder (Number of Channels) 2 channels (up to 12 face images/s each channel)
  • Face Detection Performance of AI by Camera (Number of Channels) 16 channels
  • Face Database Capacity Up to 20 face databases with 20,000 images, total capacity of 2.5 G. Name, gender, birthday, address, credential type, credential No., countries regions and state can be added to each face image.
  • Face Recognition Performance of AI by Recorder (Number of Channels) 16-channel FD (by camera) + FR (by recorder), image stream: 16 face images/s; 2-channel FD (by recorder) + FR (by recorder), video stream: 12 face images/s
  • Face Recognition Performance of AI by Camera (Number of Channels) 16 channels
  • SMD Plus recorder 8 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change
  • SMD Plus by Camera All channels (32 targets/s)
  • Metadata Performance of AI by Camera (Number of Channels) 8 channels
  • Human Attributes Top color, top type, bottom color, bottom type, hat, bag, age, gender, umbrella
  • Motor Vehicle Attributes License plate, plate color, vehicle body, vehicle model, vehicle logo, calling, seatbelt, vehicle interior, vehicle registration location
  • Non-motor Vehicle Attributes Vehicle model, vehicle color, number of persons, helmet
  • ANPR by Camera (Number of Channels) All channels (8 targets/s)
  • License Plate Database Capacity Create up to 20,000 plate numbers; Blocklist and allowlist
  • Access channel 16 channels
  • Network bandwidth AI disabled: 384 Mbps incoming, 384 Mbps recording, 384 Mbps outgoing; AI enabled: 200 Mbps incoming, 200 Mbps recording, 200 Mbps outgoing
  • Resolution 32 MP; 24 MP; 16 MP; 12 MP; 8 MP; 6 MP; 5 MP; 4 MP; 3 MP; 1080p; 720p; 960p; D1; CIF; QCIF
  • Decoding capacity AI disabled: 2-channel 32 MP@25 fps, 2-channel 24 MP@25 fps, 4-channel 16 MP@30 fps, 5-channel 12 MP@30 fps, 8-channel 8 MP@30 fps, 10-channel 6 MP@30 fps, 12-channel 5 MP@30 fps, 16-channel 4 MP@30 fps; AI enabled: 1-channel 32 MP@25 fps, 1-channel 24 MP@25 fps, 2-channel 16 MP@30 fps, 4-channel 12 MP@30 fps, 6-channel 8 MP@30 fps, 8-channel 6 MP@30 fps, 8-channel 5 MP@30 fps, 12-channel 4 MP@30 fps
  • Video output 1 VGA, 1 HDMI; VGA: 1920×1080, 1280×1024, 1280×720; HDMI: 3840×2160, 1920×1080, 1280×1024, 1280×720; Heterogeneous video source output for HDMI and VGA
  • Multi-channel display Main screen: 1/4/8/9/16; Sub screen: 1/4/8/9/16
  • Third-party camera access ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Hanwha
  • Image compression Smart H.265+; H.265; Smart H.264+; H.264; MJPEG
  • Audio compression G.711a; G.711u; PCM; G726
  • Protocols HTTP; HTTPS; TCP/IP; IPv4; UDP; NTP; DHCP; DNS; SMTP; UPnP; DDNS; Alarm Server; IP Search (Supports Dahua IP camera, DVR, CIS, etc.); Multicast; P2P; Auto Registration; iSCSI
  • Access by phone iOS; Android
  • Compatibility ONVIF 23.12 (Profile T; Profile S; Profile G); CGI; SDK
  • Browser Chrome; i.e. Safari; Edge; Firefox
  • Multi-channel playback Up to 16 channels
  • Recording mode General, motion detection, intelligent, alarm, POS
  • Backup method USB device and network
  • Playback mode Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection)
  • Disco group Yes
  • General alarm Motion detection; local alarm; alarm box; camera external alarm; network alarm; scene changing; PIR alarm; thermal alarm
  • Anomaly alarm Camera offline; storage error; disk full; IP conflict; MAC conflict; login lock; abnormal behavior of fans; cybersecurity exception
  • Smart alarm system Face detection; perimeter protection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); SMD Plus; stereo analysis; crowd distribution; people counting; ANPR; vehicle density; heat map
  • Alarm interface Record; snapshot (panoramic); local alarm output; IPC external alarm output; access controller; audio; buzzer; log, preset; email
  • Audio input 1-channel RCA
  • Audio output 1-channel RCA
  • Alarm input 4 channels
  • Alarm output 2 channels
  • Disk interface 2 SATA ports, each disk can contain up to 20 TB (limit varies depending on environmental temperature)
  • RS-232 1
  • RS-485 1
  • USB 2 (1 front USB 2.0 port, 1 rear USB 3.0 port)
  • HDMI 1
  • VGA 1
  • Network port 1 (10/100/1000 Mbps Ethernet port, RJ-45)
  • PoE port 16 ports, 10/100 Mbps, IEEE 802.3 af/at, 1-8 ports support ePoE
  • Power supply 100-240VAC, 47-63Hz
  • Energy consumption Total output of NVR is ≤ 10W (without HDD); Total output power of PoE is 130W, max output power of a single port is 25.5W
  • Weight without packaging 2.66 kg (5.86 lb)
  • Weight with packaging 3.82 kg (8.42 lb)
  • Product size 375.0 mm × 329.3 mm × 53.0 mm (14.76" × 12.96" × 2.09") (W × D × H)
  • Package size 451.0 mm × 147.0 mm × 425.0 mm (17.76" × 5.79" × 16.73") (W × D × H)
  • Working conditions (temperature) -10 °C to +55 °C (14 °F to +131 °F)
  • Storage conditions temperature -20 °C to +60 °C (-4 °F to +140 °F)
  • Working conditions (humidity) 10%-93% (RH), non-condensing
  • Installation Rack or desktop
  • Certificates FCC: 47 CFR FCC Part15, SubpartB, Class A; CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014; CE-LVD: EN 62368-1:2014

ManufacturerDahua
Manufacturer codeDAHNVR521616PEI
Weight2.66 kg
