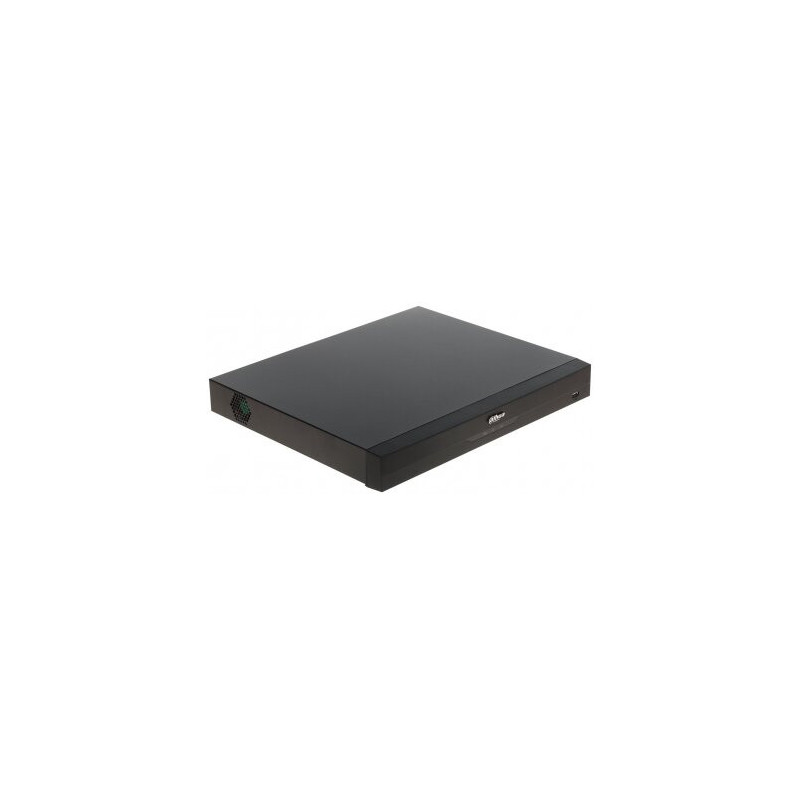

Network recorder Dahua NVR4216-16P-EI
Product reference: 26-DAHNVR421616PEI
  • Type: Network recorder
  • Model: Dahua NVR4216-16P-EI
  • Series: WizSense
  • PoE: Yes
  • Number of channels: 16
  • Maximum resolution per channel: 12 Mpix
  • Hard drive support: 2 HDD (up to 2x20TB)
  • Recording/output speed: 160 Mbps / 80 Mbps
  • Audio inputs/outputs: 1 RCA input / 1 RCA output
  • Connectors: 2x USB, RJ45 1000 Mbps
  • Video outputs: 1 HDMI, 1 VGA
Network recorder Dahua NVR4216-16P-EI

Network recorder Dahua NVR4216-16P-EI

Product reference: 26-DAHNVR421616PEI
  • Type: Network recorder
  • Model: Dahua NVR4216-16P-EI
  • Series: WizSense
  • PoE: Yes
  • Number of channels: 16
  • Maximum resolution per channel: 12 Mpix
  • Hard drive support: 2 HDD (up to 2x20TB)
  • Recording/output speed: 160 Mbps / 80 Mbps
  • Audio inputs/outputs: 1 RCA input / 1 RCA output
  • Connectors: 2x USB, RJ45 1000 Mbps
  • Video outputs: 1 HDMI, 1 VGA
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
295,28 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*
  • Home
  • Main processor Industrial-grade processor
  • Operating system Embedded Linux
  • Operational interface Web, Local GUI
  • AI recorder Face detection, face recognition, perimeter protection, and SMD Plus
  • AI by camera Face detection; face recognition; perimeter protection; SMD Plus; ANPR; people counting; stereo analysis; heat map
  • Perimeter Performance AI by Recorder (Number of Channels) 2 channels, 10 IVS rules for each channel
  • Perimeter Performance of AI by Camera (Number of Channels) All channels (8 targets/s)
  • Facial attributes Gender; age group; glasses; expressions; face mask; beard
  • Face Detection Performance of AI by Recorder (Number of Channels) 1 channel (up to 12 face images/s each channel)
  • Face Detection Performance of AI by Camera (Number of Channels) All channels (8 targets/s)
  • Face Database Capacity Up to 10 face databases with 20,000 images, with a total capacity of 2.5 G. Name, gender, birthday, address, credential type, credential No., countries regions and state can be added to each face image.
  • Face Recognition Performance of AI by Recorder (Number of Channels) 8-channel FD (by camera) + FR (by recorder), image stream: 12 face images/s; 1-channel FD (by recorder) + FR (by recorder), video stream: 12 face images/s
  • Face Recognition Performance of AI by Camera (Number of Channels) All channels (8 targets/s)
  • SMD Plus recorder 4 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change
  • SMD Plus by Camera All channels (16 targets/s)
  • Access channel 16 channels
  • Network bandwidth AI disabled: 256 Mbps incoming, 256 Mbps recording and 256 Mbps outgoing; AI enabled: 180 Mbps incoming, 180 Mbps recording and 180 Mbps outgoing
  • Resolution 16 MP; 12 MP; 8 MP; 6 MP; 5 MP; 4 MP; 3 MP; 1080p; 960p; 720p; D1; CIF
  • Decoding capacity AI disabled: 2-channel 16 MP@30 fps; 2-channel 12 MP@30 fps; 4-channel 8 MP@30 fps; 4-channel 6 MP@30 fps; 6-channel 5 MP@30 fps; 8-channel 4 MP@30 fps; 16-channel 1080p@30 fps; AI enabled: 1-channel 16 MP@30 fps; 2-channel 12 MP@30 fps; 3-channel 8 MP@30 fps; 3-channel 6 MP@30 fps; 4-channel 5 MP@30 fps; 6-channel 4 MP@30 fps; 12-channel 1080p@30 fps; 16-channel 720p@30 fps
  • Video output 1 HDMI, 1 VGA; HDMI: 3840×2160, 1920×1080, 1280×1024, 1280×720; VGA: 1920×1080, 1280×1024, 1280×720; Simultaneous/heterogeneous video sources output for VGA and HDMI is configurable.
  • Multi-channel display 1st Screen: 1/4/8/9/16; 2nd Screen: 1/4/8/9/16
  • Third-party camera access Panasonic, Sony, Samsung, Axis, Pelco, Arecont, ONVIF, Canon
  • Image compression Smart H.265+; H.265; Smart H.264+; H.264; MJPEG
  • Audio compression G.711a; G.711u; PCM; G726
  • Protocols HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; IP Search (Support Dahua IP camera; DVR; CIS; etc.); P2P; auto register
  • Access by phone iOS; Android
  • Compatibility ONVIF 22.06 (Profile T; Profile S; Profile G); CGI; SDK
  • Browser Chrome; IE9 and later; Firefox
  • Multi-channel playback Up to 16 channels
  • Recording mode General, motion detection; smart alarm
  • Backup method USB device and network
  • Playback mode Instant playback, general playback, event playback, tag playback, smart playback
  • Disco group Yes
  • General alarm Motion detection; privacy masking; video loss; scene changing; PIR alarm; IPC external alarm
  • Anomaly alarm Camera disconnection; storage error; disk full; IP conflict; MAC conflict; login locked; and cybersecurity exception
  • Smart alarm system Face detection; face recognition; perimeter protection; SMD Plus; people counting; stereo analysis; heat map
  • Alarm interface Record; snapshot IPC external alarm output; audio; buzzer; log; preset; email
  • Audio input 1-channel RCA
  • Audio output 1-channel RCA
  • Alarm input 4 channels
  • Alarm output 2 channels
  • Disk interface 2 SATA ports, up to 16 TB. The maximum HDD capacity varies with ambient temperature.
  • RS-232 1
  • USB 2 (1 front USB 2.0 port, 1 rear USB 2.0 port)
  • HDMI 1
  • VGA 1
  • Network port 1 (10/100/1000 Mbps Ethernet port, RJ-45)
  • PoE port 16 ports, 10/100 Mbps, IEEE 802.3 af/at
  • Power supply 100-240VAC, 47-63Hz
  • Energy consumption Total output of NVR is lt;10 W (without HDD); Total output power of PoE is 130W, maximum output power of a single port is 25.5W
  • Weight without packaging 2.60 kg (5.73 lb)
  • Weight with packaging 3.80 kg (8.38 lb)
  • Product size 375.0 mm × 329.3 mm × 53.0 mm (14.76" × 12.96" × 2.09") (W × L × H)
  • Package size 451.0 mm × 425.0 mm × 147.0 mm (17.75" × 16.73" × 5.79") (W × L × H)
  • Working conditions (temperature) -10 °C to +55 °C (14 °F to +131 °F)
  • Storage conditions temperature -20 °C to +60 °C (-4 °F to +140 °F)
  • Working conditions (humidity) 10%-93% (RH), non-condensing
  • Installation Rack or desktop
  • Certificates FCC: 47 CFR FCC Part15, SubpartB, Class A; CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014; CE-LVD: EN 62368-1:2014

ManufacturerDahua
Manufacturer codeDAHNVR421616PEI
Weight2.6 kg
