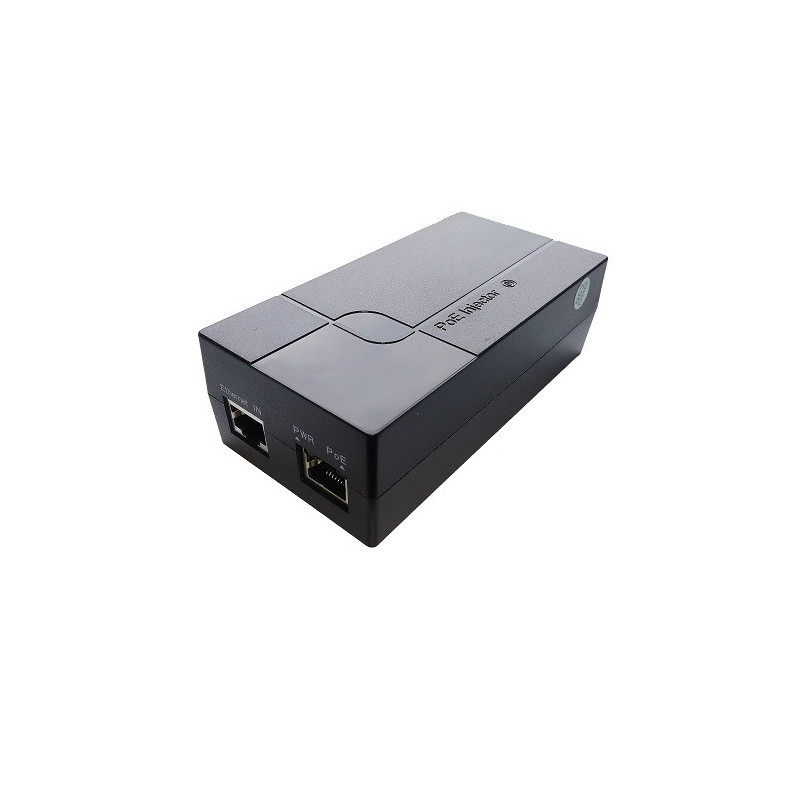

The 60W Gigabit PoE Injector with 100-240V AC input and 52V PoE output transmits Ethernet data and power over a single RJ45 connector. The fanless design supports 10/100/1000 Mbps speeds and has an LED status indicator.
The 60W Gigabit PoE Injector with 100-240V AC input and 52V PoE output transmits Ethernet data and power over a single RJ45 connector. The fanless design supports 10/100/1000 Mbps speeds and has an LED status indicator.
The 60W Gigabit PoE Injector with 100-240V AC input and 52V PoE output transmits Ethernet data and power over a single RJ45 connector. The fanless design supports 10/100/1000 Mbps speeds and has an LED status indicator.
Guarantee
24 month
Delivery from Europe in
4 - 5
business days
60W Gigabit PoE injector with 100-240V AC input and 52V PoE output for Ethernet data and power over a single RJ45 connector. Fanless design supports 10/100/1000 Mbps and has LED status indicator.
Product information | |
|---|---|
| Product type | Gigabit Power over Ethernet (PoE) injector |
| Model | Extra Digital 60W PoE Gigabit Injector |
| Function | Transmits Ethernet data and power to compatible network devices over a single RJ45 cable |
Technical specifications | |
| LAN input | 1 × 10/100/1000Mbps RJ45 port |
| PoE output | 1 × 10/100/1000Mbps RJ45 port |
| PoE output voltage | 52 V |
| AC input | 100-240V AC, 50-60Hz |
| PoE power pin layout | Supports mid-span and end-span configurations: 4/5 and 7/8 pairs or 1/2 and 3/6 pairs |
| Transmission distance | Up to 100 m using Cat 5 or higher UTP cable |
| LED indicator | PoE operating status |
Construction and conditions of use | |
| Cooling | Natural heat dissipation without a fan |
| Installation | On a table or on a wall |
| Dimensions | 108 × 44 × 33 mm |
| Operating temperature | −20°C-+55°C |
| Operating humidity | 10-90% relative humidity, non-condensing |
| Compliance with standards | IEC 61000-4-2 ESD, CE, FCC Part 15 Class B, RoHS |
Safety warning | |
| Warning | Use only with compatible PoE network devices and do not exceed the specified voltage, power, temperature, and cable limits. Disconnect the injector from AC power before installation or maintenance. Protect the device from moisture, ensure adequate ventilation, and do not use if the housing, cable, or connectors are damaged. |
| Height | 44 mm |
| Length | 150mm |
| Weight | 180 g |
| Width | 60mm |
